Top mount or front mount
05-26-2010, 03:10 AM
#1
Registered User
Thread Starter
iTrader: (2)
Join Date: May 2010
Location: Honolulu, HI
Posts: 137
Car Info: 2005 STi
Top mount or front mount

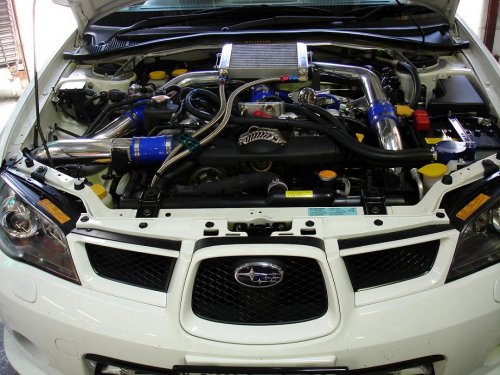

i am planning on buying an oil cooler but i am debating whether to go top mount or front mount, i have done my reserach on the pros and cons on both, but i like to heard your opinions on wich one i should get and why, bellow is a picture of the top mount i was lookin on buying, they also got the same one but with different brakets to go front mounted. what you guys think
Last edited by ricoricanlc; 05-26-2010 at 03:15 AM.
05-26-2010, 03:27 AM
#2
i haven't had much experience with oil coolers but basic science tells me go with a front. my reasoning is because I'd imagine your oil pump will have a tougher time working against gravity versus being almost parallel to the oil pump if not lower. on top of that it only makes sense to have the core being hit straight on with air versus going through the hood scoop hitting it at an angle. i'd imagine you could probably fabricate a diverter but that would be more time and money.
just my 2 pennies
just my 2 pennies
05-26-2010, 12:55 PM
#3
Registered User
iTrader: (14)
Join Date: Apr 2008
Location: Kahaluu, Oahu
Posts: 2,399
Car Info: 07 Sti
Idealy u would minimize the runs of hose between the cooler, your sandwitch adapter, and your remote filter block ( if you have one ). Front mount seems to be the way to go if you are looking for THE BEST. But the top mounted cooler looks sweet!
05-26-2010, 03:37 PM
#5
Registered User
iTrader: (2)
Join Date: Sep 2006
Location: Ewa Beach Hawaii
Posts: 1,049
Car Info: 2015 CWP STI
If you add an oil cooler, you're also increasing oil capacity at the same time. Therefore, as long as the system is filled and closed (leak free), you can run it any way you want. I know Mocal has some oil coolers with built in thermostats to decrease cold oil starts in the morning and also relieve any air pockets in the system. Make sure that if you mount it under the hood scoop, you have some kind of diverter to channel air into it instead of around it.
05-26-2010, 04:16 PM
#6
Registered User
iTrader: (2)
Join Date: Jul 2009
Location: ewa beach, HI
Posts: 130
Car Info: 2005 subaru legacy gt
for an oil cooler it would depend on how is it setup. is it thermo controlled as in oil won't flow to the cooler until a certain temp has been reached or will it always be flowing? problem with the front mount setup is that it may become too cool, moreso a problem in the mainland with colder temps. in hawaii a front mount would be a good way to go but i would have a way to monitor oil temp or just go ahead and have one that is thermo controlled.
05-26-2010, 04:22 PM
#7
Registered User
Thread Starter
iTrader: (2)
Join Date: May 2010
Location: Honolulu, HI
Posts: 137
Car Info: 2005 STi
for an oil cooler it would depend on how is it setup. is it thermo controlled as in oil won't flow to the cooler until a certain temp has been reached or will it always be flowing? problem with the front mount setup is that it may become too cool, moreso a problem in the mainland with colder temps. in hawaii a front mount would be a good way to go but i would have a way to monitor oil temp or just go ahead and have one that is thermo controlled.
05-27-2010, 11:44 AM
#8
Registered User
iTrader: (13)
Join Date: Apr 2008
Location: your bfs car
Posts: 1,459
Car Info: grandmas car
arent you already front mount, luis? you might change to top mount? my setup was top mount for a while...there was less lag...but youre twin scroll, so im guessing you dont have much lag anyway?
