Here's how the transmission effective gear ratio heat map changes assuming the 2007 STI has a 3.54 final drive:
Attached Thumbnails Yep it's Wednesday-tranny-heatmap-2007-354.jpg
IS2Scooby is offline
Reply
Old 10-18-2017, 09:57 AM
  #32
Pr0n King
iTrader: (3)

IS2Scooby's Avatar

Join Date: Nov 2002
Location: The Land of Rocks
Posts: 26,618
Car Info: Turncoat Turbo
Originally Posted by Chris GTO TT
Throw in some spec.B 6spd gear sets into your calculations
The (probably wrong) source that I used for all of my other numbers shows that the USDM Legacy Spec B trans has the same gearing at the JDM Forester STI (which I show in my spreadsheet).
IS2Scooby is offline
Reply
Old 10-18-2017, 09:57 AM
  #33
It's QQ thankyouverymuch
iTrader: (39)

JourdanWithaU's Avatar

Join Date: May 2007
Location: San Jose
Posts: 19,706
Car Info: 2011 SWP WRX Hatch
Originally Posted by Rev. Rob Large
Was it on or off when you nearly hit that tr.. nevermind.

But yes, 2006 STi had 3.54 R180 rear diffs.

See link below. Again.
It was off.

Tell Vlad it's 3.54. He said it was 3.9.
JourdanWithaU is offline
Reply
Old 10-18-2017, 10:01 AM
  #34
Give Me All the Miatas
iTrader: (4)

Chris GTO TT's Avatar

Join Date: Oct 2011
Location: Lincoln, CA
Posts: 3,481
Car Info: 2001 Miata
Originally Posted by IS2Scooby
The (probably wrong) source that I used for all of my other numbers shows that the USDM Legacy Spec B trans has the same gearing at the JDM Forester STI (which I show in my spreadsheet).
Yeah that's not remotely correct lol. The spec.B 6spd has 07 sti 1-4 with a longer 5th and 6th.
Chris GTO TT is offline
Reply
Old 10-18-2017, 10:07 AM
  #35
It's QQ thankyouverymuch
iTrader: (39)

JourdanWithaU's Avatar

Join Date: May 2007
Location: San Jose
Posts: 19,706
Car Info: 2011 SWP WRX Hatch
If you want some gear graph ****...

https://forums.nasioc.com/forums/sho....php?t=2466977


Even mentions that typical cost on used R180 is $400-500. That's the **** I'm having a hard time finding.
Last edited by JourdanWithaU; 10-18-2017 at 10:12 AM.
JourdanWithaU is offline
Reply
Old 10-18-2017, 10:07 AM
  #36
Pr0n King
iTrader: (3)

IS2Scooby's Avatar

Join Date: Nov 2002
Location: The Land of Rocks
Posts: 26,618
Car Info: Turncoat Turbo

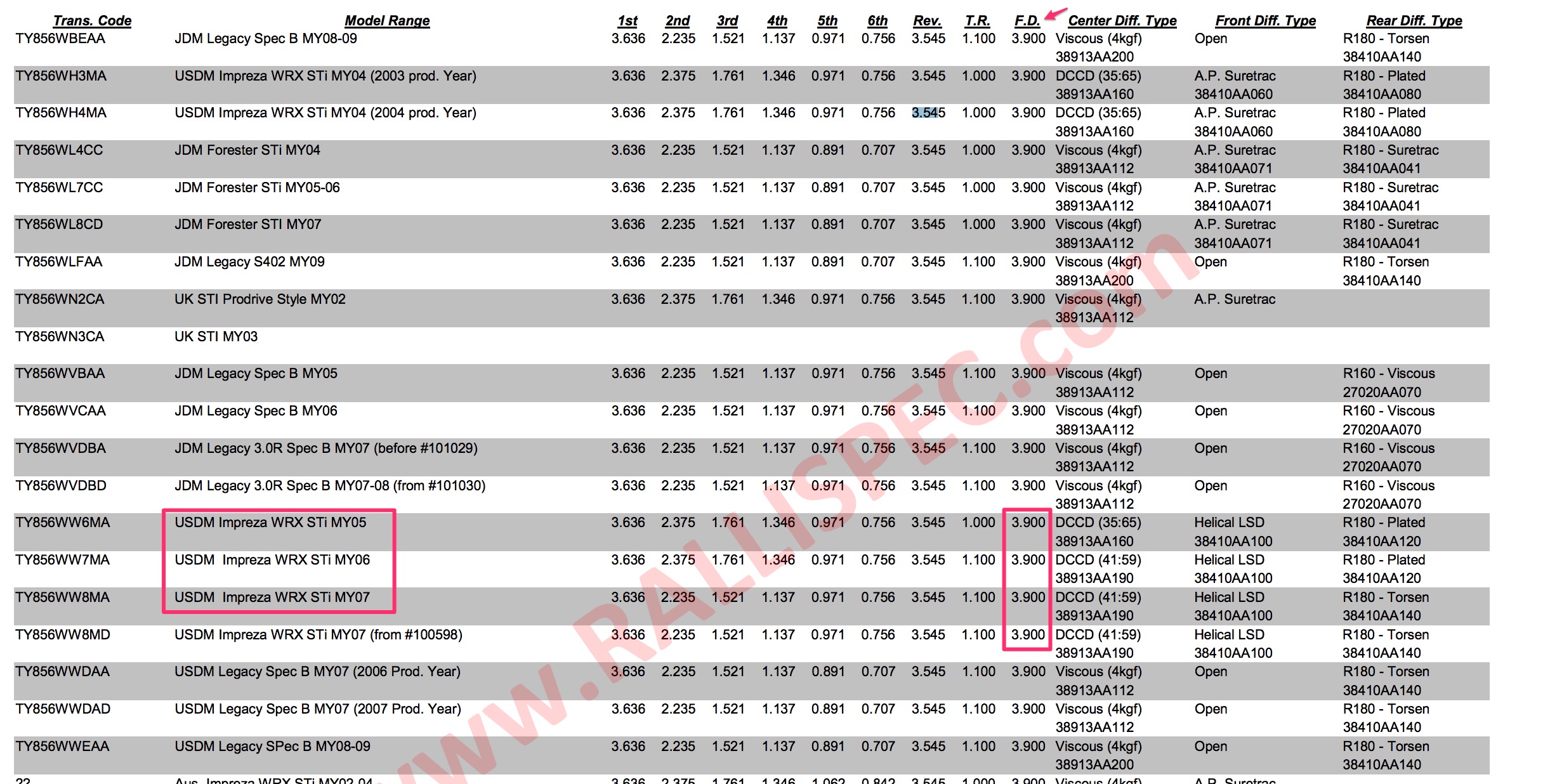

BTW, just because I'm old and probably blind... Where are you guys seeing the Rallipec doc pointing to a 3.54 FD ratio vs. 3.90?

I see a 3.54 reverse transmission gear ratio shown, but not as a final drive.
Attached Thumbnails Yep it's Wednesday-390-fd.jpg
IS2Scooby is offline
Reply
Old 10-18-2017, 10:13 AM
  #37
It's QQ thankyouverymuch
iTrader: (39)

JourdanWithaU's Avatar

Join Date: May 2007
Location: San Jose
Posts: 19,706
Car Info: 2011 SWP WRX Hatch
I never looked at that very closely... It seems that 3.54 FD isn't on the list at all.
Last edited by JourdanWithaU; 10-18-2017 at 10:15 AM.
JourdanWithaU is offline
Reply
Old 10-18-2017, 10:15 AM
  #38
Give Me All the Miatas
iTrader: (4)

Chris GTO TT's Avatar

Join Date: Oct 2011
Location: Lincoln, CA
Posts: 3,481
Car Info: 2001 Miata
Subaru started using a 1.1:1 output on the 6spds so in order for the actual final drive ratio to match the front final drive and the rear final drive are different. Cars with a 3.90 front final drive and the 1.1:1 reduction got a 3.54 rear differential.
Chris GTO TT is offline
Reply
Old 10-18-2017, 10:15 AM
  #39
Pr0n King
iTrader: (3)

IS2Scooby's Avatar

Join Date: Nov 2002
Location: The Land of Rocks
Posts: 26,618
Car Info: Turncoat Turbo
Originally Posted by Chris GTO TT
Yeah that's not remotely correct lol. The spec.B 6spd has 07 sti 1-4 with a longer 5th and 6th.
Here's what the Rallispec doc says re: FSTI and Spec B Ratios:
Attached Thumbnails Yep it's Wednesday-fsti-vs-spec-b.jpg
IS2Scooby is offline
Reply
Old 10-18-2017, 10:16 AM
  #40
Pr0n King
iTrader: (3)

IS2Scooby's Avatar

Join Date: Nov 2002
Location: The Land of Rocks
Posts: 26,618
Car Info: Turncoat Turbo
Originally Posted by Chris GTO TT
Subaru started using a 1.1:1 output on the 6spds so in order for the actual final drive ratio to match the front final drive and the rear final drive are different. Cars with a 3.90 front final drive and the 1.1:1 reduction got a 3.54 rear differential.
That makes sense! I was wondering how they were going to have different front and rear ratios without a constantly slipping center diff...
IS2Scooby is offline
Reply
Old 10-18-2017, 10:17 AM
  #41
Dirty Purple Ukrainian
iTrader: (1)

i<3dirt's Avatar

Join Date: Mar 2010
Location: In the Purple Land
Posts: 4,431
Car Info: SUBARU BROOM
Hello.... Oh... Look squirrell
i<3dirt is offline
Reply
Old 10-18-2017, 10:22 AM
  #42
Give Me All the Miatas
iTrader: (4)

Chris GTO TT's Avatar

Join Date: Oct 2011
Location: Lincoln, CA
Posts: 3,481
Car Info: 2001 Miata
Originally Posted by IS2Scooby
Here's what the Rallispec doc says re: FSTI and Spec B Ratios:
Interesting, I didn't realize the Forester got a 6spd in jdm land.

Either way spec.B/FSTI gearing is my favorite Subaru gearing.
Originally Posted by IS2Scooby
That makes sense! I was wondering how they were going to have different front and rear ratios without a constantly slipping center diff...
Yep rallispec has it listed under the TR column.
Chris GTO TT is offline
Reply
Old 10-18-2017, 10:24 AM
  #43
VIP Member
Thread Starter
iTrader: (4)

newyorkreload's Avatar

Join Date: Dec 2004
Location: 500mi North of Montana. Enjoying free health care.
Posts: 6,781
Car Info: Bugeyed Autowagon
Originally Posted by JourdanWithaU

Front LSD would be neat. I'm not sure I need it to the point of taking apart the transmission to put it in.
Have you considered a 5-speed with low range 2nd gear set?



I hear they are big down-under.
newyorkreload is offline
Reply
Old 10-18-2017, 10:30 AM
  #44
Call me Pebbles
iTrader: (11)

Rev. Rob Large's Avatar

Join Date: Nov 2011
Location: I do all my own physics.
Posts: 5,908
Car Info: Moist
Originally Posted by JourdanWithaU
It was off.

Tell Vlad it's 3.54. He said it was 3.9.
Rev. Rob Large is offline
Reply
Old 10-18-2017, 10:35 AM
  #45
Bad Mudder Trucker

The Law's Avatar

Join Date: Aug 2011
Location: Sacramento, CA
Posts: 4,981
Car Info: 2013 Forester on Towstrap
Originally Posted by newyorkreload
I hear they are big down-under.
Oh I'll show you something big down under
