Project Bugeye stroker

Old 06-04-2016, 02:19 PM
  #16
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
i got tired looking at the debadge trunk so I installed the old subaru emblem
Name:  IMG_1459.jpg
Views: 95
Size:  163.0 KB

Last edited by lugnuts; 06-04-2016 at 05:21 PM.
lugnuts is offline
Old 07-03-2016, 12:24 PM
  #17
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
grimmspeed upipe ceramic coat is coming off so i repainted it with vht paint can ceramic coat
Name:  IMG_1497.jpg
Views: 54
Size:  167.7 KB
not bad .
Name:  IMG_1512.jpg
Views: 54
Size:  125.9 KB
lugnuts is offline
Old 07-03-2016, 12:27 PM
  #18
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
installed the oe headlight assembly . i might put the morrettes for sale.
Name:  367aa2c4-dbc2-478a-a9bc-92f43c9fc5b9.jpg
Views: 53
Size:  310.4 KB
lugnuts is offline
Old 12-19-2016, 08:48 PM
  #19
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
some update . got a 04 wrx heads from a local subaru performance shop and picked up a sti cams .
Name:  IMG_1722.jpg
Views: 54
Size:  161.8 KB
Name:  IMG_1723.jpg
Views: 54
Size:  162.6 KB
lugnuts is offline
Old 12-19-2016, 08:55 PM
  #20
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
still playing with the jdm ej205 .stock bvp cant hold 22 psi , got a dual port turbosmart 50/50 on full recir.
Name:  IMG_1725.jpg
Views: 57
Size:  138.8 KB
lugnuts is offline
Old 12-30-2016, 10:27 PM
  #21
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Getting ready to get the head cleaned and resurface . removing all the valve train components . I need to change couple of valves due to pitting and rust around the valve stem. this build is getting expensive, ouch
Name:  IMG_1768.jpg
Views: 55
Size:  176.7 KB
Name:  IMG_1769.jpg
Views: 51
Size:  67.2 KB
lugnuts is offline
Old 12-30-2016, 10:29 PM
  #22
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Tapped and plugged the sti cams avcs hole.
Name:  IMG_1770.jpg
Views: 54
Size:  67.6 KB
lugnuts is offline
Old 01-02-2017, 12:06 AM
  #23
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
blended the bowl and valve seat overhang .
Name:  IMG_1771.jpg
Views: 54
Size:  165.5 KB
Name:  IMG_1778.jpg
Views: 53
Size:  98.5 KB
Name:  IMG_1777.jpg
Views: 56
Size:  149.0 KB
Name:  IMG_1772.jpg
Views: 53
Size:  115.6 KB
lugnuts is offline
Old 02-05-2017, 07:16 PM
  #24
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Did some port and cleaning on intake and exhaust s20 head. ordered manley springs and retainers. for the the valves I'm getting supertech ss intake and inconel exhaust valve std.
Name:  IMG_1914.jpg
Views: 52
Size:  137.0 KB
Name:  IMG_1923.jpg
Views: 53
Size:  153.5 KB

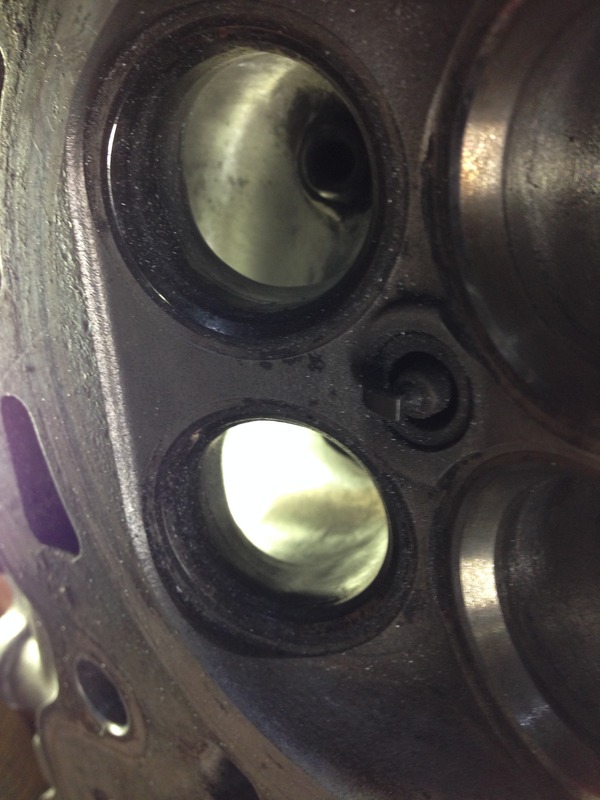

exhaust dog leg.
Name:  IMG_1916.jpg
Views: 54
Size:  109.7 KB
intake
Name:  IMG_1921.jpg
Views: 54
Size:  126.8 KB
lugnuts is offline
Old 02-24-2017, 11:51 AM
  #25
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
gsc viton valve stem seals

Supertech Intake and exhaust valve. nitrated and inconel
Name:  IMG_1788.jpg
Views: 53
Size:  105.8 KB
manley valve springs and retainer on the right, left side oem
Name:  IMG_1787.jpg
Views: 58
Size:  116.2 KB
lugnuts is offline
Old 02-24-2017, 01:37 PM
  #26
If in doubt, FLAT OUT
iTrader: (32)

04GG's Avatar

Join Date: Oct 2010
Location: Nor Cal SJ
Posts: 6,786
Car Info: 04GGB again! and a blue car
Nice.
04GG is offline
Old 03-07-2017, 10:07 PM
  #27
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Originally Posted by 04GG View Post
Nice.
thanks
lugnuts is offline
Old 03-07-2017, 10:21 PM
  #28
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx

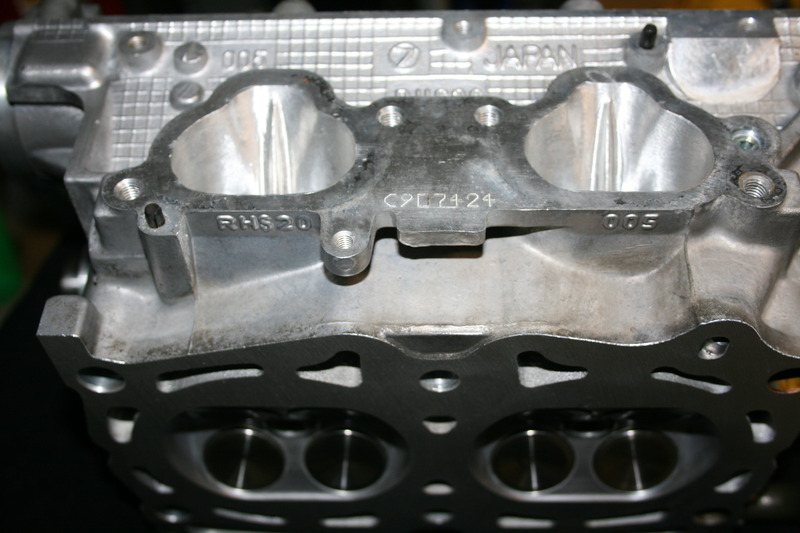

got the heads back from the machine shop. Thanks to Clark auto machine shop, fast turnaround.
Name:  IMG_1792.jpg
Views: 118
Size:  126.5 KB
Name:  IMG_1791.jpg
Views: 53
Size:  114.5 KB

Last edited by lugnuts; 03-07-2017 at 10:29 PM.
lugnuts is offline
Old 03-07-2017, 10:25 PM
  #29
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
machine shop replaced all the valve guides and set valve lash set to .008 intake and .010 exhaust.
Name:  IMG_1797.jpg
Views: 53
Size:  113.7 KB

Last edited by lugnuts; 03-07-2017 at 10:39 PM.
lugnuts is offline
Old 03-07-2017, 10:34 PM
  #30
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
installed oem head gasket.
Name:  IMG_1790.jpg
Views: 71
Size:  102.9 KB

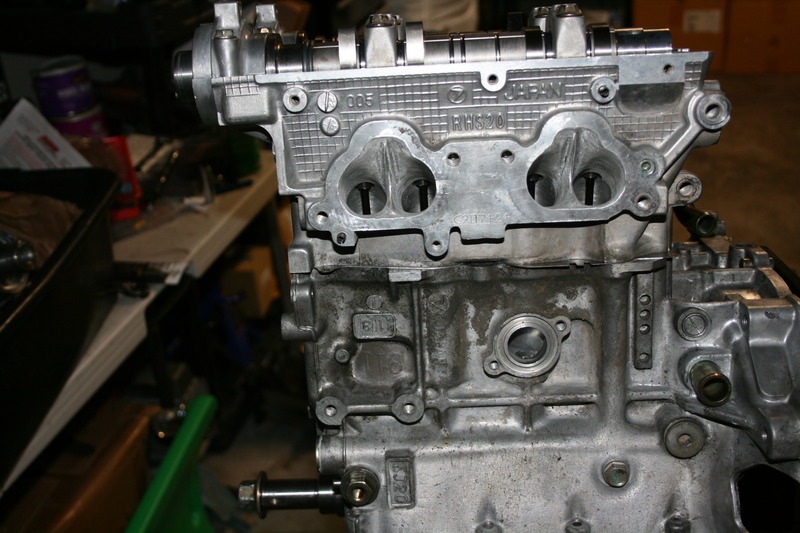

Torque ARP head studs bolts to 50-70-90 ft lbs
Name:  IMG_1799.jpg
Views: 72
Size:  142.6 KB
Name:  IMG_1798.jpg
Views: 53
Size:  118.0 KB
Name:  IMG_1801.jpg
Views: 71
Size:  115.9 KB
Name:  IMG_1803.jpg
Views: 57
Size:  141.6 KB
oem 10mm oil pump with all the bolts
Name:  IMG_1804.jpg
Views: 52
Size:  103.8 KB
need to recheck the valve lash ,but forgot my feeler gauge at work.

Last edited by lugnuts; 03-07-2017 at 10:37 PM.
lugnuts is offline
