Drivetrain Encompasses driveline components such as the torque converter, clutch, transmission, shifter, front and center differentials, driveshaft, rear differential, and axles.

4EAT to 6MT conversion

Old Sep 23, 2008 | 09:30 AM
  #1
svxr8dr's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Dec 2002
Posts: 559
From: The Couve in Washington State
Car Info: 02 BRP 2.5RS-T
4EAT to 6MT conversion

Just wanted to post up some interesting numbers for a direct comparison between a fully built IPT 4EAT and a 6MT from an 06 STI that was just completed.

Using the same tuner (Bobby at PRE), same dyno, and very similar atmospheric/weather conditions.

IPT 4EAT - 300.1hp/317tq
6MT - 366.8hp/383tq

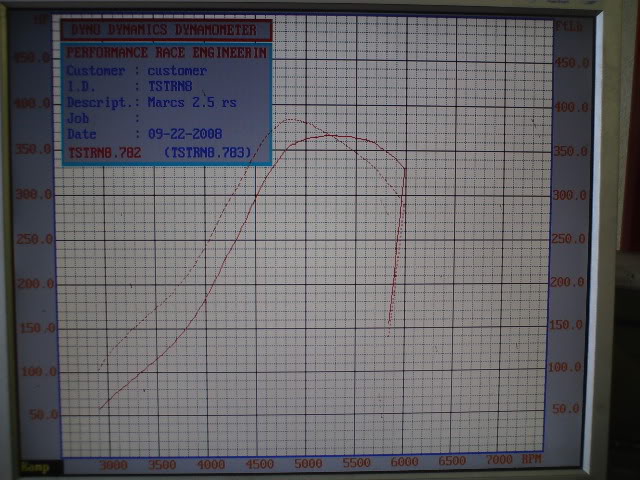

Hope to have the latest dyno chart up very soon.
Old Sep 30, 2008 | 08:38 AM
  #2
svxr8dr's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Dec 2002
Posts: 559
From: The Couve in Washington State
Car Info: 02 BRP 2.5RS-T
Name:  012.jpg
Views: 184
Size:  104.5 KB
Old Sep 30, 2008 | 11:11 AM
  #3
so steezy's Avatar
Registered User
iTrader: (17)

Joined: May 2007
Posts: 3,395
From: FatLaCe
Car Info: *WiDe AnD LoW*
hmmm interesting. so you did the 4eat to 6spd conversion? PMed
Old Sep 30, 2008 | 11:13 AM
  #4
04caliwrx's Avatar
Registered User
iTrader: (6)

Joined: Mar 2006
Posts: 9,581
From: on the way to lake tahoe to shread! turbo beast
Car Info: 2016 WRX, 2014 lifter forester XT, 2005 JDM207 WGN
^ thats what you should do and not get the sti lol
Old Sep 30, 2008 | 11:15 AM
  #5
so steezy's Avatar
Registered User
iTrader: (17)

Joined: May 2007
Posts: 3,395
From: FatLaCe
Car Info: *WiDe AnD LoW*
for real Matt! thats all I really want is the 6spd. driving with a knee brace all day!!
Old Sep 30, 2008 | 01:06 PM
  #6
ApexAssassin's Avatar
Registered User

Joined: Jun 2008
Posts: 842
From: San Jose CA
Car Info: 2005 WRX STi, 1993 240sx (going under knife soon)
A gain of 66hp/lb.ft.? Wow. So to be sure I understand, those power increases were a direct result of merely changing from the 4spd auto to the STi manual 'box? No other changes to to the driveline/motor/etc.? That slushbox seems to have sapped quite a bit of power. What type of dyno was used to record those numbers?
Old Sep 30, 2008 | 01:51 PM
  #7
thekid925's Avatar
Registered User
iTrader: (8)

Joined: Apr 2006
Posts: 546
From: Bay Area
Car Info: 05 obp sti
Originally Posted by ApexAssassin
A gain of 66hp/lb.ft.? Wow. So to be sure I understand, those power increases were a direct result of merely changing from the 4spd auto to the STi manual 'box? No other changes to to the driveline/motor/etc.? That slushbox seems to have sapped quite a bit of power. What type of dyno was used to record those numbers?
bump^^^^
Old Sep 30, 2008 | 01:59 PM
  #8
03_Impreza_Al's Avatar
Registered User
iTrader: (46)

Joined: Nov 2006
Posts: 8,803
From: "Streets Closed, Pizza Boy"
Car Info: www.pinoymamba.tumblr.com
Its a DD similiar to a mustang...
Old Oct 16, 2008 | 04:53 PM
  #9
svxr8dr's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Dec 2002
Posts: 559
From: The Couve in Washington State
Car Info: 02 BRP 2.5RS-T
Correct on the DD for Dyno, and no other mods were done...only the transmission swap.
Old Oct 16, 2008 | 07:10 PM
  #10
mo & jo's Avatar
Registered User

Joined: Apr 2008
Posts: 512
From: HAWAII-GOTTA HAVE DA SUBYS!!!
Car Info: 05 rs 2.5 and 03 wrx bug eye
how much did it cost?
Old Nov 30, 2010 | 05:02 PM
  #11
svxr8dr's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Dec 2002
Posts: 559
From: The Couve in Washington State
Car Info: 02 BRP 2.5RS-T
********Impreza is going up for sale. Entertaining serious offers prior to going worldwide live with the sale.************
Old Nov 30, 2010 | 05:07 PM
  #12
03'EyeBug's Avatar
Registered User
iTrader: (17)

Joined: Nov 2009
Posts: 2,501
From: CA
Car Info: WRB 03(sold) AW 03(sold) 02 Taco!
Originally Posted by so steezy
for real Matt! thats all I really want is the 6spd. driving with a knee brace all day!!
I love my 6sp, do it!
