Good bye OEM Turbo Oil Drain, Hello -10AN

Old 06-29-2011, 01:53 PM
  #31
Registered User
iTrader: (7)

SkizzDawg's Avatar

Join Date: Mar 2011
Location: The Bay Area
Posts: 2,576
Car Info: 2006 STI
How much for One of those sexy pieces?
SkizzDawg is offline
Old 07-30-2011, 02:49 PM
  #32
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti
Here is my new custom radiator I made in solidworks. 1/8" aluminum lasered and cnc bent endtanks. Machined inlets and outlets, machined filler neck. The bung I dont have yet as I spaced on that part. All the fittings will be welded from the inside for a nice clean sleek install. Core is from a high end radiator supplier in the U.S and not some cheap chinese core. Anyways here it is mocked up and ready for welding once i get the bung for the drain setup.

Name:  IMG_5493.jpg
Views: 216
Size:  116.0 KB
Name:  IMG_5486.jpg
Views: 216
Size:  229.1 KB
Name:  IMG_5484.jpg
Views: 217
Size:  90.8 KB
Name:  IMG_5480.jpg
Views: 219
Size:  90.3 KB
kmurphy is offline
Old 07-30-2011, 03:02 PM
  #33
iClub Silver Vendor
iTrader: (12)

EQ Tuning's Avatar

Join Date: Mar 2003
Location: 631 Railroad Ave. Fairfield, CA
Posts: 8,228
Car Info: A Laptop
purrrty
__________________
Equilibrium Tuning
631 Railroad Ave. Suite A
Fairfield, CA 94533

707-425-2137

www.EQTuning.com

EQT Facebook
EQ Tuning is offline
Old 07-30-2011, 03:16 PM
  #34
Registered User
iTrader: (14)

mokeOne's Avatar

Join Date: Jan 2006
Location: Washington
Posts: 852
Car Info: 05 wrb wrx wagon
damn, that oil fitting is clean! i want!
mokeOne is offline
Old 07-31-2011, 08:57 AM
  #35
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti
thanks
kmurphy is offline
Old 07-31-2011, 09:10 AM
  #36
Churro Aficionado
iTrader: (38)

stupidchicken03's Avatar

Join Date: Feb 2008
Location: IG - @thomas.teammoist
Posts: 54,257
Car Info: IG - @TEAMMOISTOFFICIAL
That is nice lookin
stupidchicken03 is offline
Old 08-18-2011, 12:31 PM
  #37
Registered User
iTrader: (11)

queeg9k's Avatar

Join Date: Jan 2008
Location: Cheesesteakville
Posts: 6,740
Car Info: 05 wrx wagon, 90 celica alltrac, 66 mustang
kmurphy judging by your pics you seem like the right person to ask about welders. I would like to get into welding and would like some input on what kind/style to get. I am leaning more towards a TIG as I hear they make some of the cleanest welds. However they are supposed to be harder to learn right? Wire feed MIG should be easier to learn but they spatter and you have less control?

Me and a friend want to go halves on one we have about $1200 to spend-what are some good brands to look at and some features we need or don't need.

Thanks for any input you can give on the matter.
queeg9k is offline
Old 08-18-2011, 12:43 PM
  #38
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti
I just sold my lincoln precision tig 185 for 1200 with a big bottle. I suggest learning tig welding. I think everything else is just a "waste" of time. Tig is all about practice and training your body to control 3 things, where your tungsten is at, your foot adjusting your amperage, and your other hand placing the filler. At first its kinda mess but after awhile everything flows together. Everyone seems to prefer miller for tig welders especially if you go the dyansty route which i will when i have 6k sitting in my pocket, but i loved my lincoln precision tig unit. I have 2 syncrowaves that i use at work, and i prefer the lincoln unit to them. The lincolns you can find for that 1,200-1,500 range.

Once you have a welder you'll find a million uses for it.
kmurphy is offline
Old 08-18-2011, 02:28 PM
  #40
Registered User
iTrader: (4)

Volkey's Avatar

Join Date: Feb 2011
Location: Livermore, CA
Posts: 1,002
Car Info: A Dirty Car
Originally Posted by queeg9k View Post
kmurphy judging by your pics you seem like the right person to ask about welders. I would like to get into welding and would like some input on what kind/style to get. I am leaning more towards a TIG as I hear they make some of the cleanest welds. However they are supposed to be harder to learn right? Wire feed MIG should be easier to learn but they spatter and you have less control?

Me and a friend want to go halves on one we have about $1200 to spend-what are some good brands to look at and some features we need or don't need.

Thanks for any input you can give on the matter.
Mig with an argon/oxygen tank and you will be putting out clean, smooth welds, great to learn on (((oh, and no splatter either)))
Volkey is offline
Old 08-18-2011, 02:31 PM
  #41
General Pimpin'
iTrader: (7)

OneManArmy's Avatar

Join Date: May 2003
Location: Knee deep in beer. subabrew crew, ca.
Posts: 23,005
Car Info: MY04 aspen wrx wagon.
Originally Posted by queeg9k View Post
kmurphy judging by your pics you seem like the right person to ask about welders. I would like to get into welding and would like some input on what kind/style to get. I am leaning more towards a TIG as I hear they make some of the cleanest welds. However they are supposed to be harder to learn right? Wire feed MIG should be easier to learn but they spatter and you have less control?

Me and a friend want to go halves on one we have about $1200 to spend-what are some good brands to look at and some features we need or don't need.

Thanks for any input you can give on the matter.
If you're looking for a used welder try jalopy journal. Those dudes are always selling welders.
OneManArmy is offline
Old 08-18-2011, 03:09 PM
  #42
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti
theres almost always splatter with mig. Mig is so easy to learn its not worth learning first atleast to me. I choose to learn tig welding first. Even though i rarely and i mean rarely pick up a mig, its easy to do because you apply the same things you learned with tig to mig.

With tig i can weld stainless, inconel, titanium, aluminum, mild steel all with the same torch and tungsten, all i need is different filler. Try that with a mig.

If you want something with versatility and produces clean nice welds than go with tig.
kmurphy is offline
Old 08-19-2011, 12:13 PM
  #43
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti
you might also want to look for a used miller diversion, its a nice little tig. Its a inverter based machine so it draws little power and is used on 110v plug. Its the nice of a small suitcase so its easy to tote around. Can be had for a little over 1k.
kmurphy is offline
Old 08-20-2011, 06:40 PM
  #44
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti

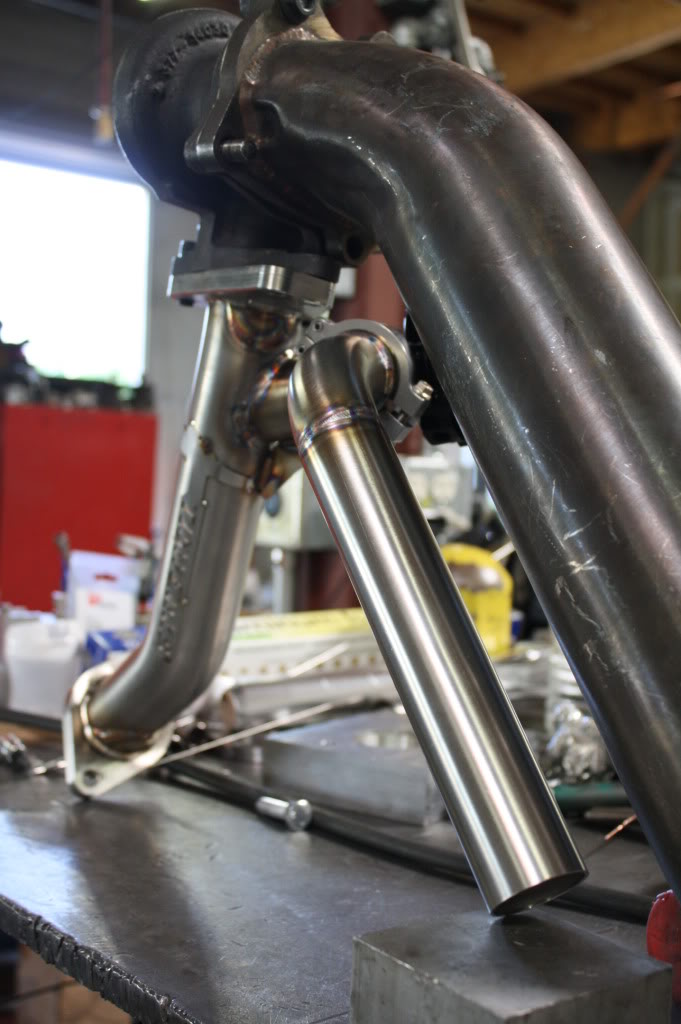

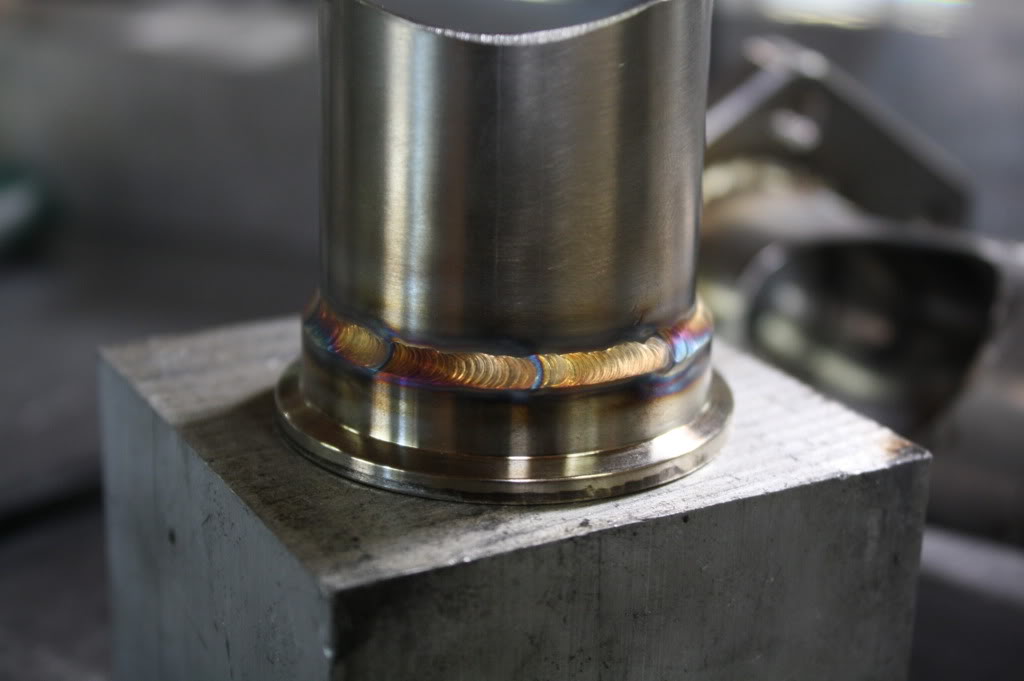

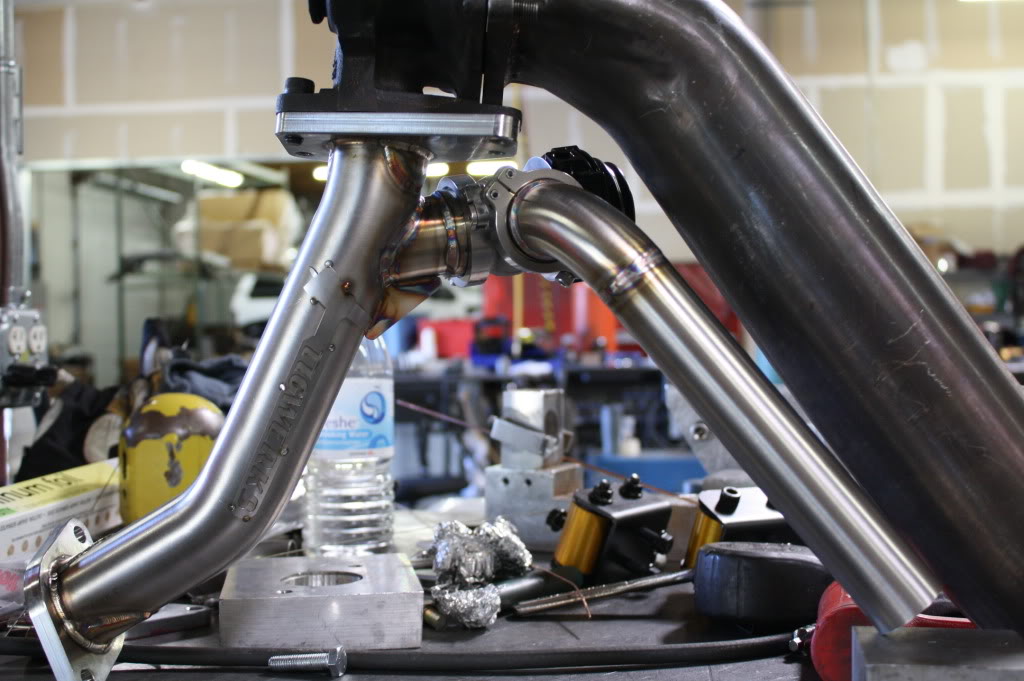

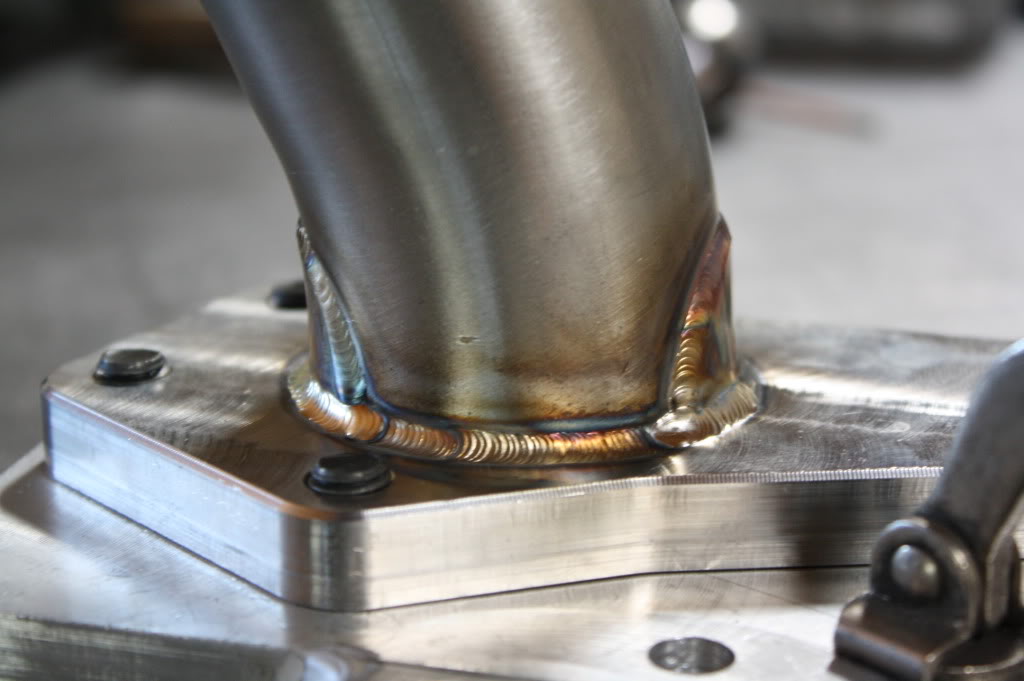

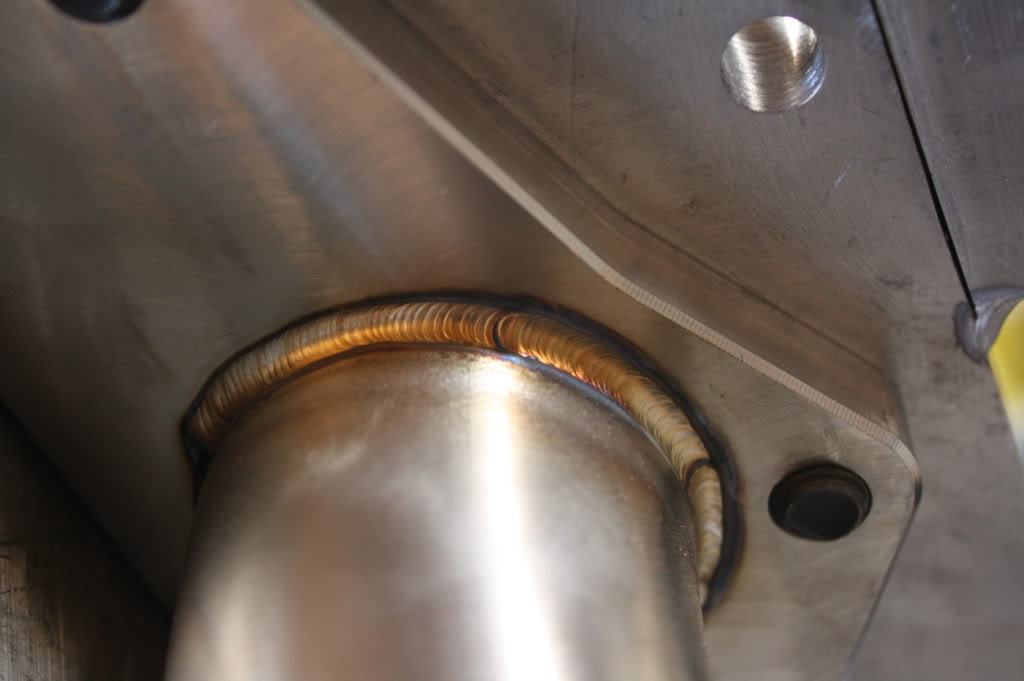

Name:  IMG_5519.jpg
Views: 218
Size:  51.9 KB
Name:  IMG_5534.jpg
Views: 214
Size:  65.4 KB
Name:  IMG_5513.jpg
Views: 217
Size:  55.4 KB
Name:  IMG_5544.jpg
Views: 216
Size:  85.7 KB
Name:  IMG_5543.jpg
Views: 218
Size:  105.5 KB
kmurphy is offline
Old 08-20-2011, 06:43 PM
  #45
Registered User
Thread Starter
iTrader: (4)

Join Date: Dec 2004
Location: roseville, ca
Posts: 970
Car Info: 06 obp sti
and thats why you learn tig welding tig > everything else
kmurphy is offline
