Audio whine/ pop

Old 01-24-2013, 12:57 PM
  #1
Registered User
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Location: Bay Area CA
Posts: 351
Car Info: 03 wrx
Audio whine/ pop

I'm hoping some of you audio guru's can help me. Recently, my stereo started having a whining noise. It's a Kenwood deck running through an amp to all the speakers. It's a high pitched whine, only audible with the stereo on and varies with engine speed. It's had a whine, but only when I was on an AM radio station. Now it's doing it all the time, regardless of if it's on radio, cd, or aux.. My sub would also pop when I turn the car on/off. Any idea's on how to fix this? I know next to nothing about audio equipment so any help is appreciated.
MarvZz is offline
Old 01-24-2013, 01:33 PM
  #2
Registered User
iTrader: (5)

Join Date: Jun 2010
Location: SAC
Posts: 145
Car Info: 2009 WRX
Ground Loop. Check your grounds behind the deck and at the amps and make sure they're solid. Check the solder joints on your wire harness (if it's crimped, solder them). Make sure your connectors aren't loose and how did you ground your amps? Make sure that you sanded down paint to bare metal.

Since you're amped, you may want to route your RCA's differently to keep them away from power wires, or even upgraded your RCAs and then reroute.
Cabo251 is offline
Old 01-24-2013, 01:36 PM
  #3
Registered User
iTrader: (4)

Shayhan27's Avatar

Join Date: Aug 2008
Location: Livermore
Posts: 2,127
Car Info: LUMPY CGM 05 WRX
Your ground has probably come loose. You are throwing stray power around and it is being picked up by your speakers.
Shayhan27 is offline
Old 01-24-2013, 02:38 PM
  #4
Registered User
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Location: Bay Area CA
Posts: 351
Car Info: 03 wrx
Thanks guys. I will check the grounds and update.
MarvZz is offline
Old 01-24-2013, 02:39 PM
  #5
Registered User
iTrader: (3)

Irish_car_B0mb's Avatar

Join Date: Mar 2008
Location: Upper North Bay
Posts: 6,973
Car Info: '15 LE STI, '06 WRX White Wheeled Wagon, '06 B9
either your ground is loose, or what was doing it in my buddies car was he had the power and rca running down the same side in his car. we ran one down the passanger side, one down the driver and problem is gone.
Irish_car_B0mb is offline
Old 01-24-2013, 03:50 PM
  #6
Registered User
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Location: Bay Area CA
Posts: 351
Car Info: 03 wrx
i'll take a look at that too. i'm not sure how it's routed, but if i can't move it, is there anything i could use to insulate it?
MarvZz is offline
Old 01-25-2013, 06:04 PM
  #7
Registered User
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Location: Bay Area CA
Posts: 351
Car Info: 03 wrx

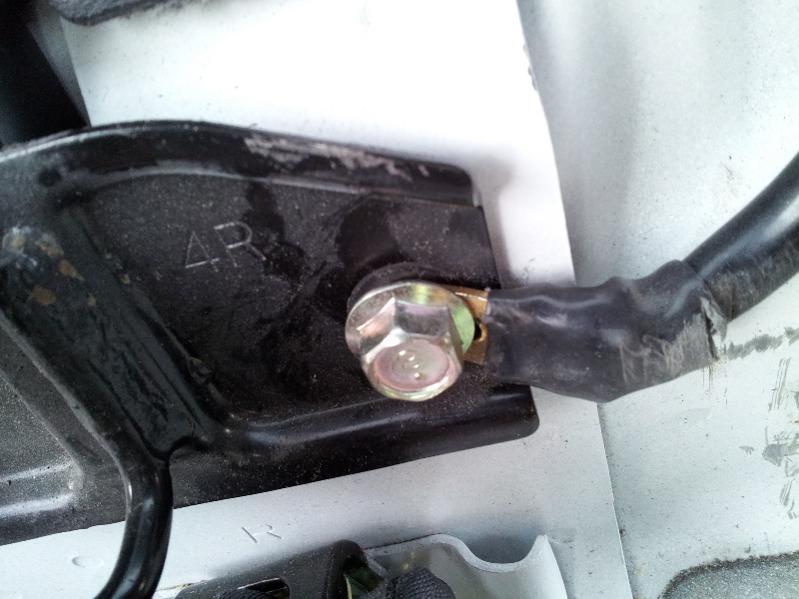

This is where the amps were grounded. I think I need to find a new ground point because both surfaces are painted. Thoughts or suggestions?

Audio whine/ pop-forumrunner_20130125_170035.jpg
MarvZz is offline
Old 01-25-2013, 06:25 PM
  #8
Registered User
iTrader: (19)

CHESTON's Avatar

Join Date: Aug 2006
Location: Campbell
Posts: 1,441
Car Info: AW Pig-STI
I learned the long way that what you're showing is NOT an effective ground. As others have already said it needs to be on UNPAINTED metal.

So you could still bolt it to the same place as shown. Just remove that black plate and get some sandpaper right near the bolthole. Sand it down to bare metal. Attach the grounds and then the metal bracket on top (hope it fits)

Last edited by CHESTON; 01-25-2013 at 06:28 PM.
CHESTON is offline
Old 01-25-2013, 07:03 PM
  #9
Registered User
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Location: Bay Area CA
Posts: 351
Car Info: 03 wrx
Originally Posted by CHESTON
Sand it down to bare metal. Attach the grounds and then the metal bracket on top (hope it fits)
Did that and hooked everything back up. Gonna test it out over the weekend.
MarvZz is offline
Old 01-25-2013, 09:49 PM
  #10
Nobody likes the tuna here
iTrader: (51)

Heedz's Avatar

Join Date: Feb 2010
Location: Somewhere San Mateo County, Inside A 911 Ambulance
Posts: 19,781
Car Info: 03 SRP WRX Street Class Prepped, 17 Chevy Duramax
REdo your grounds, make sure your RCA's are not ran near grounds or power.

The sub poppying is normal unless its a huge one where it hurts your ears.
Heedz is offline
