1986 Subaru Leone STi TURBO

Old 02-23-2013, 01:48 PM
  #31
Registered User
iTrader: (4)

Volkey's Avatar

Join Date: Feb 2011
Location: Livermore, CA
Posts: 1,002
Car Info: A Dirty Car
Drop dead gorgeous! How long have you been working on this project?
Volkey is offline
Old 02-23-2013, 04:33 PM
  #32
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
Originally Posted by de_engineered View Post
Pretty frikin dope, bravo good sir.

I'm really interested in how well the air-water intercooler works for you (and having the BOV built on the tank, awesome idea). Conceptually I've always found it intriguing and it's a rare setup if nothing else.
my friend Franz came up with that idea on mounting the BOV right on the intercooler pretty slick idea for sure. he is also my tuner [email protected] and said the awic setup is working just perfect and can handle more which this summer i got a bigger turbo coming... ill be at 400whp with the same setup on his dyno dynamics dyno, should be all right.

i have lots of room under the hood to get a even bigger one if need but i should be ok.



Originally Posted by Volkey View Post
Drop dead gorgeous! How long have you been working on this project?

thank you, i got the car 2 years ago... so last summer i sold my 1993 legacy turbo i built up legacycentral bbs • View topic - Nico's 93 Legacy Turbo... i was going to use the stuff from the Legacy in the Leone but a buddy really wanted so i just sold it.

so this past summer i built the car in 2 months ! i had to wait for parts, if i had all the parts ready to go i could have built in 1 month flat. i only had it out for the end of fall so didnt even get to really drive it that much.

this summer ill bring it to the track and really beat on it to see how she handles feels













think i found my 17" wheels ?????? by my calculator calculations it looks like they will fit. that means i have to get a set of STi Brembos up front.

if they don't fit guess ill have to put them for sale

S202 STi RAY'S VOLK FORGED 5x100 17x7.5JJ ET 53

Name:  15400775-B182-448B-BC32-80FD2D7C3681-4459-000003495433BDBE_zps2abd65f2.jpg
Views: 304
Size:  354.9 KB

SUBARU TECNICA INTERNATIONAL STi

Name:  45EF8935-30AE-459F-A00E-E71F1CA8FC3B-4459-00000349656BA67A_zps2ff37cf3.jpg
Views: 232
Size:  354.6 KB

FORGED MADE IN JAPAN
Name:  0A5DEDF5-0206-4F5E-94D0-0094ECAB294B-4459-000003496A6F523E_zpsf623edfb.jpg
Views: 229
Size:  346.5 KB


Name:  D1EBA157-A09D-495C-BFCB-BA3F3DD1BE9A-4459-000003494B709B81_zpsaa38292d.jpg
Views: 246
Size:  356.5 KB
Nico Leone is offline
Old 02-23-2013, 10:58 PM
  #33
aka FlukeWRX
iTrader: (6)

JelloChex's Avatar

Join Date: Feb 2006
Location: East Bay
Posts: 3,657
Car Info: '03 WRX WRB Sedan
Wow, seriously crazy setup. Great job!
JelloChex is offline
Old 02-23-2013, 11:34 PM
  #34
Registered User
iTrader: (2)

TheFozz's Avatar

Join Date: Oct 2011
Location: S.F.BayArea
Posts: 2,694
Car Info: Whatever The Lot Provides ;)
Just an idea here, take your original front seats to an upholstery shop and see if it's worth un-stitching the original fabric and then use that as the center sections (inserts) for one of the sets of Recaro's. The lettered stitching saying "Recaro" is easy enough to replicate.

Then you'd not only have a real set of Recaro's you'd also have a matching set of center inserts.

While not necessarily "Factory Recaro" per-se, if done well and the original seat fabric's in good enough shape, will make for a nicely kitted out interior. I've seen this done only about 6-8 times in my entire life and each time it came out really well. That or if you can find someone in the know, any, and I mean pretty much any woven fabric can either be duplicated or there's even some bolts of original Recaro fabric still in storage somewhere.
TheFozz is offline
Old 02-24-2013, 12:48 AM
  #35
Registered User
iTrader: (5)

paterick's Avatar

Join Date: Dec 2011
Location: SJ / Bay Area / CA
Posts: 247
Car Info: Roxie.
whaaat? this is maaad cool, I bet beaut hauls ****!
paterick is offline
Old 02-24-2013, 03:09 PM
  #36
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
Originally Posted by flukewrx View Post
Wow, seriously crazy setup. Great job!
so far so good little more power and i think i can say its nuts, thank you



Originally Posted by TheFozz View Post
Just an idea here, take your original front seats to an upholstery shop and see if it's worth un-stitching the original fabric and then use that as the center sections (inserts) for one of the sets of Recaro's. The lettered stitching saying "Recaro" is easy enough to replicate.

Then you'd not only have a real set of Recaro's you'd also have a matching set of center inserts.

While not necessarily "Factory Recaro" per-se, if done well and the original seat fabric's in good enough shape, will make for a nicely kitted out interior. I've seen this done only about 6-8 times in my entire life and each time it came out really well. That or if you can find someone in the know, any, and I mean pretty much any woven fabric can either be duplicated or there's even some bolts of original Recaro fabric still in storage somewhere.
i was think of doing this but i didnt want to cut up the only seats left on the plant of this car in that colour. it crossed my mind so many times but i didnt have the heart, they only have 20,000kms on them and are brand new.

i only need the recaros as track seats so i found two nice fabrics to match really well that it will look all right i think.

ill just put the factory seats away and save them for one day when i swap it back to stocki guess


Originally Posted by paterick View Post
whaaat? this is maaad cool, I bet beaut hauls ****!
its not bad its really quick, tricky to control but very fun. when i add the 400whp turbo it should start to get allot more fun
Nico Leone is offline
Old 02-26-2013, 02:18 PM
  #37
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
so this is a rear 1986 Subaru control arm, when adding wide wheels with low offsets like Subaru loves it can rub on the rear arm on this old car.



here you can see how much room i have to play if I put on a 17x7.5JJ ET53 stock subaru wheels that can fit Brembo brakes, also the front is not like this its normal Subaru style up front on this car so any wheel is ok






so what have I come up with ! simple easy is flip the arm around to the other side ! looks like the little Leone can put the rubber down to the ground now, 225/45/17 and i could use STi Brembo brakes now for the extra stopping power.





Hey !!!!! why stop there ???? Lol... lets pull out a STi 22B BBS wheel and see if we can add the monster wheels on the Leone so 235/40/17 17x8.5JJ ET48 even fits !! guess its time to show some people how its done on the track this year !








now i am really excited to pull the car out and see if this all works out perfect.
Nico Leone is offline
Old 02-26-2013, 05:04 PM
  #38
Registered User
iTrader: (6)

04caliwrx's Avatar

Join Date: Mar 2006
Location: on the way to lake tahoe to shread! turbo beast
Posts: 9,581
Car Info: 2016 WRX, 2014 lifter forester XT, 2005 JDM207 WGN
Wow that's got some mad money into it!! I bet it's an awesome car!
04caliwrx is offline
Old 02-26-2013, 06:10 PM
  #39
Registered User
iTrader: (2)

TheFozz's Avatar

Join Date: Oct 2011
Location: S.F.BayArea
Posts: 2,694
Car Info: Whatever The Lot Provides ;)
Originally Posted by Nico Leone View Post






now i am really excited to pull the car out and see if this all works out perfect.
Trust me, it won't work that way for long. You have the backing nuts put into shear now and they'll separate from the main plate. See if you can use maybe a 4mm-8mm longer set of bolts and put a set of nuts on the outer side to put it all back into strength again. Better yet, cut off the old nuts and make an appropriate spacer with enough surface area to put it back to the same strength.

If ya really want to get fancy make a forward arm that's doglegged so the plate ends up in a similar spot on the tube and doesn't mess with the tracking.

[/ArmChair Engineer/Pro-Wrench]
TheFozz is offline
Old 02-27-2013, 04:00 PM
  #40
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
Originally Posted by 04caliwrx View Post
Wow that's got some mad money into it!! I bet it's an awesome car!
its getting there, bit more messing around with and will figure it all out.


Originally Posted by TheFozz View Post
Trust me, it won't work that way for long. You have the backing nuts put into shear now and they'll separate from the main plate. See if you can use maybe a 4mm-8mm longer set of bolts and put a set of nuts on the outer side to put it all back into strength again. Better yet, cut off the old nuts and make an appropriate spacer with enough surface area to put it back to the same strength.

If ya really want to get fancy make a forward arm that's doglegged so the plate ends up in a similar spot on the tube and doesn't mess with the tracking.

[/ArmChair Engineer/Pro-Wrench]

yep thats what i was going to use longer bolts and nuts, i got excited that maybe it could be so simple as this idea.

cutting the nuts off is another good idea, and making a spacer for that. i dont think there is that much stress or flex in that area.

the little arm is used for Toe in Toe out and for camber lol... the old cars sure has some interesting stuff.


right now its just a idea, when the car comes back out will see how well it works in action.



also i think maybe with those wide big wheels i have to watch out for the suspension also, I am sure pushing it to the max now.
Nico Leone is offline
Old 03-15-2013, 09:43 AM
  #41
Registered User
iTrader: (1)

BangBiscuit's Avatar

Join Date: Jan 2013
Location: Sacramento
Posts: 98
Car Info: 2005 Subaru
Wow. Awesome.
BangBiscuit is offline
Old 03-19-2013, 05:23 PM
  #42
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
Originally Posted by BangBiscuit View Post
Wow. Awesome.

thanks























well spring is near they say, but lets get real its still going to snow like today lol, so in the mail today some new toys have come in.

5x100 16x7 et46 Volk GramLights 57s.... good for maybe 225/50/16 I hope I can make it fit with out rubbing.

Name:  2CAADC19-C22F-436A-9C6C-ABC90007782E-4469-000001DA38471A82_zpsb4312356.jpg
Views: 254
Size:  312.7 KB





ST132594S000 JDM STi Magnesium valve covers.

"The STI Magnesium Valve Rocker Cover Set Impreza GD GG is a high spec part available from this exclusive company and come ready for the street/circuit/windy scene/drift. Not only significantly lightening the engine, the visual effect of having this in your engine room will surly scare any competitor who sneaks a peak under your bonnet." LOL

Name:  20EC834C-F193-4FCF-B829-7D05B25DC77F-4469-000001D9F7F9A94D_zps5a3eba48.jpg
Views: 232
Size:  319.3 KB

Name:  90E54C92-27C0-4405-BFB9-9EFA10880FDB-4469-000001DA019C63DA_zps95a8c7cf.jpg
Views: 230
Size:  338.7 KB

Name:  196D18D9-CBA5-432D-AE75-0E9E227F1796-4469-000001DA09DF5D0D_zps83edeae4.jpg
Views: 231
Size:  374.7 KB



and the part that makes the scaring of the competitor really happen !

Borg Warner AirWerks S300SX FMW 0.91 A/R (maximum spool) dividided twin scroll.

Name:  050EDB96-AE4C-427B-B714-903D5C4BE5AB-4469-000001DA14FC61D8_zps9ed3c930.jpg
Views: 235
Size:  315.3 KB

Name:  8D434AC8-7918-4FC9-9535-0258EE78A7D3-4469-000001DA1A6AC831_zps07137af5.jpg
Views: 230
Size:  361.6 KB

Name:  37FD9CA3-6909-4307-800E-996CFA4DE80A-4469-000001DA1FB16D0E_zpsb426abf9.jpg
Views: 237
Size:  355.9 KB

Name:  8E50436A-7211-4E57-9865-97BBE843CB57-4469-000001DA24A80ACE_zpsd5c6cf41.jpg
Views: 231
Size:  350.5 KB
Nico Leone is offline
Old 03-20-2013, 11:52 AM
  #43
General Pimpin'
iTrader: (7)

OneManArmy's Avatar

Join Date: May 2003
Location: Knee deep in beer. subabrew crew, ca.
Posts: 23,005
Car Info: MY04 aspen wrx wagon.
Your pocket book runs deep.


Sick build.
OneManArmy is offline
Old 03-23-2013, 05:03 PM
  #44
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
Originally Posted by OneManArmy View Post
Your pocket book runs deep.


Sick build.

thanks man

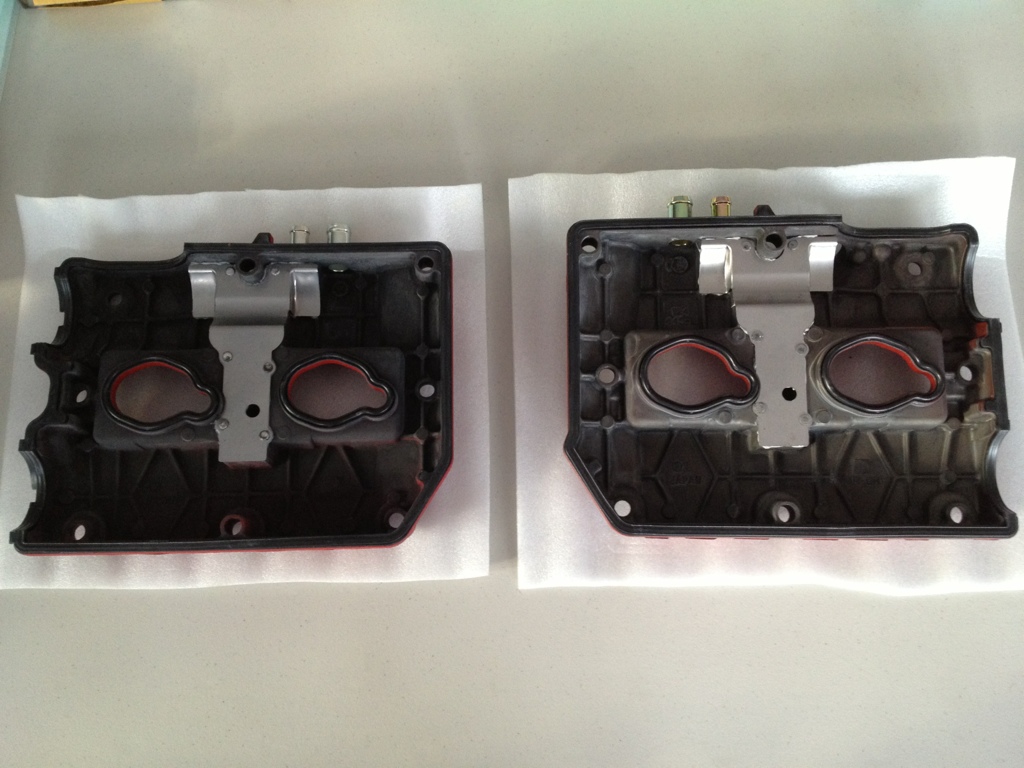

pretty crazy how the STi magnesium valve covers are so dark inside

Name:  4DAAED6D-C871-44F8-B42F-D80B6B225D00-2649-000001BAFF6C5BFF_zpsf4213568.jpg
Views: 228
Size:  230.7 KB

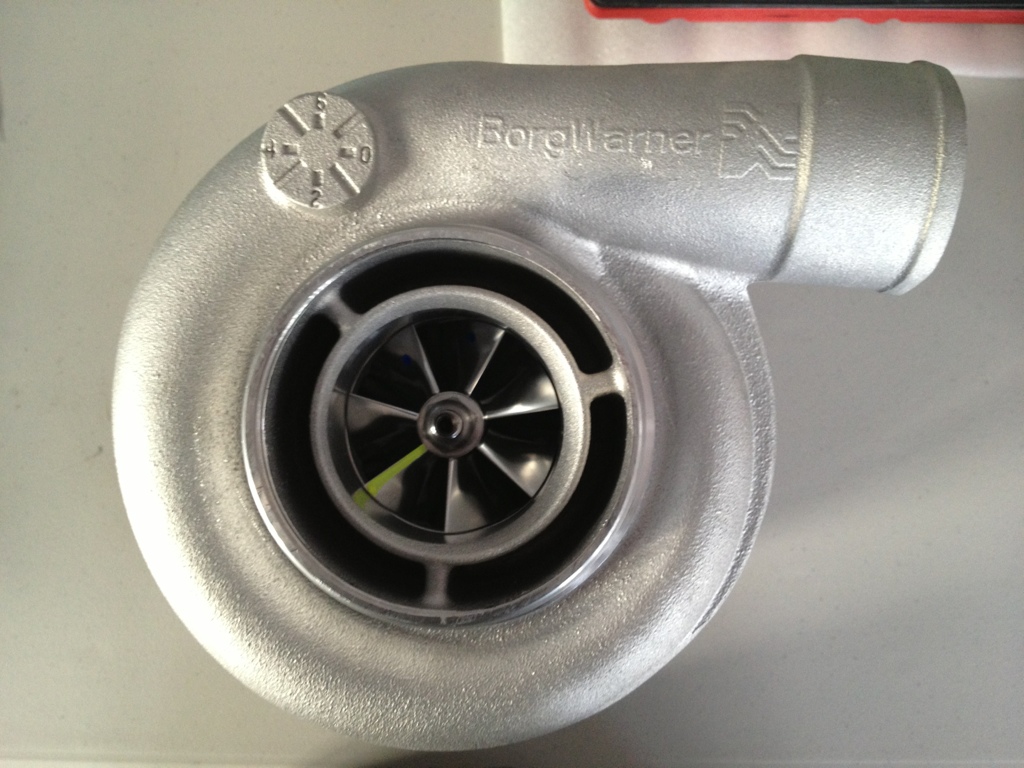

also need add a air port fitting for the s300sx it was same for my s200sx, ill add it where that top bump with numbers are on top left corner.

Name:  3EB4994C-C6F8-4368-9277-CE97D3C98AA8-2649-000001BB05975E8E_zpsb52b153f.jpg
Views: 232
Size:  262.3 KB
Nico Leone is offline
Old 04-09-2013, 06:57 PM
  #45
Registered User
Thread Starter

Join Date: Feb 2013
Location: Hamilton Ontario Canada
Posts: 95
Car Info: 1986 Subaru Leone STi TURBO
Turbo Seal Clamps

Constant Tension Turbo Seal Clamps - With a convoluted heat-treated band that provides spring-like tensioning effects for thermal cycling hose applications.

Murray’s unique “DUAL BEAD SHIELD” concentrates band-sealing pressure, increasing performance up to 30% compared to standard smooth liners. Flanged edges protect soft hose compounds from abrasion and wear.



when you need the best like the real real races cars !! then these are the best !

Constant Tension Clamps





Name:  DD522CAF-776F-4D28-817D-3B80463573DE-983-00000074DA973963_zps8f1d2db5.jpg
Views: 240
Size:  350.0 KB
Nico Leone is offline
