where is the restritor pill located at? tia



by the wastegate...search scoobymods.com



hey apprecite the help youve been giving me man. awsome!!



i have an extra brand new one from subaru, if u want one.



i still cant figure out if i have my pill or not. i know its in a vacum hose near the turbo right? can someone help me out, thanks!!



pictures would be great!!



are u only boosting 8-10 psi? if u are, then its probability u don't have one. i'll find some pix for some better reference.

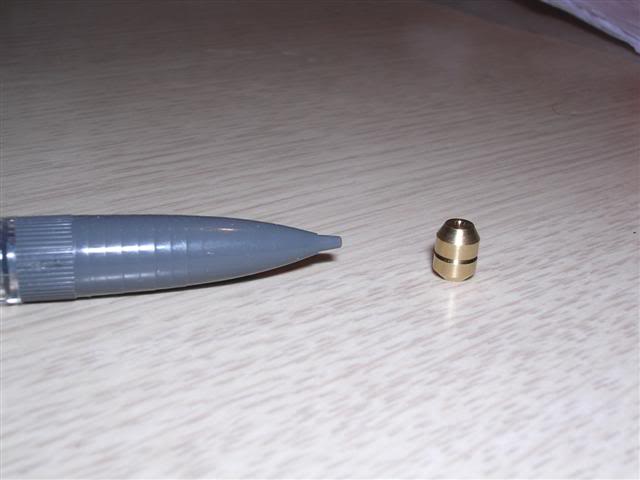

this is how it looks like. it's actually called a brass orfice.


it should be inside of the hose between the "T" fitting and the turbo, where it says orfice.


hope that helps.



hey thanks for the pic. well i i checked out to see if i was missing it andi do have it inside the hose. im just going to bring it in the dealership, next appointment is in 3 weeks . thanks for everyones help.



u should have the 1/8 connector. if u have the 3/16 connector, that is probably the reason why u could be boosting only 8-10psi. once u get the 1/8, then disconnect your negative terminal, pump the brake and reconnect the battery to reset the ecu.
