oil catch tank
Thread Starter
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
oil catch tank
Hey guys... Just got my new SARD oil catch tank today :banana:... though the instructions are in Japanese they have some pictures...
I know we've gone over this numerous times before regarding oil catch tank installs but when I look at the pictures it doesn't resemble any type of oil catch tank install that I've seen

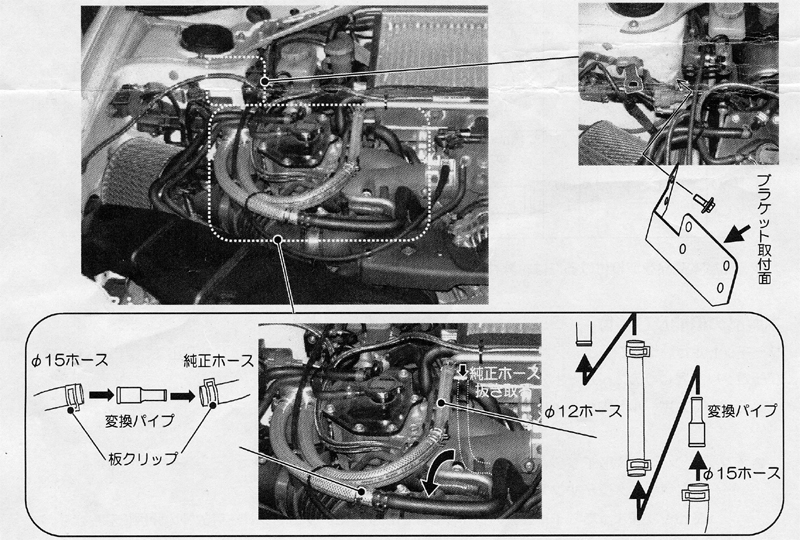

here's a picture from the instruction manual... Any help would be greatly appreciated...I know that this is technical and should be in the technical forum but i thought I'd ask local help first... I'll also post this in the tech forum later...
Jon
I know we've gone over this numerous times before regarding oil catch tank installs but when I look at the pictures it doesn't resemble any type of oil catch tank install that I've seen
here's a picture from the instruction manual... Any help would be greatly appreciated...I know that this is technical and should be in the technical forum but i thought I'd ask local help first... I'll also post this in the tech forum later...
Jon
Last edited by iNfEk; Jan 13, 2004 at 05:11 PM.
Thread Starter
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
according to our japanese advisor here at work... I'd have to disconnect the exsisting hose on the 90° bent line and replace it with the small hose that came with the kit.. then put a pipe increaser to accomidate the 15mm hose and connect it to the right side of the tank.
next take the hose that I just took off and add a pipe increaser and connect it to the left side of the tank...
Any thoughts on this?
Jon
next take the hose that I just took off and add a pipe increaser and connect it to the left side of the tank...
Any thoughts on this?
Jon
Registered User
Joined: Nov 2002
Posts: 167
From: so cali
Car Info: platinum rex wagon
i don't get it, wha's your trouble? those are nice pictures/instructions.
it appears that the hose sized into the can is bigger then the factory hose, so they supply you w/adapters
it appears that the hose sized into the can is bigger then the factory hose, so they supply you w/adapters
Registered User
iTrader: (2)
Joined: Nov 2002
Posts: 1,644
From: Lawrence, Kansas
Car Info: 19' Impreza Sport Manual / 99 Miata / 13' OB
Thread Starter
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
it's exactly what you did on your install peaty... that's why I was saying that there isn't a problem...thank you!
Jon
Jon
Registered User
iTrader: (2)
Joined: Nov 2002
Posts: 1,644
From: Lawrence, Kansas
Car Info: 19' Impreza Sport Manual / 99 Miata / 13' OB
I'm glad I saw your pics because it confirmed what I did too. At first it looked very confusing. Seems to work ok, I've had it on for a while. There is some oil in the lines but not enough in the CC to read on level hose.
Thread Starter
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
Originally posted by Peaty
I'm glad I saw your pics because it confirmed what I did too. At first it looked very confusing. Seems to work ok, I've had it on for a while. There is some oil in the lines but not enough in the CC to read on level hose.
I'm glad I saw your pics because it confirmed what I did too. At first it looked very confusing. Seems to work ok, I've had it on for a while. There is some oil in the lines but not enough in the CC to read on level hose.
this is a confirmed way to install a oil catch can on a GDA/GDB impreza... I wasn't sure just like you but after seeing your install and confirming that someone else had used this method I was relieved...Also since it came from SARD it's gotta work
Jon
