maybe help?
Just installed my blitz ebc and everything feels wrong.ok i ran a T to the controller and stepping motor from manifold after throttle body and ran the out from stepping motor to wastegate.Now my boost gauge will only read up to 1/2 the boost even at full boost.also in 4 gear on the highway at 117 mph hit 18.9psi according to ebc display. Any advise would be useful thanks Will
04-02-2003, 05:15 PM
#4
Where is my beer?
iTrader: (1)
Join Date: Nov 2002
Location: San Diego
Posts: 4,677
Car Info: NSX, G35
"English **********er, ... do you speak it!?"
sorry, I had to.
Seriously though, I have no idea what you just said.
I am pretty sure with all the Blitz ebc's, installation is the same, ... but what Blitz ebc do you have?
- The Blitz soleniod should be connected between the vacuum port on the turbo compressor housing, and the wastegate. I believe the "IN" port on the soleniod connects to the compressor, and the "OUT" port to the wastegate.
- The 'teflon hose' from the Blitz control unit should probably be "T"d into the vacuum hose going to the blow off valve. It is best to buy a "T" and some extra vacuum line to do this.
That is the spot where you'd want to read boost from, for a boost gauge.

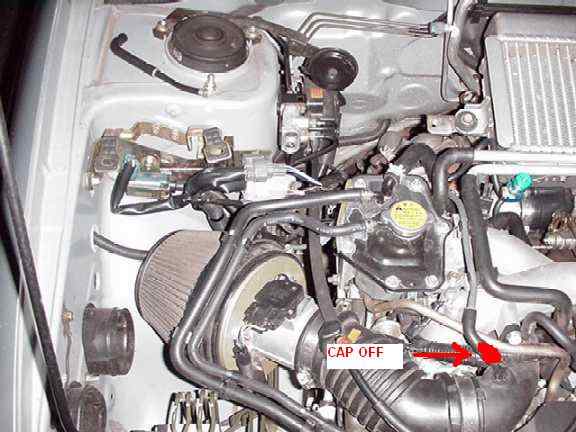

You also need to make sure you 'cap' off the connection on the plastic intake pipe (which has a vacuum line running to the stock soleniod, which you don't need).

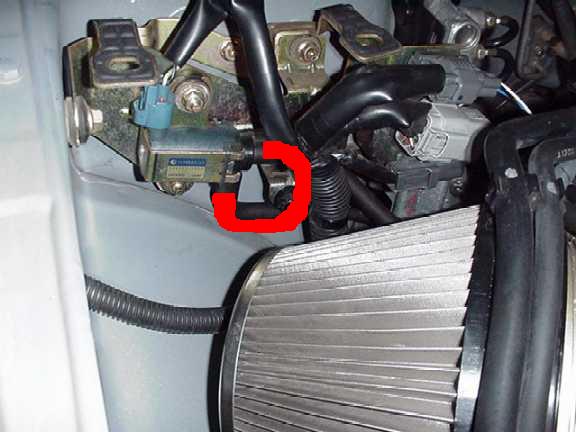

You should also connect a vacuum line, or cap off, the stock soleniod ports. Usually we just connect a vacuum hose to one port and then into the other, esentially inabling it to 'read' anything. Imagine in the pic below that the red line is a vacuum line, that's what you want to do.
sorry, I had to.
Seriously though, I have no idea what you just said.
I am pretty sure with all the Blitz ebc's, installation is the same, ... but what Blitz ebc do you have?
- The Blitz soleniod should be connected between the vacuum port on the turbo compressor housing, and the wastegate. I believe the "IN" port on the soleniod connects to the compressor, and the "OUT" port to the wastegate.
- The 'teflon hose' from the Blitz control unit should probably be "T"d into the vacuum hose going to the blow off valve. It is best to buy a "T" and some extra vacuum line to do this.
That is the spot where you'd want to read boost from, for a boost gauge.
You also need to make sure you 'cap' off the connection on the plastic intake pipe (which has a vacuum line running to the stock soleniod, which you don't need).
You should also connect a vacuum line, or cap off, the stock soleniod ports. Usually we just connect a vacuum hose to one port and then into the other, esentially inabling it to 'read' anything. Imagine in the pic below that the red line is a vacuum line, that's what you want to do.
04-02-2003, 05:33 PM
#7
Registered User
Thread Starter
iTrader: (3)
Join Date: Jan 2003
Location: eureka ca
Posts: 256
Car Info: 2003 sy wrx
thanks for the help.Just to clarify things i have the T to the teflon hose from right by the turbo inlet hose from intercooler. out goes directly to wastegate.So what you're saying is take out the T to the teflon hose and run it from the blowoff valve hose.And put a T between the wastegate and by the turbo inlet hose?By the way i already capped that hose out of intake off.
04-02-2003, 08:44 PM
#9
Where is my beer?
iTrader: (1)
Join Date: Nov 2002
Location: San Diego
Posts: 4,677
Car Info: NSX, G35
Originally posted by yellow03 rex
thanks for the help.Just to clarify things i have the T to the teflon hose from right by the turbo inlet hose from intercooler. out goes directly to wastegate.So what you're saying is take out the T to the teflon hose and run it from the blowoff valve hose.And put a T between the wastegate and by the turbo inlet hose?By the way i already capped that hose out of intake off.
thanks for the help.Just to clarify things i have the T to the teflon hose from right by the turbo inlet hose from intercooler. out goes directly to wastegate.So what you're saying is take out the T to the teflon hose and run it from the blowoff valve hose.And put a T between the wastegate and by the turbo inlet hose?By the way i already capped that hose out of intake off.
and the line from the wastegate should go to the "OUT" port on the soleniod.
and the line from the turbo compressor side should go to the "IN" port on the soleniod.
No 'T' anywhere off of the wastegate.
04-03-2003, 09:50 AM
#10
Registered User
Thread Starter
iTrader: (3)
Join Date: Jan 2003
Location: eureka ca
Posts: 256
Car Info: 2003 sy wrx
well ok

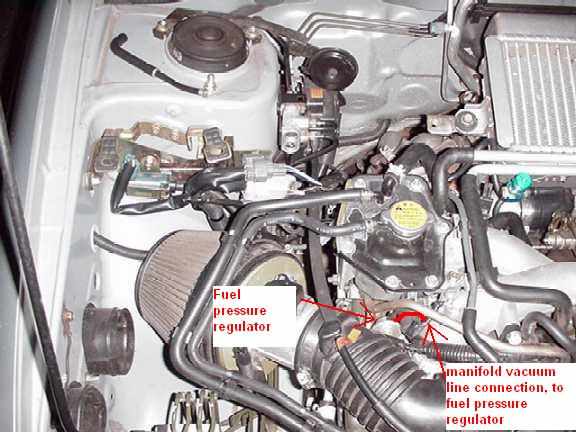

hey thanks i called Jon last night and he gave me a few tips.I got the solenoid connected right but the hose into the controller is still not reading correct.I have the line connected to the hose next to the hose next to tthe red wire on the alternator on the manifold
04-04-2003, 12:26 AM
#13
Registered User
iTrader: (33)
Join Date: Nov 2002
Location: Boostin' troubles away - 4EAT Memories 12.87@103.2
Posts: 10,454
Car Info: 51E LHD V7 STI (2.0)
I took a look at his boost controller setup tonight and discovered that his controller (grey box that everything connects too) internally was not connected so he had a major boost leak! So I took that cover off reconnected everything swapped out some hoses with some hoses I had and everythings running smoothly now
Jon
Oh yeah.. He bought the boost controller from Farid so he didn't get everything. He had to supply his own hoses to install the EBC and they were the wrong sizes. I'm glad that I kept the left overs I had
Jon
Oh yeah.. He bought the boost controller from Farid so he didn't get everything. He had to supply his own hoses to install the EBC and they were the wrong sizes. I'm glad that I kept the left overs I had
