have any before and after pics?

i'd love to see that



factory EJ255 head

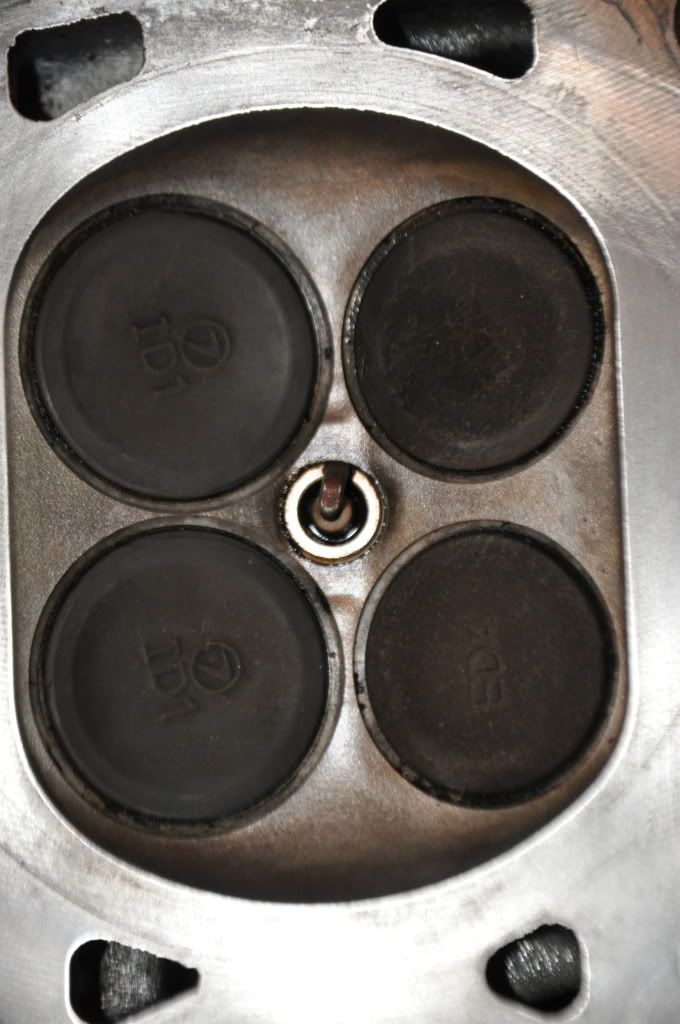

2.0 head after a little dremel work, not completed


bad angle on the 2nd picture, but trust me....it's almost the same



can you please post some pics of the heads after the completed dremmel work?



that is the only picture that i have.



it isnt cleaned or polished yet in that picture,but you can see the general idea...looks 95% the same as the professional CNC job. the curve just isnt as perfectly smooth.



Yeah there really is no comparison.

the pics speak for themselves.

EQ tuning heads:




VS:





yeah, the prices arent the same, but in this case i guess you get what you pay for.



It doesnt look as pretty, but as far as performance, is it really worth all that money for the probable and likely 5hp gain over a dremel job?

If money is not an issue, sure go for the CNC job. It is better no doubt.

Dremel work it isnt a job for the artistically challenged, but if you can draw or sculpt it's kinda the same idea. It is just recreating what you see or invision.



i think the peace of mind knowing you have consistent compression ratios across the board speaks volumes for the CNC job. not to mention the proper quench, and combustion volumes. oh and having even pressures on the headgasket in each cylinder is nice too. so yeah.

taking a dremmel to your heads is about as redneck / ghetto as you can get.



haha. i am redneck/ghetto.

but i bet there is less than .25cc variation between all the cylinders. Changing one of your spark plugs to one 3mm longer will make a bigger difference.

I have personally assembled over 100 engines, no, i wouldnt eyeball it and guess on bearing clerances, head bolt torque, or gear lash. but this is one area that it really makes a very minor difference.

the subaru ecu is very intuitive and addaptive, I doubt it minds the .25cc difference.

for example, if you blow a headgasket and machine just one head like .012 inch. it will learn it and run just fine.



Will I need to CNC if I buy these Heads....

http://cgi.ebay.com/ebaymotors/ws/eB...#ht_500wt_1182



I think those are NA heads..... Subaru NA DOHC heads were never known to flow well from what I remember. Those are most likely the heads found on the phase 1 DOHC EJ251.



what he said ^

i'd avoid 2.5 NA heads Lorenzo.

just pick up a set of 2.0 heads, have them properly machined, throw in some STi cams and call it a day



i have never researched or messed with those heads.

i would imagine that they have a large quinch area and possibly smaller chamber.

that would be great if you re running low boost and want quick spool. but if you are going for more top end power, not so much.

I have read that those heads flow better than the usdm wrx heads though.

but i dont think that your intake/ tgv bodies will bolt up to those heads.

ask if they are phase 1 or 2.


or at least get some more pics from multiple angles



Absolutely truth. I did what I did knowing that 99% of the time I drive like a grandma. I wanted that 1% to be lots of fun and was willing to risk it. 15k miles and counting so not too shabby! 110k total.

This is it. Besides, drop in pistons don't increase power. They increase reliability. With the difference in turbo size, it's understandable. Also, the dyno at RADS doesn't load very well. I've noticed that spool especially isn't correct most of the time. His setup is spooling near 3500, mine spools at 4200. an extra 1k rpm of power is worth it. Like he said, my turbo is roughly 2lb/min larger compressor. Also, TD05 exhaust housing vs 7cm^2. I still thought it would make 340, but like he said, Chris tunes conservatively.



I thought you wore slacks!

lol
