Dreams of the GF8 becoming reality!
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
Jon the pic you posted of the rear subframe is different from the 97 OBS. as Shaggy stated the mounting holes of the subframe on the OBS has like a rubber bushing it mounts to. IMO it maybe a better design than the newer models just because it can flex under impact vs just being on a solid mount. or maybe cause its an OBS its designed that way so you can go off road. oh well, who knows (shrugs shoulders) you would definetly have to see it.
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
take a picture and post it up. i'm interested
the picture i posted was from a 02 imperza chassis i was just wondering if it was the same or similar.
Jon
the picture i posted was from a 02 imperza chassis i was just wondering if it was the same or similar.
Jon
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
Water Pump Install
Here's a pic of the block with old water pump removed:
New water pump:

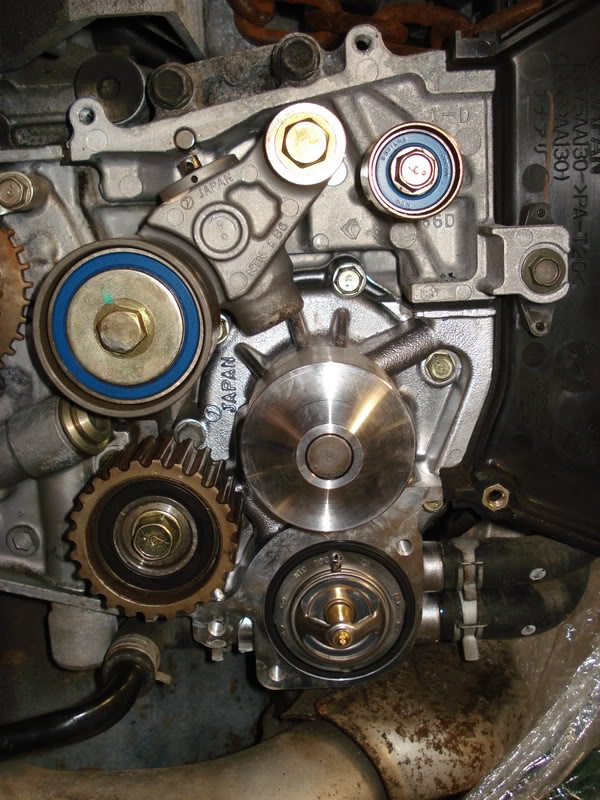

New water pump installed on the block:
The water pump was a straight forward swap I think it was only easy because I have the engine out. With the engine installed I can see where it can get really tight especially when re-installing the timing belt.
New water pump:
New water pump installed on the block:
The water pump was a straight forward swap I think it was only easy because I have the engine out. With the engine installed I can see where it can get really tight especially when re-installing the timing belt.
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
Timing belt install

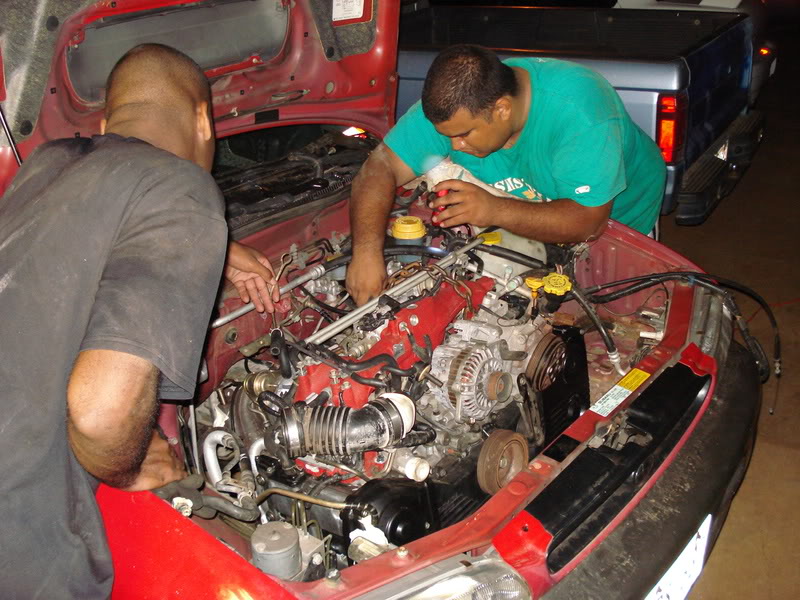

Here is Dave installing the timing belt:
Timing belt in............. FINALLY!
The timing belt was a pain in the booty. First keeping the timing marks aligned on the drivers side was fun. Where it is aligned is actually opening valves so with that be said it makes it very easy to pop out of place because of the valve springs. Second the timing belt is a snug fit even with the tensioner compressed down and pinned. After trying multiple ideas Shaggy made a call to his buddy which in turn he recommend removing one of the idlers. Once that was removed the belt finally went on. Again this seemed fairly easy once we knew the trick and once again this would have been a pain in the booty if the motor was in the car.
Oh and if you don't have a cam gear wrench............hang it up, you are going to have a tough time doing this.
THANKS JON!!
Stay tuned we should have this bad boy fired up sunday!
Timing belt in............. FINALLY!
The timing belt was a pain in the booty. First keeping the timing marks aligned on the drivers side was fun. Where it is aligned is actually opening valves so with that be said it makes it very easy to pop out of place because of the valve springs. Second the timing belt is a snug fit even with the tensioner compressed down and pinned. After trying multiple ideas Shaggy made a call to his buddy which in turn he recommend removing one of the idlers. Once that was removed the belt finally went on. Again this seemed fairly easy once we knew the trick and once again this would have been a pain in the booty if the motor was in the car.
Oh and if you don't have a cam gear wrench............hang it up, you are going to have a tough time doing this.
THANKS JON!!
Stay tuned we should have this bad boy fired up sunday!
Last edited by 4080wrx; Jul 11, 2008 at 11:05 AM.
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
Registered User
iTrader: (2)
Joined: Sep 2006
Posts: 1,049
From: Ewa Beach Hawaii
Car Info: 2015 CWP STI
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
project on standby till i return from training in the deserts of cali. please stay tuned
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
Thread Starter
VIP Member
iTrader: (38)
Joined: Apr 2003
Posts: 6,196
From: Rockin my 6th Suby in the 808 in the past decade!
Car Info: 01 Impreza RSTi, 08 Evo MR, and 13 XV
I will be back this weekend.........Dave and Shaggy are you ready? how does later this week look for you guys? anyone else want to help?
