Header to Up Pipe Differences in Bore Diameter
So, I picked up a Gruppe-S unequal length header and a Grimmspeed up pipe a while back. Haven't installed them yet, waiting for all exhaust-associated parts to be in place.
Recently I was checking how well they fit up and, well, they don't. The bolt holes align, but there's an ugly step between the header and the up pipe, of about a fifth of an inch.
So I'm here poling for solutions. I looked around a while before posting this, and seems getting a Helix (says 2.25" diameter though...) or an Invidia uppipe was the only real option people had sugguested. I haven't found any specs on the Invidia diameter though.
Get a different header to match the up pipe?
Get a different up pipe to match the header?
Spooling/HP implications for them both?
Skip the header, and just PnP my stock manifold? (I've the tools for it)

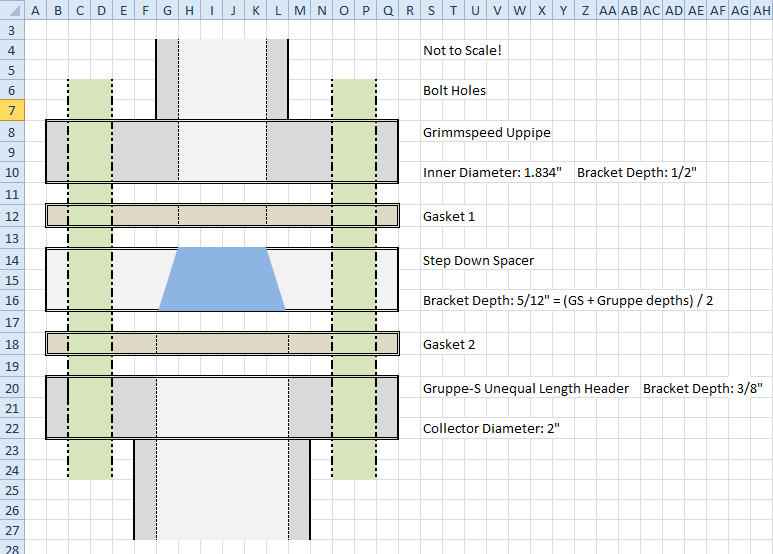

I had otherwise been thinking about getting a step-down funnel spacer machined, as seen as the graphic herein. Too much work, another tentative point of leak/failure?
Recently I was checking how well they fit up and, well, they don't. The bolt holes align, but there's an ugly step between the header and the up pipe, of about a fifth of an inch.
So I'm here poling for solutions. I looked around a while before posting this, and seems getting a Helix (says 2.25" diameter though...) or an Invidia uppipe was the only real option people had sugguested. I haven't found any specs on the Invidia diameter though.
Get a different header to match the up pipe?
Get a different up pipe to match the header?
Spooling/HP implications for them both?
Skip the header, and just PnP my stock manifold? (I've the tools for it)
I had otherwise been thinking about getting a step-down funnel spacer machined, as seen as the graphic herein. Too much work, another tentative point of leak/failure?
Last edited by de_engineered; 02-18-2013 at 05:34 PM.
#3
Call me Pebbles
iTrader: (11)
Join Date: Nov 2011
Location: I do all my own physics.
Posts: 5,908
Car Info: Moist
I was picking the brains of the guys at Grimmspeed about port matching the up-pipe and collector, and they didn't have any real answers for me. I like where your head is on this, though.
#4
VIP Member
Thread Starter
iTrader: (24)
Join Date: Sep 2012
Location: San Jose
Posts: 1,642
Car Info: 2000 Legacy GT, 2000 Echo 1989 Camry All-Trac
Good to know I'm barking up the right tree though.
#7
Registered User
iTrader: (17)
Join Date: Oct 2008
Location: Bay Area
Posts: 2,178
Car Info: 07lmtd 6spd wrx eq tuned
I was in the same situation, only I didn't buy the header yet. I was worried that the up pipe would not fit my header... So I went with a header up pipe from the same manufacturer. Perfect match!
#8
VIP Member
Thread Starter
iTrader: (24)
Join Date: Sep 2012
Location: San Jose
Posts: 1,642
Car Info: 2000 Legacy GT, 2000 Echo 1989 Camry All-Trac
Alternatively, I guess there's those all-in-one header and up pipes (you know, single piece), but those get $$$ iirc... [Edit: err, is that what you meant?]
When I got each of the pipes seperately, it didn't cross my mind that they'd not evenly match up
#9
Registered User
iTrader: (17)
Join Date: Oct 2008
Location: Bay Area
Posts: 2,178
Car Info: 07lmtd 6spd wrx eq tuned
Groupe S v1... It's not one piece it's Seperate but same manufacturer. It's a 3bolt up pipe which is hard to find a replacement but IAG performance started making them
Last edited by Javirex23; 02-18-2013 at 11:22 PM.
#10
VIP Member
Thread Starter
iTrader: (24)
Join Date: Sep 2012
Location: San Jose
Posts: 1,642
Car Info: 2000 Legacy GT, 2000 Echo 1989 Camry All-Trac
For me though it amounts to a parts hunt then. And like I asked earlier, iirc there are spooling implications to a wider up pipe. I might get a TD05 turbo down the road, but it's the stock TD04 til then, and a big bore pipe will have diminishing returns with that.
#11
Registered User
iTrader: (2)
Join Date: Nov 2009
Location: Dublin, CA
Posts: 369
Car Info: 02 WRX sedan
why a funnel shaped spacer instead of just grinding a ~10 degree angle into the flange?
stuffing ~1/2" of gaskets + spacer between the flanges isn't going to be fun if you ever remove one or the other and not both at the same time. Also consider that you're essentially putting in 1/2" into what many consider to be the most leak prone joint in the whole exhaust. I suspect that might cause issues.
Die grinder and an hour is what I'd do, at most.
stuffing ~1/2" of gaskets + spacer between the flanges isn't going to be fun if you ever remove one or the other and not both at the same time. Also consider that you're essentially putting in 1/2" into what many consider to be the most leak prone joint in the whole exhaust. I suspect that might cause issues.
Die grinder and an hour is what I'd do, at most.
#12
VIP Member
Thread Starter
iTrader: (24)
Join Date: Sep 2012
Location: San Jose
Posts: 1,642
Car Info: 2000 Legacy GT, 2000 Echo 1989 Camry All-Trac
why a funnel shaped spacer instead of just grinding a ~10 degree angle into the flange?
stuffing ~1/2" of gaskets + spacer between the flanges isn't going to be fun if you ever remove one or the other and not both at the same time. Also consider that you're essentially putting in 1/2" into what many consider to be the most leak prone joint in the whole exhaust. I suspect that might cause issues.
Die grinder and an hour is what I'd do, at most.
stuffing ~1/2" of gaskets + spacer between the flanges isn't going to be fun if you ever remove one or the other and not both at the same time. Also consider that you're essentially putting in 1/2" into what many consider to be the most leak prone joint in the whole exhaust. I suspect that might cause issues.
Die grinder and an hour is what I'd do, at most.
Is it just wiggling everything together that would be cause for grief?
I do have a die grinder, just want to see if there's other solutions yet.
