Ecutek Tuning Results
Hi guys,

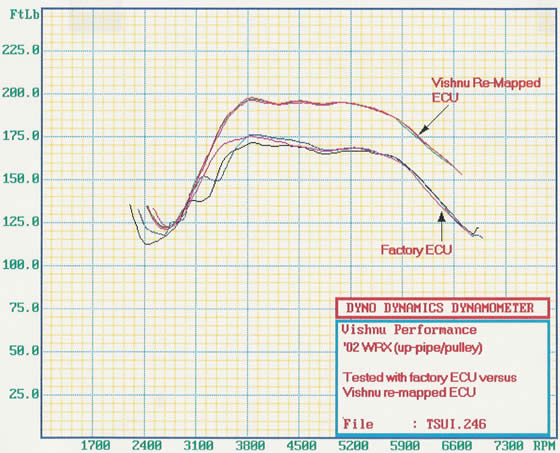

Been living on the dyno for quite some time now. While they are not quite yet final, we came up with some nice ECU calibrations for our Stage Zero kit. The car represented in the following graphs is a 2002 WRX with our pulley and up-pipe. Running on 91 octane. With the stock ECU, after many consecutive learning pulls, it makes a repeatable 179-181 wheel hp. Interesting to notice that the first few runs were in the 170-175 wheel hp range. Gotta love auto-tuning that actually works.

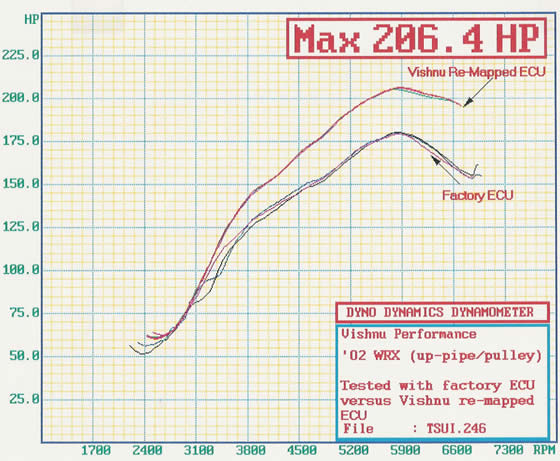

After re-mapping fuel, timing, boost targets, knock correction, temp compensation, etc., tables, the car ended up making a nice and repeatable 204-207 wheel hp with significant torque gains across the board. Boost levels were almost unchanged up until 5200rpm. By 5900rpm, the remapped ECU raised boost by just 1 psi (11psi vs 10psi). By 6500rpm, boost pressures were 10psi vs. the stock 8psi. So yest, boost pressures are still quite conservative.
Still a bit more road testing and multi-car trials to conduct before the maps are considered complete. But so far, we're happy with what we're seeing.
FWIW, on our dyno, most stock WRXs dyno in at 158-162 wheel hp. Most Stage Zero cars dyno between 192-200 wheel hp. This car, in particular, made 194 hp with the Unichip and MBC. So an additional ~10-13 wheel hp is a nice gain. Also interesting is that the car runs richer a/f ratios with more positive knock correction values. And no, there is no CE light
Cheers,
shiv
www.vishnutuning.com
________
No2 Vaporizers
Been living on the dyno for quite some time now. While they are not quite yet final, we came up with some nice ECU calibrations for our Stage Zero kit. The car represented in the following graphs is a 2002 WRX with our pulley and up-pipe. Running on 91 octane. With the stock ECU, after many consecutive learning pulls, it makes a repeatable 179-181 wheel hp. Interesting to notice that the first few runs were in the 170-175 wheel hp range. Gotta love auto-tuning that actually works.
After re-mapping fuel, timing, boost targets, knock correction, temp compensation, etc., tables, the car ended up making a nice and repeatable 204-207 wheel hp with significant torque gains across the board. Boost levels were almost unchanged up until 5200rpm. By 5900rpm, the remapped ECU raised boost by just 1 psi (11psi vs 10psi). By 6500rpm, boost pressures were 10psi vs. the stock 8psi. So yest, boost pressures are still quite conservative.
Still a bit more road testing and multi-car trials to conduct before the maps are considered complete. But so far, we're happy with what we're seeing.
FWIW, on our dyno, most stock WRXs dyno in at 158-162 wheel hp. Most Stage Zero cars dyno between 192-200 wheel hp. This car, in particular, made 194 hp with the Unichip and MBC. So an additional ~10-13 wheel hp is a nice gain. Also interesting is that the car runs richer a/f ratios with more positive knock correction values. And no, there is no CE light
Cheers,
shiv
www.vishnutuning.com
________
No2 Vaporizers
Last edited by Vishnu; 03-07-2011 at 03:43 AM.
12-02-2002, 03:56 PM
#3
Registered User
Join Date: Nov 2002
Location: earth
Posts: 127
Car Info: 22
I'd be curious to see the ECUTEC vs the Unichip/MBC on a graph too. Just to see the differences accross the band not just at peak. It's also nice to see the ECUTEC gets rid of the little blip at 3100 or so. BTW I'm guessing this test shows the factory ECU after a fresh reset?-James
Last edited by jjunior887; 12-02-2002 at 03:59 PM.
12-02-2002, 04:45 PM
#4
Guest
Posts: n/a
So, the information about the Ecutek being good for at least 25 whp gain on a stock flash, is true. Good to know David is depensing correct data.
Good data and reference points, s.p.
I'll keep those in mind while we hit our dyno runs later this week
Go Go autotune!
Chris
i-speedusa.com
Good data and reference points, s.p.
I'll keep those in mind while we hit our dyno runs later this week
Go Go autotune!
Chris
i-speedusa.com
12-02-2002, 04:46 PM
#5
Registered User
Thread Starter
iTrader: (3)
Join Date: Nov 2002
Location: Blackhawk, CA
Posts: 439
Car Info: 996 Turbo,Gallardo,BMW 335,125cc shifter kart,etc
Originally posted by jjunior887
I'd be curious to see the ECUTEC vs the Unichip/MBC on a graph too. Just to see the differences accross the band not just at peak. It's also nice to see the ECUTEC gets rid of the little blip at 3100 or so. BTW I'm guessing this test shows the factory ECU after a fresh reset?-James
I'd be curious to see the ECUTEC vs the Unichip/MBC on a graph too. Just to see the differences accross the band not just at peak. It's also nice to see the ECUTEC gets rid of the little blip at 3100 or so. BTW I'm guessing this test shows the factory ECU after a fresh reset?-James

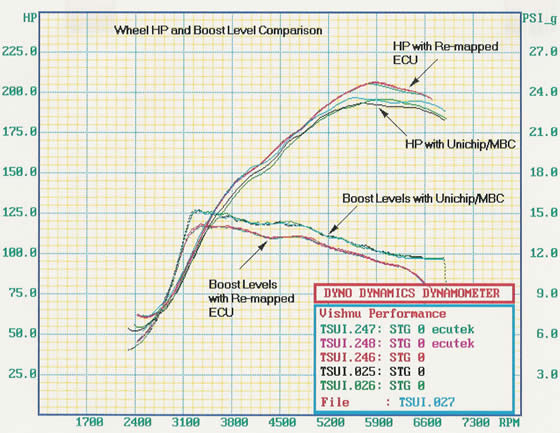

As for your Unichip/MBC vs. remapped ECU request... here it is...
________
Buy vapolution
Last edited by Vishnu; 03-07-2011 at 03:43 AM.
12-03-2002, 11:19 AM
#7
Registered User
Thread Starter
iTrader: (3)
Join Date: Nov 2002
Location: Blackhawk, CA
Posts: 439
Car Info: 996 Turbo,Gallardo,BMW 335,125cc shifter kart,etc
Originally posted by Obi-Wan
This looks very promising.
Will you be selling 'general' reflashes (ie, for up-pipe, exhaust) for people who can't make it into your shop?
This looks very promising.
Will you be selling 'general' reflashes (ie, for up-pipe, exhaust) for people who can't make it into your shop?
Cheers,
shiv
________
YAMAHA MUSIC FOUNDATION SPECIFICATIONS
Last edited by Vishnu; 03-07-2011 at 03:43 AM.
12-04-2002, 08:15 AM
#8
Guest
Posts: n/a
Originally posted by Vishnu
Absolutely. We already started offering re-flashes for cars with up-pipes. Just send in your ECU and we'll send it out the same day.
Absolutely. We already started offering re-flashes for cars with up-pipes. Just send in your ECU and we'll send it out the same day.
Also, I am assuming if I had this done now and put a turboback exhaust on later, I'd have to pay again to have it reflashed.
12-04-2002, 06:06 PM
#10
hey shiv, what could ecutek do to a car with uppipe,turbo(vf30),turboback(catless),sti injectors and fuel pump.. do you have any dyno plots of such a thing? also i havent been able to find out if it can run larger injectors and abigger fuel pump.. can it?
thanks
--bobby
thanks
--bobby
12-06-2002, 09:05 PM
#11
Registered User
iTrader: (5)
Join Date: Nov 2002
Location: Kandahar, Afghanistan
Posts: 1,305
Car Info: 09 E90 M3 SEDAN w/DCT
Shiv,
Andy here, Tom Wieglenda's Navy friend.
I want you to tune my WRX with the ECUTEK.
I have:
STi injectors
PE1820
Vishnu Uppipe
3" catless turbo back
Blitz FMIC
EBC (SBC id)
6MT
Can it be done? What are you charging? I want a dyno tune with the deal...
Thank you Sir,
Andy
Andy here, Tom Wieglenda's Navy friend.
I want you to tune my WRX with the ECUTEK.
I have:
STi injectors
PE1820
Vishnu Uppipe
3" catless turbo back
Blitz FMIC
EBC (SBC id)
6MT
Can it be done? What are you charging? I want a dyno tune with the deal...
Thank you Sir,
Andy
