i just bought my brake cooling ducts
I went to my local dealer and bought the flimsy pieces of plastic and clips. But when they are installed and anchored to the lower dust shield the firm up just enough. I tried to find out the deal why they were missing from alot of cars but my dealer didnt seem to know about it. Although they stock the part. ANy ways i figured they are supposed to be there so why not just get them. I plan on upgrading to vented rotors and better pads down the road. Even if they cool only a little its better than nothing. Thanks for generating this post i had no idea that they were even supposed to be there.
chris
chris
12-11-2003, 06:26 PM
#18
Guest
Posts: n/a

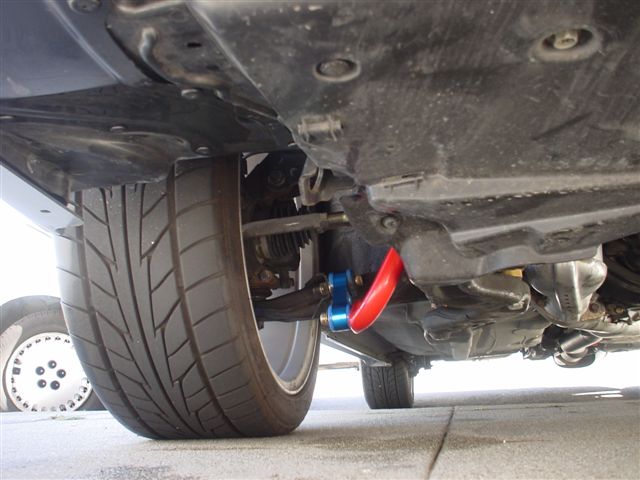

filice g got a question for u on ur install
after installing my ducts i put the wider/deeper part forward towards the bumper hole. the parts are handed and when I installed mine the duct exited more towards the inside of the tire not towards the tread like it looks in urs. If u flip them around i think you will see what i mean hope this helps.
chris
chris
12-11-2003, 07:21 PM
#19
Registered User
Join Date: Nov 2002
Location: North Idaho it's c-c-c-c-cold!
Posts: 336
Car Info: 2002 WRB WRX / 06 f150 King Ranch
wondering if they have it for rs....
12-11-2003, 07:41 PM
#20
Registered User
Join Date: May 2003
Location: Brentwood
Posts: 165
Car Info: 2003 WRB Impreza WRX Sedan
From www.subaruwrxparts.com:
"Brake Ducting
Found standard on the 02-03 WRX, these ducts were removed from 04 models. They can thankfully be added fairly easily, and will help to keep the brakes cool. Contains everything you will need to add these ducts to your vehicle.
Price:$25.00 "
Is that right...or are there 02's and 03's that dun have em? Im too forgetful to look underneath the car...
"Brake Ducting
Found standard on the 02-03 WRX, these ducts were removed from 04 models. They can thankfully be added fairly easily, and will help to keep the brakes cool. Contains everything you will need to add these ducts to your vehicle.
Price:$25.00 "
Is that right...or are there 02's and 03's that dun have em? Im too forgetful to look underneath the car...
12-11-2003, 07:55 PM
#22
Guest
Posts: n/a
i gota late production 2002
and mine was missing i just picked the ducts today and installed them. I t was real easy to do and didnt need t o jack up car either. I hope some one gets to teh bottom of this and finds out why so many were left off the cars.
12-11-2003, 08:01 PM
#23
Registered User
Join Date: May 2003
Location: Brentwood
Posts: 165
Car Info: 2003 WRB Impreza WRX Sedan
Re: i gota late production 2002
Right on, how much and where didja get em from? The closest dealer to me is Mazda/Subaru Diablo Dealership...i dun even know if thats the full name, but its the one in Walnut Creek...
Originally posted by silver_rex_4eat
and mine was missing i just picked the ducts today and installed them. I t was real easy to do and didnt need t o jack up car either. I hope some one gets to teh bottom of this and finds out why so many were left off the cars.
and mine was missing i just picked the ducts today and installed them. I t was real easy to do and didnt need t o jack up car either. I hope some one gets to teh bottom of this and finds out why so many were left off the cars.
12-11-2003, 08:09 PM
#24
Guest
Posts: n/a
i paid
a lil over 28 dollars including tax at my local subar u dealer in connecticut. I got each side duct and 12 clips/ pins to install the duct. here are the part numbers
59123fe010 plate brake duct left hand
59123fe000 plate brake duct right hand
46064ae000 clip need 12 (6 for each)
each duct was around 7 dollars each and each pin is like a dollar but you can get the pins at a auto store for cheaper price but i didnt care i wanted to makes ure the y fit right so i got the real deal. i hope this helps a nd if got ne questions on install ill help u.
I just got a digital camera ill try to take some pics when i can and get used to load ing the pics on my pc.
chris
59123fe010 plate brake duct left hand
59123fe000 plate brake duct right hand
46064ae000 clip need 12 (6 for each)
each duct was around 7 dollars each and each pin is like a dollar but you can get the pins at a auto store for cheaper price but i didnt care i wanted to makes ure the y fit right so i got the real deal. i hope this helps a nd if got ne questions on install ill help u.
I just got a digital camera ill try to take some pics when i can and get used to load ing the pics on my pc.
chris
12-11-2003, 08:16 PM
#25
Registered User
Join Date: May 2003
Location: Brentwood
Posts: 165
Car Info: 2003 WRB Impreza WRX Sedan
Re: i paid
Awesome, thanks. When I get some time I think im gonna try to hit up the dealership and see if they got them there...and well, I suppose I should check my car first to see if i have em or not
Justin
Justin
Originally posted by silver_rex_4eat
a lil over 28 dollars including tax at my local subar u dealer in connecticut. I got each side duct and 12 clips/ pins to install the duct. here are the part numbers
59123fe010 plate brake duct left hand
59123fe000 plate brake duct right hand
46064ae000 clip need 12 (6 for each)
each duct was around 7 dollars each and each pin is like a dollar but you can get the pins at a auto store for cheaper price but i didnt care i wanted to makes ure the y fit right so i got the real deal. i hope this helps a nd if got ne questions on install ill help u.
I just got a digital camera ill try to take some pics when i can and get used to load ing the pics on my pc.
chris
a lil over 28 dollars including tax at my local subar u dealer in connecticut. I got each side duct and 12 clips/ pins to install the duct. here are the part numbers
59123fe010 plate brake duct left hand
59123fe000 plate brake duct right hand
46064ae000 clip need 12 (6 for each)
each duct was around 7 dollars each and each pin is like a dollar but you can get the pins at a auto store for cheaper price but i didnt care i wanted to makes ure the y fit right so i got the real deal. i hope this helps a nd if got ne questions on install ill help u.
I just got a digital camera ill try to take some pics when i can and get used to load ing the pics on my pc.
chris
Lucky I guess. :banana:
