Another +1 for Ed at EQTuning
Thread Starter
Registered User
iTrader: (1)
Joined: Jun 2007
Posts: 59
From: San Jose, CA
Car Info: 11 SSM STi
Another +1 for Ed at EQTuning
Got road tuned by Ed today and I am thoroughly impressed and satisfied. My car is finally making the power I wanted from the beginning and pulls incredibly hard. Now I truly realize what "smooth turbo power" really is!
Mods for 04 STi:
stock vf39 IWG
generic bellmouth dp
perrin CBE
GM 3 port boost solenoid
stock fuel pump
stock injectors
NGK one step colder sparkplugs
I know, the torque on this is insane. Ed thought I had aftermarket headers!

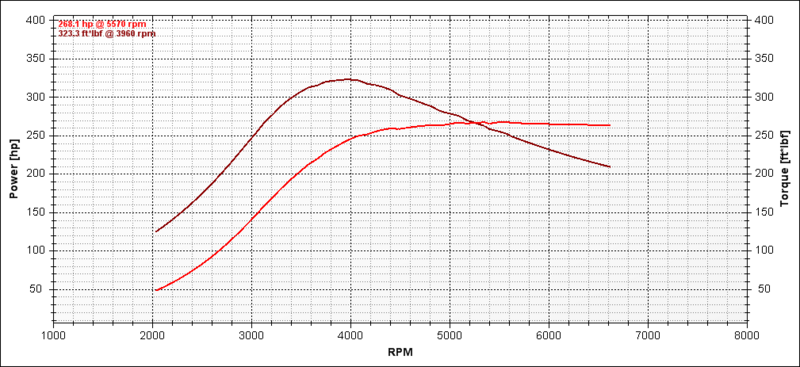

Edit: I just realized the pic is very small.
268.1 hp@5570rpm
323.3 ft/lbs@3960
Mods for 04 STi:
stock vf39 IWG
generic bellmouth dp
perrin CBE
GM 3 port boost solenoid
stock fuel pump
stock injectors
NGK one step colder sparkplugs
I know, the torque on this is insane. Ed thought I had aftermarket headers!
Edit: I just realized the pic is very small.
268.1 hp@5570rpm
323.3 ft/lbs@3960
Last edited by alee86; Nov 6, 2007 at 05:58 PM.
Registered User
iTrader: (11)
Joined: Feb 2006
Posts: 2,097
From: top of Mt. Hammy
Car Info: 413whp/461wtq
dam Ed is a mastermind when it comes to our suby's! I have yet to see a diappointed review. keep up the good work Ed, i'll be coming to you once I get some more mods done
Yup, Ed is the man! He tuned my stock turbo STi, made 294 tq / 272 hp on a catted setup....I need to go catless and get some aftermarket boost control... Im jealous of the torque!!
BTW, how much boost?
Enjoy!
BTW, how much boost?
Enjoy!
Last edited by subie OCD; Nov 7, 2007 at 07:46 PM.
VIP Member
iTrader: (17)
Joined: May 2005
Posts: 22,776
From: Sunnyvale, CA
Car Info: '13 BRZ Limited / '02 WRX
Registered User
Joined: Apr 2005
Posts: 94
From: San Jose, CA
Car Info: 05 silver 2.5 RS
you still owe me a road test with the new mods. Let me borrow your engine for a couple of days. lol. good numbers, we'll need to go to mt hammy next season.... just remember to slow down when you dont see me on your rear view mirror.
whats there to do on an RS??
whats there to do on an RS??
Thread Starter
Registered User
iTrader: (1)
Joined: Jun 2007
Posts: 59
From: San Jose, CA
Car Info: 11 SSM STi
Welcome to the club - I got my tune a few weeks back before he headed south. It was fun doing those 100 mph runs - it got there real fast and there was more to be had!
iClub Silver Vendor
iTrader: (12)
Joined: Mar 2003
Posts: 8,228
From: 631 Railroad Ave. Fairfield, CA
Car Info: A Laptop
All graphs use some form of smoothing, this doesn't mean that the power is not smooth. Road dyno plots use smoothing especially because the data is relatively slow and noisy. It still provides plenty of resolution, however, to identify problem spots in the power band. Here's an 07 STI with a Cobb Stage 2 OTS map for example (not so smooth):
As you can see, torque hits late and there is quite a bit of timing being pulled around 5000-6000RPM due to knock. This is of course reflected by the big dip in the graph.
So while my graphs do look smooth, it takes quite a bit of work to get them that way and its not just a result of using smoothing algorithms. The really important part, however, is how the cars feel. Just about every one of my customers comments on how smooth the tunes feel. Many of them have been to other tuners as well so they have something to compare to
.
Thanks
As you can see, torque hits late and there is quite a bit of timing being pulled around 5000-6000RPM due to knock. This is of course reflected by the big dip in the graph.
So while my graphs do look smooth, it takes quite a bit of work to get them that way and its not just a result of using smoothing algorithms. The really important part, however, is how the cars feel. Just about every one of my customers comments on how smooth the tunes feel. Many of them have been to other tuners as well so they have something to compare to
.Thanks
