before:




well decided it was time to go big or go home and update the car a bit...so i sold off all the old stuff and here is what i got...

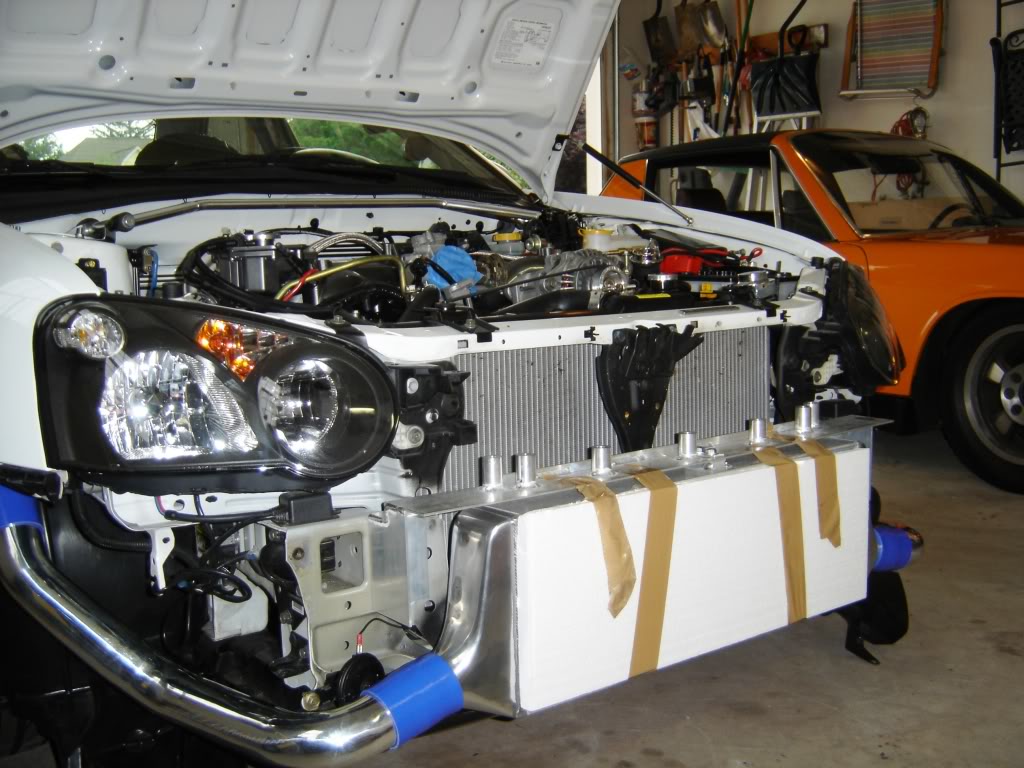

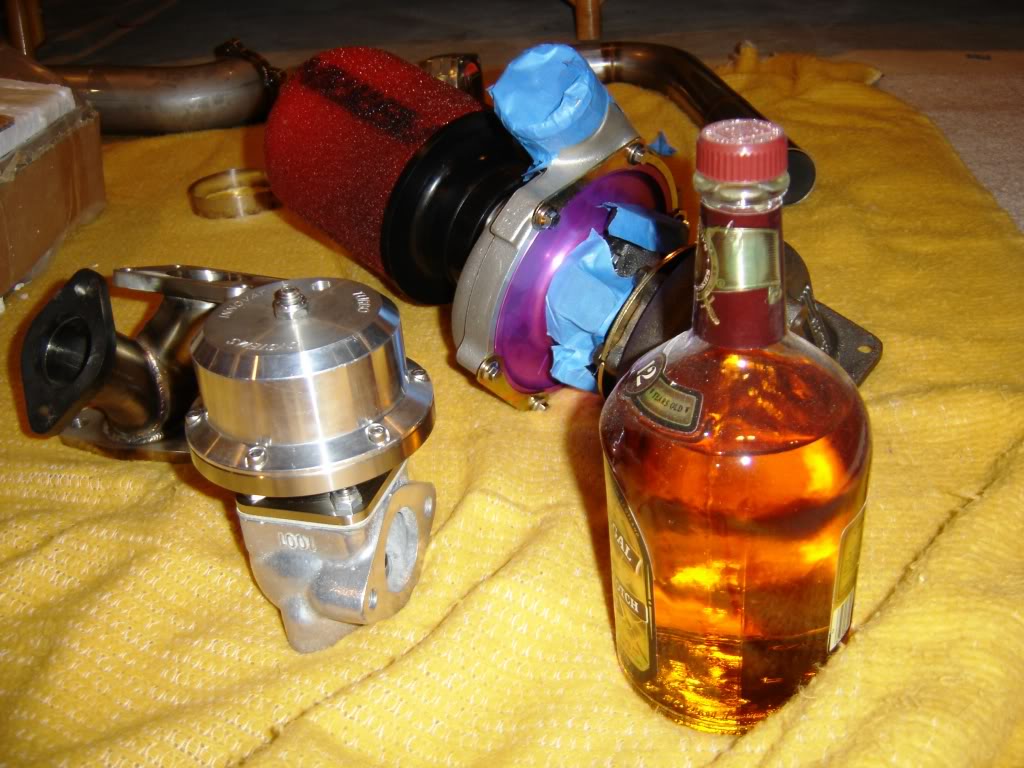

turboxs fmic (custom piping)
innovative pro gate wastegate
innovating turbo 50 trim T04E with a T3 stage 5 turbine dual ball bearing water cooled and oil
custom up pipe adaptor
custom downpipe
custome intake not yet made
and blow through maf....so far here we go with the pics...

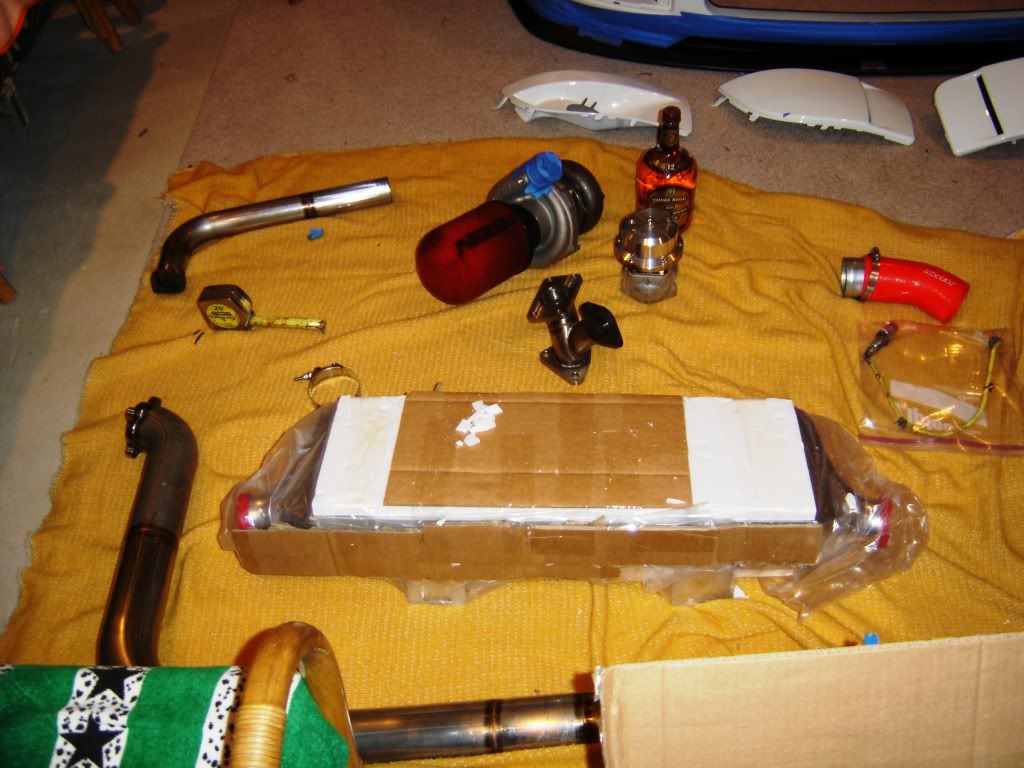

:devil: extra piping not used from TurboXs FMIC kit...mmmmmmmmmm i love quick spoooooool:devil: (note i did not have to weld any piping, the only thing that will have to be welded is the BOV flange)

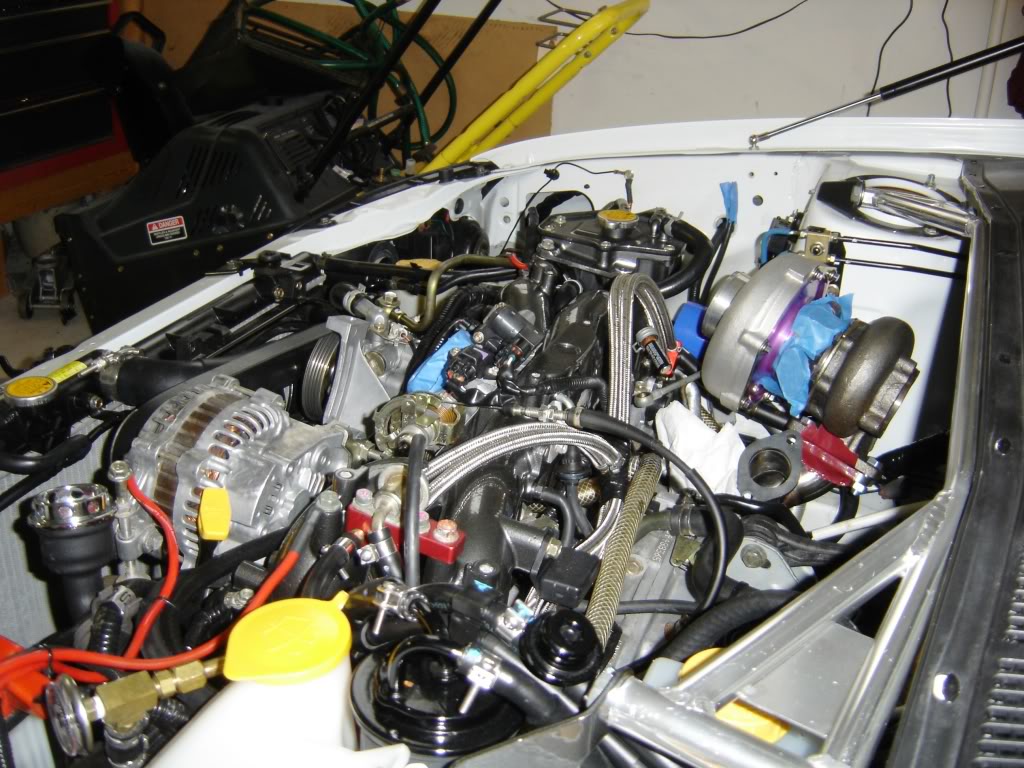

massive Innovative Progate and catch can (pcv and crankcase both vented to atmos.)

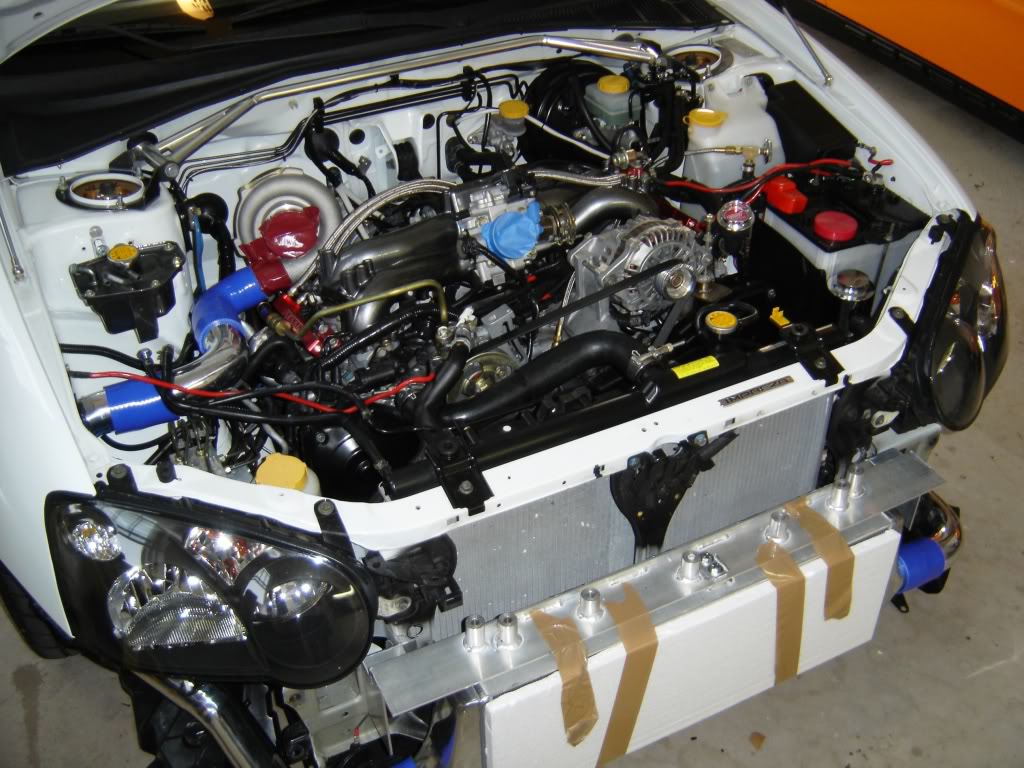

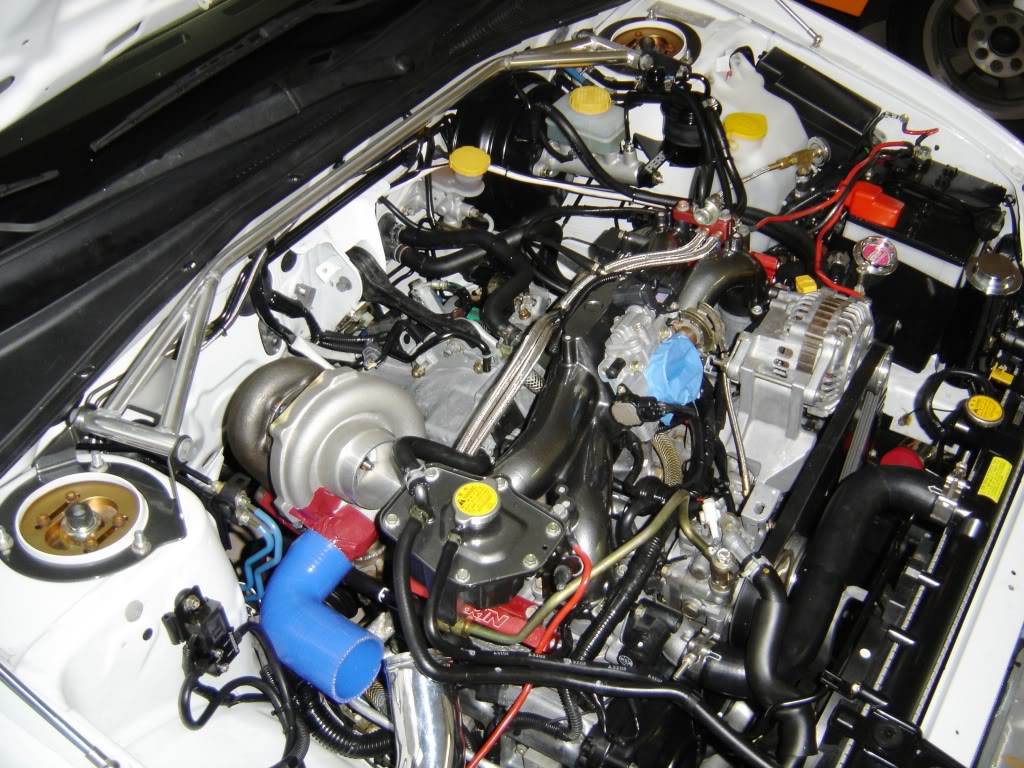

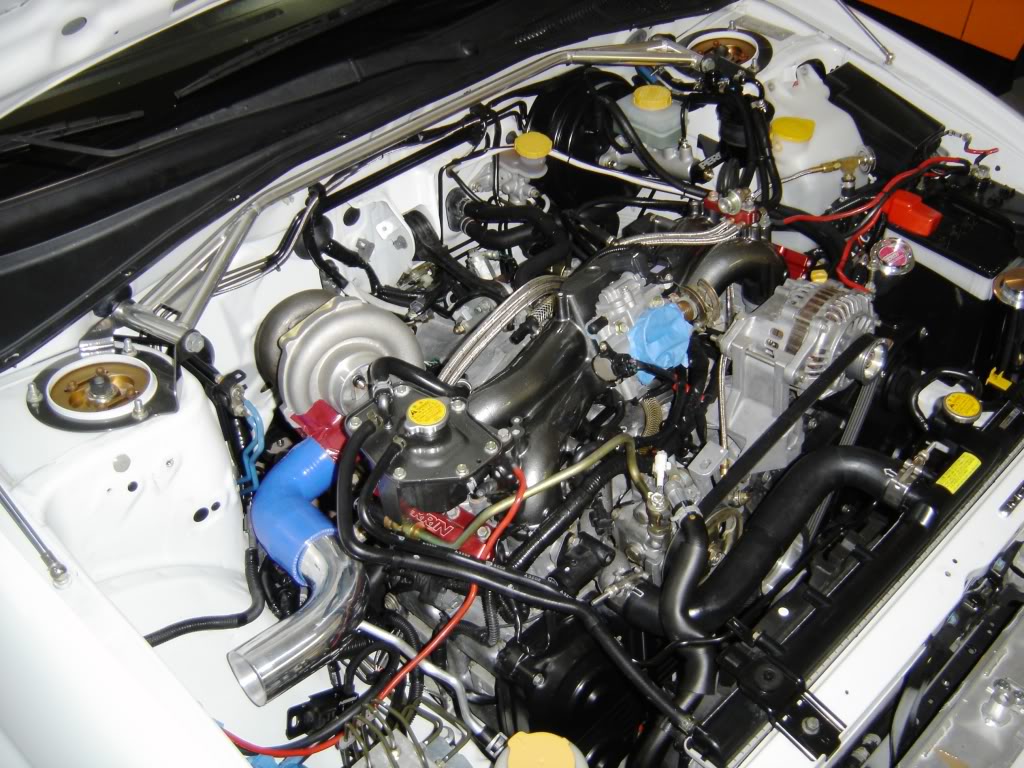

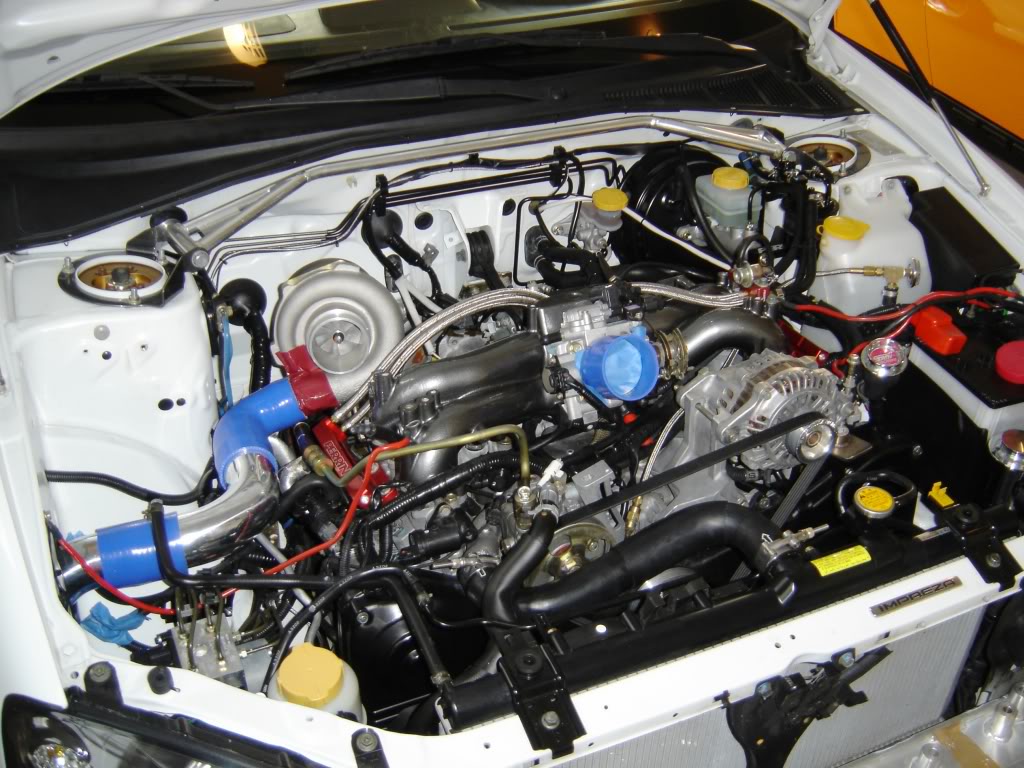

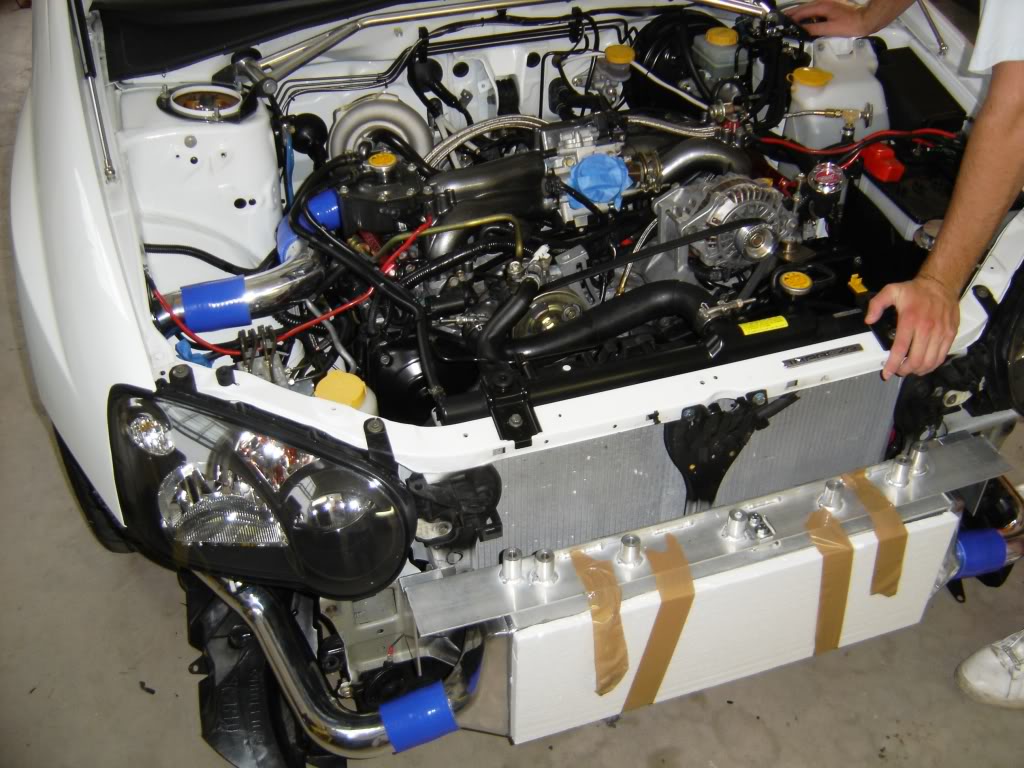

new pipe route...



waiting on turbo gasket, Fing Oil line and Oil drain and that is it, then final install and off for a TUNE



damn, looks sick!



very nice i like...



wow nice isnt this comparable to the gt30?



very nice indeed!



Damn! Very nice!



im jealous...........lol....... keep it up.. looks SICK!!! stock internals???



nice setup! how much clearance do you have from the belt to piping?



holy crap, compressor housing looks REALLY big



need to run return coolant, make intake, waiting on water injection nozzle, and that is about it...hoping to be done this weekend



INsane!!!
