1991 Legacy sport into Legacy RS Type RA Spec bare shell complete rebuild

Hi, I have trouble keeping up with all my threads already but this build is a big one so I can post over time. I will start off by telling you why I chose a Legacy as the most serious and complete build project I have ever done. The whole Subaru interest started for me because I worked for a Subaru Dealership in New Zealand and I carried out my apprenticeship there. Fortunately for me my employer was a well known race car driver ( who my dad had built racing engines for) so I was very actively involved in his motorsports activities which led me to work on a Subaru Legacy RS in races and Rally's throughout N.Z and also worked several events with Possum Bourne who was a well known Subaru driver with a full spec Group A prodrive Legacy. He co drove our Legacy with Trevor in Street races in the NZ touring car series for a few events.

Anyway years gone by and I found this old Legacy sport in Texas and really wanted to buy it as seeing it reminded me of where it all started and I really like those good old cars
Here's a few old photos of the Legacy I worked on and Possums Group A legacy which I spent one weekend at the Local track while he ran it. It also stayed at our dealership for a while.

Name:  n1266482561_30199067_8749.jpg
Views: 925
Size:  57.9 KB
Name:  starter004.jpg
Views: 935
Size:  1.23 MB
99067_8749.jpg[/IMG]

Name:  5889_1220894163606_1266482561_30628.jpg
Views: 788
Size:  48.0 KB
Name:  n1266482561_30199065_8086.jpg
Views: 801
Size:  52.6 KB
Name:  n1266482561_30199066_8431.jpg
Views: 816
Size:  48.3 KB
Name:  n1266482561_30199066_8431.jpg
Views: 816
Size:  48.3 KB
Attached Images
File Type: jpg

Last edited by 22B05STI; 10-01-2012 at 10:10 PM.
22B05STI is offline
Old 09-22-2012, 11:43 PM
  #2
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
The legacy arrived and was in way worse shape than I expected so I did a lot of work to it.
Name:  alensales005.jpg
Views: 736
Size:  65.1 KB
Name:  alensales006.jpg
Views: 792
Size:  63.7 KB
Name:  alensales004.jpg
Views: 785
Size:  48.3 KB
Name:  DSC00105.jpg
Views: 881
Size:  5.27 MB
Name:  DSC00127-1.jpg
Views: 871
Size:  5.02 MB
Name:  DSC00122.jpg
Views: 867
Size:  4.70 MB
Name:  DSC00114.jpg
Views: 868
Size:  4.80 MB
22B05STI is offline
Old 09-22-2012, 11:49 PM
  #3
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
The repair of the legacy photos
Name:  DSC00227.jpg
Views: 865
Size:  2.79 MB
Name:  DSC00219.jpg
Views: 865
Size:  2.75 MB
Name:  DSC00414.jpg
Views: 862
Size:  2.43 MB
Name:  DSC00259.jpg
Views: 851
Size:  2.79 MB
Name:  DSC00393.jpg
Views: 845
Size:  2.79 MB
Name:  DSC00495.jpg
Views: 866
Size:  2.81 MB

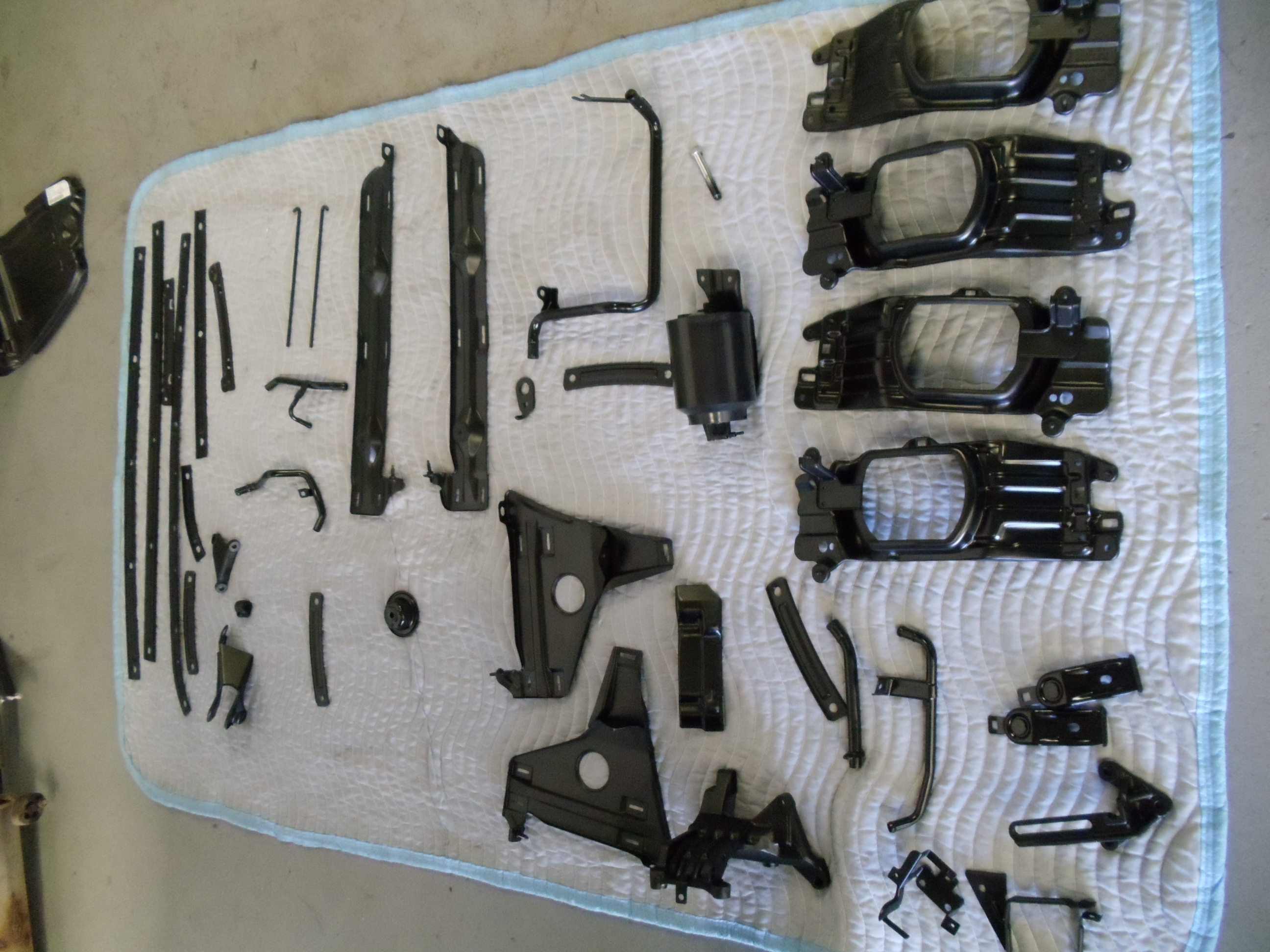

Name:  DSC00419.jpg
Views: 828
Size:  2.32 MB
Name:  DSC00270.jpg
Views: 831
Size:  1.64 MB
Name:  HPIM1068.jpg
Views: 799
Size:  615.5 KB
Name:  HPIM1074.jpg
Views: 803
Size:  693.6 KB
Name:  DSC00431.jpg
Views: 836
Size:  2.71 MB
22B05STI is offline
Old 09-22-2012, 11:53 PM
  #4
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Name:  DSC00248.jpg
Views: 806
Size:  2.66 MB
Name:  DSC00272.jpg
Views: 824
Size:  2.58 MB
Name:  DSC00269-1.jpg
Views: 815
Size:  2.65 MB
Name:  DSC00303.jpg
Views: 818
Size:  2.73 MB
Name:  DSC00370.jpg
Views: 796
Size:  2.61 MB
Well, this is really just the beginning of the story, I will continue again soon
22B05STI is offline
Old 09-23-2012, 12:08 AM
  #5
Registered User
iTrader: (5)

bkblitzed's Avatar

Join Date: Aug 2010
Location: Monterey, California
Posts: 4,963
Car Info: Black 2013 FRS
oh cool you're from monterey. I think you know my friend Jody
bkblitzed is offline
Old 09-23-2012, 03:00 AM
  #6
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Name:  DSC00368.jpg
Views: 835
Size:  2.63 MB
Name:  DSC00287.jpg
Views: 820
Size:  2.71 MB
Name:  DSC00125.jpg
Views: 797
Size:  5.07 MB
Name:  DSC00123-1.jpg
Views: 809
Size:  4.90 MB
Name:  DSC00119-1.jpg
Views: 785
Size:  3.96 MB
Name:  DSC00116.jpg
Views: 816
Size:  5.36 MB
Name:  DSC00417.jpg
Views: 794
Size:  2.42 MB
Name:  DSC00490.jpg
Views: 800
Size:  2.48 MB
Name:  HPIM1035.jpg
Views: 767
Size:  681.9 KB
Name:  DSC00120.jpg
Views: 790
Size:  4.66 MB
Name:  DSC00374-1.jpg
Views: 786
Size:  2.61 MB
Name:  DSC00416.jpg
Views: 781
Size:  2.48 MB
22B05STI is offline
Old 09-23-2012, 03:05 AM
  #7
VIP Member
iTrader: (21)

mrruins's Avatar

Join Date: Jul 2003
Location: 95616
Posts: 1,673
Car Info: 05 toyota tacoma
awesome! subscribed.
mrruins is offline
Old 09-23-2012, 03:07 AM
  #8
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Name:  DSC00428.jpg
Views: 790
Size:  2.64 MB
Name:  DSC00298-1.jpg
Views: 784
Size:  4.88 MB
Name:  HPIM1032.jpg
Views: 763
Size:  673.3 KB
Name:  HPIM1034-Copy.jpg
Views: 771
Size:  676.7 KB
Name:  HPIM1039.jpg
Views: 768
Size:  844.1 KB
Name:  HPIM1049.jpg
Views: 767
Size:  714.5 KB
Name:  HPIM1055.jpg
Views: 764
Size:  692.5 KB
Name:  DSC00370.jpg
Views: 761
Size:  2.61 MB
Name:  DSC00504.jpg
Views: 792
Size:  3.99 MB
Name:  DSC04101.jpg
Views: 785
Size:  1.53 MB
22B05STI is offline
Old 09-23-2012, 03:11 AM
  #9
Registered User
iTrader: (15)

theoutbackdream's Avatar

Join Date: Jan 2012
Location: gone hunting, be back maybe
Posts: 3,835
Car Info: 12Teens crazy 4 me
Looks sweet! im interested in this.. Subbed!
theoutbackdream is offline
Old 09-23-2012, 03:21 AM
  #10
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Originally Posted by mrruins View Post
awesome! subscribed.
Thanks, the story is far from over yet. As you can see I did a heap of work and replaced all the belts and hoses and all the cambelt pulleys. I made a short throw shifter and bought all new trim pieces for around the windows. The car was starting to Klondike.
Here are a few Legacy Rally pictures
Name:  y1p_f96uXvkV9qFn-R-Mn9y6q5c5xIV_brS_6ZeqUBlkCqNj_xmMq5o4ElN75d_njQOI6fPTY2XvruLDudVWEw1.jpg
Views: 771
Size:  73.2 KB
Name:  84f053bc.jpg
Views: 803
Size:  172.6 KB
Name:  RollingShell.jpg
Views: 752
Size:  112.2 KB
Name:  subarulegacyrs.jpg
Views: 936
Size:  105.3 KB
Name:  legacyrsraenginebaygroupA.jpg
Views: 770
Size:  900.1 KB
Name:  Stage5.jpg
Views: 718
Size:  113.3 KB
Name:  Stage14.jpg
Views: 762
Size:  115.1 KB
Name:  legacyrs.jpg
Views: 793
Size:  85.3 KB
Name:  p44939n3.jpg
Views: 689
Size:  72.5 KB
Name:  2811175564_efa73f3750_b.jpg
Views: 729
Size:  407.0 KB
Name:  2810326323_7fe5c03e35_z.jpg
Views: 701
Size:  151.7 KB
This is really how I remember the Legacy.... As a rally contender!
22B05STI is offline
Old 09-23-2012, 03:34 AM
  #11
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Ok Guys, this is really just a glimpse into the past here, I was contacted by one of the Legacy Forums and asked if they could do on online magazine article on this car
So here is a little fast forward glimpse into this project ...... But it's still very far from over at that point..... Much yet to be told
Name:  8e0b7b7b.jpg
Views: 732
Size:  205.6 KB
Name:  60bc1f78.jpg
Views: 730
Size:  264.9 KB
Name:  ddf834f6.jpg
Views: 758
Size:  212.0 KB
Name:  3c01cd1c.jpg
Views: 673
Size:  238.8 KB
22B05STI is offline
Old 09-23-2012, 09:30 AM
  #12
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Name:  DSC00211.jpg
Views: 850
Size:  2.73 MB
Name:  DSC00507-3.jpg
Views: 859
Size:  4.98 MB
At this point I have rebuilt the Turbo, replaced almost all the belts and hoses, Fit new Exterior trim pieces. Fit new Grill and rear Garnish. Fit slotted brake rotors, stripped out the interior and resprayed the vinyl with an airbrush which works extremely well
Fit brand new OEM muffler. Replaced all the door seals, and fit a new radio DVD player.
Name:  DSC00516.jpg
Views: 763
Size:  4.83 MB
Name:  DSC00533.jpg
Views: 763
Size:  4.87 MB
Name:  DSC03736.jpg
Views: 850
Size:  2.15 MB
Name:  HPIM1116.jpg
Views: 755
Size:  739.3 KB
Name:  DSC03738.jpg
Views: 776
Size:  2.17 MB
Name:  DSC00562.jpg
Views: 783
Size:  4.98 MB
Name:  DSC00629.jpg
Views: 771
Size:  5.49 MB
Name:  DSC00631.jpg
Views: 774
Size:  5.37 MB
22B05STI is offline
Old 09-26-2012, 08:39 PM
  #13
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
*
Interior:
******** Momo Cobra three spoke steering wheel
******** RA specific seat fabric (velour inserts the same as RS)
******** Low grade headlining
******** Deletion of passenger visor vanity mirror
******** Manual windows (RS – power windows)
******** Manual locking (RS central locking)
******** Air conditioning – factory option – none climate control version (RS – climate control)
******** Addition of rear scuttle brace (TBC)
*
Exterior:
******** Rear spoiler deletion
******** Rear windscreen wiper washer deletion
******** Black side skirt deletion
******** Black, manual adjustment side mirrors (RS power mirrors)
******** Manual radio aerial – located at top of right A pillar (RS power aerial – rear left flank)
******** Blue tinted glass (RS Bronze)
******** Paint colours:
o*** Type A: Ceramic white#57
o*** Type B: Ceramic white#57
o*** Type C: Feather white#30
o*** Type D: Feather white#30* or Black mica#52
*
Engine:
******** Internal:
o*** Hand built / blue-printed engine by STi
o*** Crank shaft, flywheel and clutch cover - balanced and hand finished
o*** Cylinder heads and intake manifold *- hand finished / casting lines and gaps removed / polished
o*** Forged pistons
o*** Forged connecting rods
******** Turbo (TBC):
o*** Turbine rotor diameters(in/out): 52.5 / 46.5 (RS: 52.5 / 43.0)
o*** Compressor Impellers diameters(out/in): 56.0 / 45 (RS: 56.0 / 41.2)
o*** Maximum boost pressure: 450 Hg (RS – same)
o*** Intercept point: 2,800rpm (RS: 2,400rpm)
o*** Turbine blades: 10 (RS: 9)
******** External:
o*** Gold painted cam covers
o*** Gold painted intercooler reservoir
o*** Intake manifold cover - deleted
o*** Twin electric radiator fans (larger capacity than RS)
******** Output:
o*** Power: 220 PS @ 6,400 rpm (RS: 200 PS @ 6,000rpm)
o*** Torque: 27.5 KG m @ 4,000rpm (RS: 26.6 KG m @ 3,600rpm)
*
Transmission:
******** Close ratio gear set (Types B – D only)
*
Chassis:
******** Aluminium sump guard – custom sub frame mounting bracket and side splash guards (plastic)
******** Deletion of under body sound deadening
******** Hardened bushes (STi grade - except rear differential mount, trailing arms, and stabilizer bars)
******** Hardened coil springs (measure is: KG / mm) – Front: 3.2 / Rear: 2.85 (RS: Front: 2.51 / Rear: 1.89)
******** Revised damper rates (measure is: pull/push and 0.3m/sec) – Front: 190 and 140 / Rear: 130 and 85 (RS: Front: 126 and 31 / Rear: 82 and 25)
******** Adoption of an advan "GROVA" high grip tyre
******** Quicker steering ratio / rack
******** Deletion of driver / switch operated ‘variable assistance’ power steering
******** Deletion of ABS system
*
22B05STI is offline
Old 09-26-2012, 08:45 PM
  #14
Registered User
Thread Starter

Join Date: Aug 2012
Location: Monterey, Northern California
Posts: 192
Car Info: 05 Subaru Impreza STI
Name:  4AFCAD51-06F4-4811-89B0-3A8ACF5CE61C-90-000000567B651330.jpg
Views: 709
Size:  40.3 KB
Name:  3A9F2FC1-125C-4221-8CB2-B1E0E4B0BB79-90-0000005663805363.jpg
Views: 633
Size:  31.3 KB
Name:  DF388B60-0AC2-49AE-BE6E-5EFB42FB75D2-90-000000566E6FCC96.jpg
Views: 694
Size:  34.5 KB
Name:  5F40DB19-4CD8-4A36-9230-526FD07637FF-90-0000005674CB0534.jpg
Views: 637
Size:  30.2 KB
Here is a little about the real legacy RSRA
22B05STI is offline
Old 09-26-2012, 08:48 PM
  #15
Registered User
iTrader: (15)

theoutbackdream's Avatar

Join Date: Jan 2012
Location: gone hunting, be back maybe
Posts: 3,835
Car Info: 12Teens crazy 4 me
Built list is Amazing man!!!
theoutbackdream is offline

Thread Tools
Search this Thread
Quick Reply: 1991 Legacy sport into Legacy RS Type RA Spec build


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
