Here is what went down.

Started to disasemble manifold

Decided that I would not mess with it so close to the cruise, so I put it back together. I have not actually unbolted anything on the manifold except the coolant resiviour, and had replaced a few vacuum hoses with silicone replacements ( the inside diameters were different, to troubleshoot I replaced with stock ones and no change )

Very Rough Idle
High AFR's (19's)
Check Engine Light ( I'm bummed I don't have my AP anymore =/ )

Any ideas? I realize all of these symptoms point to a vacuum leak somewhere, but its the check engine light that worries me. I'm going to pressure test tomorrow morning and will update the thread then.



Definitely sounds like a leak. Or you might have nudged something loose. Sounds like IACV maybe???



ill bring my laptop and tactrix cable to work we can pull the coe if you cant figure it out



When you say pressure test do you mean a leak down or compression test?



Um.. leak test.

I would say its un-drivable.

Oh, I forgot to mention it started up a few times before this without the check engine light and lean (18-20 AFR) idle. Then, the symptoms were HIGH idle. I had a pre-existing lean condition at idle ( 15-16afr ) that persisted through the first few start ups as normal.



pm me your number i get off around 4 if you havnt figured it out by then ill come by and we can pull the code



Okay, but I won't be home until 8pm. You live in Kailua though don't you?



hey ryan, i'm sure you just nudged something in there. hope you get it figured out by saturday man.



It's most likely some sensor not fully plugged in or something. It ran fine for a while and then weirdness.



Okay, here is what I have come up with.

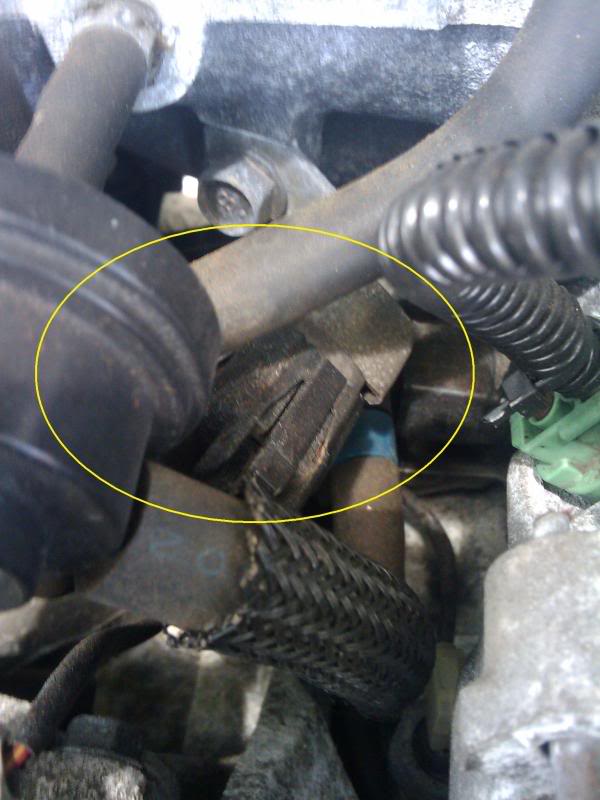

Now that I had the benefit of it not being pitch black outside... This little guy is not connected. There is nothing close to it that needs to be connected, so I put it to you.

1st


ZOOOOMM!



Obviously a vacuum line somewhere, and one that I suspect is related to my FPR. Again, runs okay for a little, high idle but no wierd noises or anything this lasts about 2 minutes. Then, BAM, AFR's off the charts and of course starts to limp and stumble.

Where does that line go!

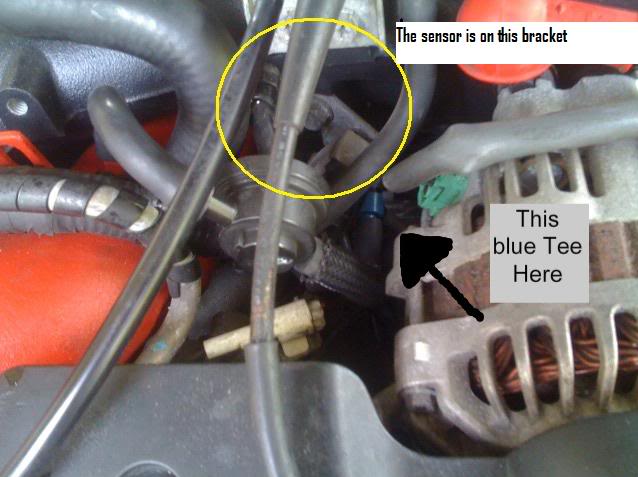

just checked on my engine and it doubles back to a sensor behind the black circle thingy







Fixed it, still does this:

Again, runs okay for a little, high idle but no wierd noises or anything this lasts about 2 minutes. Then, BAM, AFR's off the charts and of course starts to limp and stumble.



Try resetting the ECU since you might have fixed the problem.
