ABS Problems
So my ABS has been out for a long time. Hit a deep puddle and there it went. The buzzing started and my ABS and Brake light both came on. I pulled the fuse and lived with it since I couldn't figure it out. Well today On my way to work I clipped some water on my right side and magically the ABS light turned off. Figured it fixed itself but no so I recorded the vid.
Any clues to WTF is wrong?
Any clues to WTF is wrong?
Registered User
iTrader: (2)
Joined: Jul 2011
Posts: 491
From: Sacramento
Car Info: 04 WRX Wagon, 06 Forester XT, 99 Legacy Sedan
My guess is it is ABS sensor related.

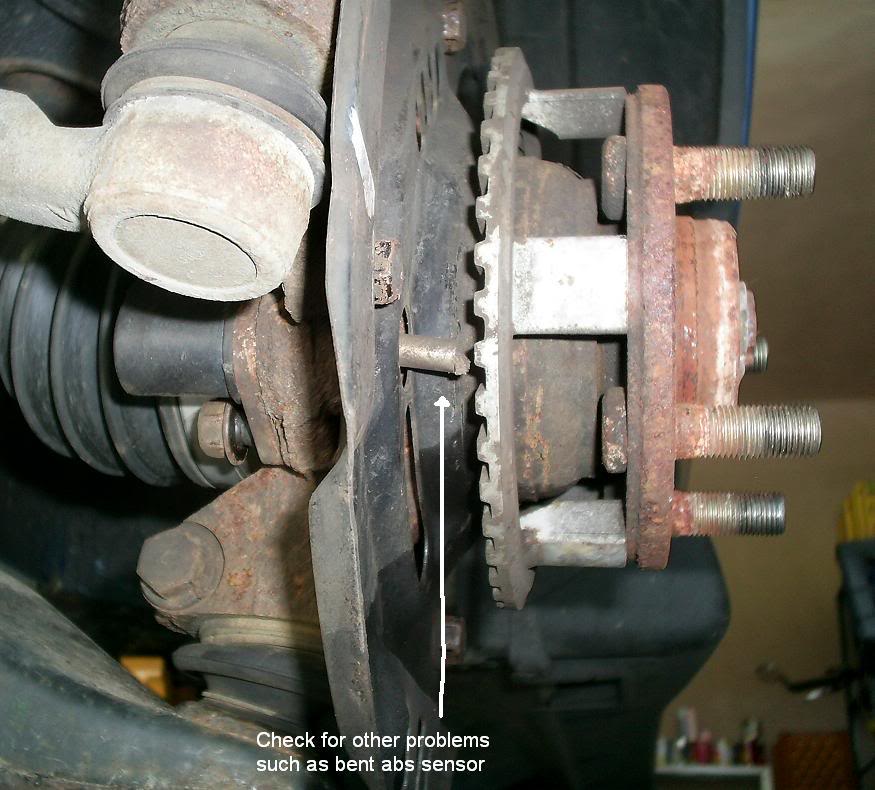

Here is a picture of the older style but the newer style is the same concept. Tone wheel has one tooth on it that is magnetic. The abs sensor is also magnetic.

Sometimes metal debris can get attracted to the sensor and cause the reading to be off.
I would go over to the side of the car where you hit the water puddles and inspect the sensor in the front and back of the car on that side.
Here is a picture of the older style but the newer style is the same concept. Tone wheel has one tooth on it that is magnetic. The abs sensor is also magnetic.

Sometimes metal debris can get attracted to the sensor and cause the reading to be off.
I would go over to the side of the car where you hit the water puddles and inspect the sensor in the front and back of the car on that side.
Thread Starter
Registered User
iTrader: (11)
Joined: Feb 2011
Posts: 2,106
From: Red Hill
Car Info: my wife crazy with buying parts
Yeah def might just be dirty. Light is back on so I assume it has mud that re hardened. Hope it fixes the whole problem but first I must sleep
Can be a internal problem with the abs sensor or motor...I'd take it to the dealer or auto shop and tell them to pull the code that way you have a better idea to what it is
Registered User
iTrader: (4)
Joined: Jul 2012
Posts: 783
From: On the couch
Car Info: FXT/ 1999 Legacy L /2007 OB/ 71 240z
I had the same problem with my Lego. I followed the sensor to the connector and cleaned them out, and greased them, and it worked great! until one of the sensors wires got ripped some how, and now my light comes on and off to haunt me.
Thread Starter
Registered User
iTrader: (11)
Joined: Feb 2011
Posts: 2,106
From: Red Hill
Car Info: my wife crazy with buying parts
As I just lay in bed from work I am now debating getting up and checking.
Last edited by PSBeachBum; May 22, 2013 at 09:47 AM.
Registered User
iTrader: (4)
Joined: Jul 2012
Posts: 783
From: On the couch
Car Info: FXT/ 1999 Legacy L /2007 OB/ 71 240z
Thread Starter
Registered User
iTrader: (11)
Joined: Feb 2011
Posts: 2,106
From: Red Hill
Car Info: my wife crazy with buying parts
Registered User
iTrader: (4)
Joined: Jul 2012
Posts: 783
From: On the couch
Car Info: FXT/ 1999 Legacy L /2007 OB/ 71 240z
Thread Starter
Registered User
iTrader: (11)
Joined: Feb 2011
Posts: 2,106
From: Red Hill
Car Info: my wife crazy with buying parts
Thanks jimi. With my DTC 52 I can now randomly poke a prod circuits according to the service manual.
Last edited by PSBeachBum; May 23, 2013 at 04:07 PM.
Thread Starter
Registered User
iTrader: (11)
Joined: Feb 2011
Posts: 2,106
From: Red Hill
Car Info: my wife crazy with buying parts

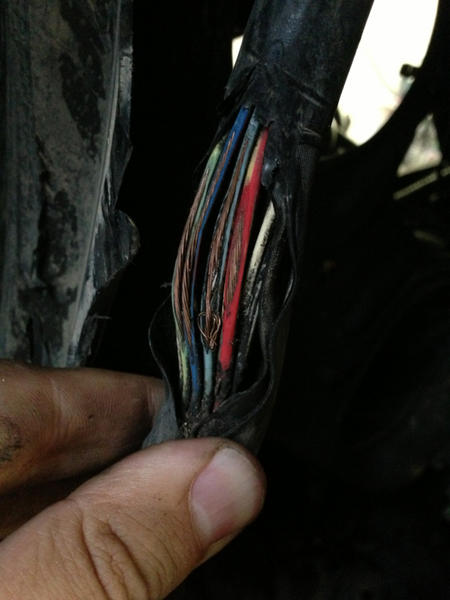

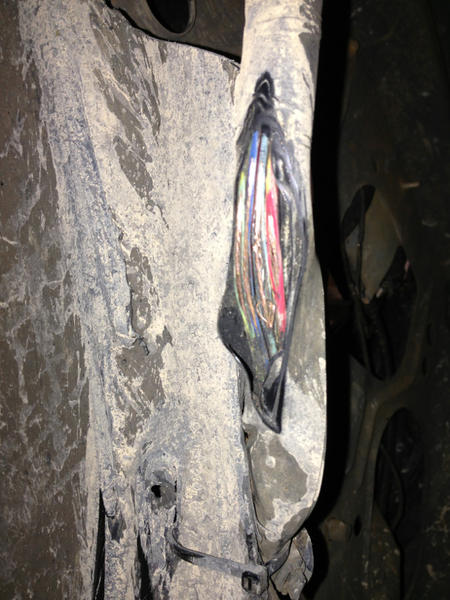

Nom nom nom. Found my problem
. I need to get my soldering skills up.
At least I hope that's the only prob
Any suggestions?
. I need to get my soldering skills up.At least I hope that's the only prob
Any suggestions?
Last edited by PSBeachBum; May 23, 2013 at 04:48 PM.
