Boost Addict's 08 WRX Project - 233whp/334wtq - Pics, Vids, Dyno
#32
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
So I installed the K&N Typhoon, and it was a very straight forward install with minor surprises. I will post up detailed pictures of the install sometime soon when I have more time. But all in all, it turned out great. The fitment and construction of the unit are excellent! It's a very nice piece and was a great choice for what I was looking to accomplish. I have recently ditched the idea of the turbo inlet hose due to some of the installation directions. They appear to require cutting the factory unit and then rerouting things. I'm not too fond of that considering the potentially small gains to be had.
After installing the K&N, I reverted back from my 233/334 custom map to the stock mapping in order to prevent any problems. Are there gains? Absolutely. But those gains are felt in the mid-range to upper mid-range... On the stock mapping the turbos exhaustion at high revs is more apparent than on my customer tune. But also note that, as expected, power did drop off quite significantly in the lower end of the spectrum. Lugging the car around at low revs then wanting to spring into action doesn't feel as immediate as before. It feels heavier at lower revs. Not by a huge amount, but it is noticeable. I have no major problem with this as the new tune will certainly take advantage of every last drop this intake has to offer, so I'm at peace with a slight loss of grunt down low.
The sound is pretty intoxicating. It sounds like you're in your own personal air craft . If you have no music on, spool up begins as an wide-spread "shhhhhh" sound, but climbing in revs with load will narrow the sound to a focused and sharp "hissssss" as the turbo spools up quicker. Once off the throttle, the bypass valve is very noticeable with an easy-to-mimic "tishewwwww". It's kind of funny if you break it down... People will commonly call it a 'sneeze', but at least it's polite enough to ask for a "tisshhheewww". Get it? Tissue.
Some things to note about it's performance. The car has an easy time figuring out the AFRs and running properly when you're heavy on the throttle. It clings to 11.1 and won't let go. But there must be some reason the stock unit had an air straightener in the pipe. While the K&N has a built-in velocity stack, it will cause the car to stumble and figure it's timing out if you get on it after an initial light throttle. In other words, if you're cruising along say at 2500 rpm, and give the throttle a squeeze, it will need to sort itself out with a little lumpiness in power delivery. Now please note, I'm being really picky, it's not like something that's a disturbance or a massively upsetting feeling. It just doesn't feel as smooth as the custom map. And I can't quite speak for the car in stock form, as I don't remember it's build up of power too well. It could have had the same lumpiness in stock trim (I don't remember). But in the ECUs defense, I am running an Intake and Turboback on Stock parameters. That's never a good combination to run for a long period of time.
In short, the gains were a bit more than I expected from the intake. It certainly feels more robust and willing in the mid-range (compared to stock mapping) but that feeling could be amplified by the loss in power down low. But all in all, I am very satisfied with the intake and can't wait to see if the sound changes at all once the new turbo, tmic and bpv are installed next weekend. We are scheduled to drop the new parts in on Sunday the 11th, then get a new custom tune done on the 13th! Wish me luck in hitting 290+ whp
SOME PICTURES:

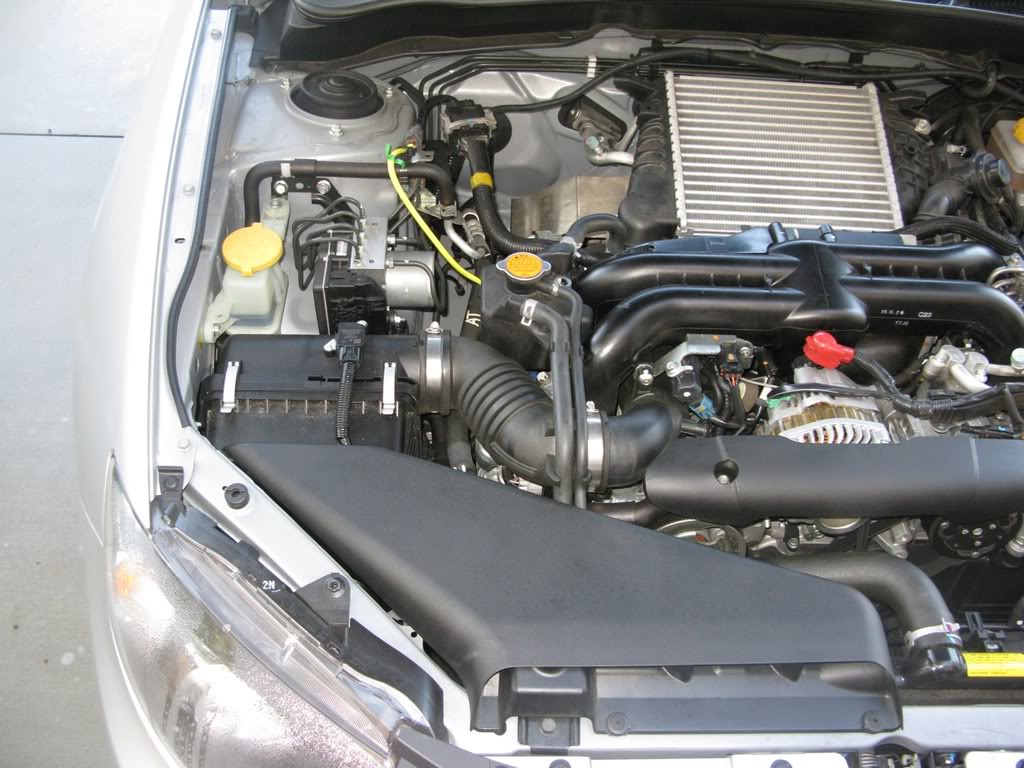

ENGINE BAY BEFORE K&N INSTALL
OEM RAM AIR INLET OUTLET WIDTH
OEM RAM AIR INLET OUTLET HEIGHT

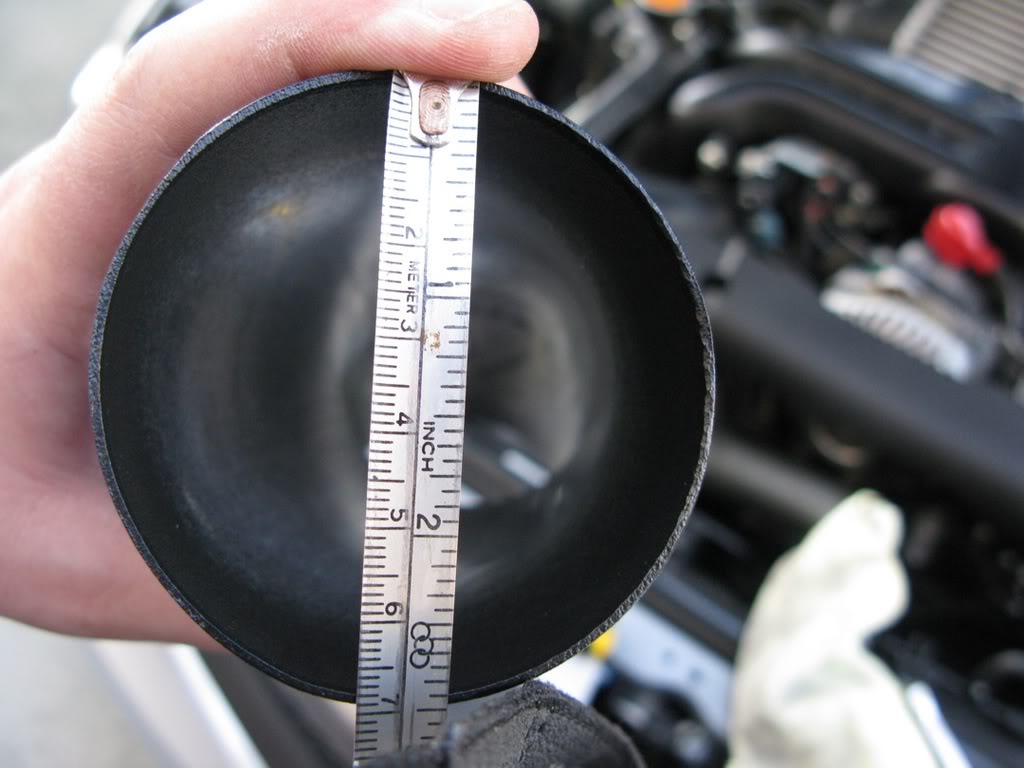

OEM POST-MAF EXIT TUBE DIAMETER
OEM POST-MAF TUBE INTERNAL CORRUGATION DETAIL
After installing the K&N, I reverted back from my 233/334 custom map to the stock mapping in order to prevent any problems. Are there gains? Absolutely. But those gains are felt in the mid-range to upper mid-range... On the stock mapping the turbos exhaustion at high revs is more apparent than on my customer tune. But also note that, as expected, power did drop off quite significantly in the lower end of the spectrum. Lugging the car around at low revs then wanting to spring into action doesn't feel as immediate as before. It feels heavier at lower revs. Not by a huge amount, but it is noticeable. I have no major problem with this as the new tune will certainly take advantage of every last drop this intake has to offer, so I'm at peace with a slight loss of grunt down low.
The sound is pretty intoxicating. It sounds like you're in your own personal air craft . If you have no music on, spool up begins as an wide-spread "shhhhhh" sound, but climbing in revs with load will narrow the sound to a focused and sharp "hissssss" as the turbo spools up quicker. Once off the throttle, the bypass valve is very noticeable with an easy-to-mimic "tishewwwww". It's kind of funny if you break it down... People will commonly call it a 'sneeze', but at least it's polite enough to ask for a "tisshhheewww". Get it? Tissue.
Some things to note about it's performance. The car has an easy time figuring out the AFRs and running properly when you're heavy on the throttle. It clings to 11.1 and won't let go. But there must be some reason the stock unit had an air straightener in the pipe. While the K&N has a built-in velocity stack, it will cause the car to stumble and figure it's timing out if you get on it after an initial light throttle. In other words, if you're cruising along say at 2500 rpm, and give the throttle a squeeze, it will need to sort itself out with a little lumpiness in power delivery. Now please note, I'm being really picky, it's not like something that's a disturbance or a massively upsetting feeling. It just doesn't feel as smooth as the custom map. And I can't quite speak for the car in stock form, as I don't remember it's build up of power too well. It could have had the same lumpiness in stock trim (I don't remember). But in the ECUs defense, I am running an Intake and Turboback on Stock parameters. That's never a good combination to run for a long period of time.
In short, the gains were a bit more than I expected from the intake. It certainly feels more robust and willing in the mid-range (compared to stock mapping) but that feeling could be amplified by the loss in power down low. But all in all, I am very satisfied with the intake and can't wait to see if the sound changes at all once the new turbo, tmic and bpv are installed next weekend. We are scheduled to drop the new parts in on Sunday the 11th, then get a new custom tune done on the 13th! Wish me luck in hitting 290+ whp
SOME PICTURES:
ENGINE BAY BEFORE K&N INSTALL
OEM RAM AIR INLET OUTLET WIDTH
OEM RAM AIR INLET OUTLET HEIGHT
OEM POST-MAF EXIT TUBE DIAMETER
OEM POST-MAF TUBE INTERNAL CORRUGATION DETAIL
#33
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
K&N POST-MAF TUBE INTERNAL DETAIL AND DIAMETER
K&N FILTER ADAPTER (VELOCITY STACK) DETAIL
K&N FILTER CAP DETAIL (CARBON FIBER PRINT)
K&N TYPHOON ASSEMBLY
K&N TYPHOON vs OEM INTAKE SYSTEM
K&N INSTALLED IN ENGINE BAY 1
K&N INSTALLED IN ENGINE BAY 2
K&N FILTER ADAPTER (VELOCITY STACK) DETAIL
K&N FILTER CAP DETAIL (CARBON FIBER PRINT)
K&N TYPHOON ASSEMBLY
K&N TYPHOON vs OEM INTAKE SYSTEM
K&N INSTALLED IN ENGINE BAY 1
K&N INSTALLED IN ENGINE BAY 2
#34
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
VIDEOS:
K&N TYPHOON - REVVING FROM OUTSIDE, (LOVELY RATTLING SOUND COURTESY OF COBB HEAT SHIELD)
K&N TYPHOON - INTERIOR SOUND TEST - WINDOWS UP, WINDOWS DOWN, WINDOWS UP + MUSIC
K&N TYPHOON - INTERIOR SOUND - HIGHWAY CRUISE
SHORT LAUNCH FOR WEBSITE PHOTO SHOOT
RETURNING LINE - GENTLE SPOOL AND PLUMB BACK
K&N TYPHOON - REVVING FROM OUTSIDE, (LOVELY RATTLING SOUND COURTESY OF COBB HEAT SHIELD)
K&N TYPHOON - INTERIOR SOUND TEST - WINDOWS UP, WINDOWS DOWN, WINDOWS UP + MUSIC
K&N TYPHOON - INTERIOR SOUND - HIGHWAY CRUISE
SHORT LAUNCH FOR WEBSITE PHOTO SHOOT
RETURNING LINE - GENTLE SPOOL AND PLUMB BACK
#36
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
I find that sound to be a real love/hate thing. People either can't stand it, while others drop their pants every time they hear it, haha. And thanks, I'm considering posting up a full write up for the intake install (I took so many pictures!), but the directions were very straight forward, so I figure the best I can do is create a supplemental guide.
#37
Registered User
iTrader: (2)
Join Date: Jul 2007
Location: mobile home
Posts: 3,781
Car Info: Porsche 911 GT3
I purchased this book before doing anything to my car. It has great tips and guidelines to what you should and should not to your car. Of course your car is much newer.
http://www.amazon.com/High-Performan...1119536&sr=8-1
http://www.amazon.com/High-Performan...1119536&sr=8-1
#39
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
#41
VIP Member
iTrader: (22)
Join Date: Jul 2006
Location: Vacaville
Posts: 9,542
Car Info: 2017 CWP WRX & 2007 SWP WRX
I find that sound to be a real love/hate thing. People either can't stand it, while others drop their pants every time they hear it, haha. And thanks, I'm considering posting up a full write up for the intake install (I took so many pictures!), but the directions were very straight forward, so I figure the best I can do is create a supplemental guide.
#42
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
...and yes, I'm a pant dropper too
#43
Registered User
iTrader: (4)
Join Date: Aug 2008
Location: Livermore
Posts: 2,127
Car Info: LUMPY CGM 05 WRX
How are you liking that K&N mine jacked my tune up pretty bad and the complaints of heating up my MAF so I switched it back to stock. Have you heard anything about making it better with a tune? I'm thinking of putting the silicone hose after the MAF. Anyway great job documenting the tune very helpful
#44
VIP Member
Thread Starter
Join Date: Apr 2003
Location: Orange County, CA
Posts: 846
Car Info: 08 WRX - 401whp/408wtq
How are you liking that K&N mine jacked my tune up pretty bad and the complaints of heating up my MAF so I switched it back to stock. Have you heard anything about making it better with a tune? I'm thinking of putting the silicone hose after the MAF. Anyway great job documenting the tune very helpful
I too considered a silicone hose solution after the maf, it would be ideal, but I do appreciate the K&Ns piping all the same. I just wish it would have had an air straightener like stock, for more consistent readings. I expect that with the custom tune, things should run very nicely. At the moment though, it certainly feels a little stumbly when you demand power or increase load immediately, in comparison to my custom tune.
Last edited by Boost Addict; 01-05-2009 at 02:10 PM.
