Notices

offsets and spacers 02 L

Old 07-11-2013, 03:15 PM
  #16
If in doubt, FLAT OUT
iTrader: (32)

04GG's Avatar

Join Date: Oct 2010
Location: Nor Cal SJ
Posts: 6,792
Car Info: 04GGB again! and a blue car
Originally Posted by joshuawoodall View Post
The question was to put out to find out how much rubber I can get under the car, because I have not set a forester up as of yet, the rest of your information is great but seeing as already successfully tuned two subarus those aren't the things I need help answering, but thank you for your input, did somebody say +15? Is there any other input about the offset, the suspension talk isn't needed
Effectively, the tire/rim setup is part of your suspension. Wider tires is NOT the direct answer to understeer and I agree with what is being said here by the others. If your question is how to eliminate understeer; what you are asking about is not the correct solution to that question.
04GG is offline
Old 07-11-2013, 03:33 PM
  #17
Technical Know-It-All

Brfatal's Avatar

Join Date: Oct 2003
Location: Sterling, VA
Posts: 2,128
Car Info: '02 WRX + '15 WRX
Originally Posted by 04GG View Post
Effectively, the tire/rim setup is part of your suspension. Wider tires is NOT the direct answer to understeer and I agree with what is being said here by the others. If your question is how to eliminate understeer; what you are asking about is not the correct solution to that question.
Exactly my point.

Sway bars and springs will do vastly more to reduce understeer than staggering the offset and you won't get the negatives that come with lowering the effective offset. The only real benefit to widening the wheel base is increased high speed stability, which is something you're not going to be able to take advantage of without hitting a track. The negative consequences include reduced steering response, reduced steering feel, more effort in steering, increased tramlining, reduced tire contact patch (compared to an equal width wheel and tire of a higher offset), and accelerated wear and tear on everything between the steering rack and the hubs (which was previously mentioned).

To answer your question though, you do technically have room to fit a 10mm spacer without rubbing, especially at stock ride height.
Brfatal is offline
Old 07-11-2013, 03:53 PM
  #18
Registered User
Thread Starter

joshuawoodall's Avatar

Join Date: Jul 2013
Location: Redwood City ca.
Posts: 7
Car Info: 2002 forester
All good info, assuming the first question was ever answered. But it wasn't the question is what CAN, not already does, fit inside the wheel well at stock ride height WITH 10mm of spacing in the front and 5mm of spacing in the rear, again I appreciate your tutorial on suspension but it's not needed what's needed is the knowledge of someone who has tested this cenario so I don't have to.


Nevermind ill call somebody
joshuawoodall is offline
Old 07-11-2013, 04:16 PM
  #19
Registered User
iTrader: (9)

02RS25's Avatar

Join Date: Sep 2011
Location: Los Altos, CA
Posts: 3,037
Car Info: 2002 Impreza RS, 2005 Impreza RS-20K
Originally Posted by joshuawoodall View Post
All good info, assuming the first question was ever answered. But it wasn't the question is what CAN, not already does, fit inside the wheel well at stock ride height WITH 10mm of spacing in the front and 5mm of spacing in the rear, again I appreciate your tutorial on suspension but it's not needed what's needed is the knowledge of someone who has tested this cenario so I don't have to.


Nevermind ill call somebody
prob a good idea if you refuse to take peoples advice. people who actually are very knowledgeable about this "scenario".

and TBH i doubt youll find someone in the same scenarios. thats a very weird and unheard of scenario. many if not all the people you talk to will say ditch the spacers and do your research for the right size wheels. they will also say that if you plan on doing that, its useless unless you modify the suspension to compensate for as BrFatal was saying: increase in weight, increase in resistance both rolling and turning, and if u plan on going with that S/S combo, that youll need to do more mods
02RS25 is offline
Old 07-11-2013, 05:02 PM
  #20
Registered User
iTrader: (13)

Gancherov's Avatar

Join Date: Nov 2009
Location: Sunnyvale, CA
Posts: 1,033
Car Info: 02 WRX Wagon
I'm so sorry that this is the state of i-club today.

Getting back to your original question, I'm not 100% sure what you can fit under your fender but you will be ~10mm from hitting the strut/spring perch with a 265mm wide (stack height) tire on a 17x7 +53 wheel with no spacer. If you want to stop by and try these wheels and tires and take some measurements you are welcome to PM me.

I also have some 15s with rally tires and 16s with oversize (27") street tires handy to test fit/measure if you'd like.

Here is my favorite forester build thread:
ForeSTAR
Name:  milesfoz01.jpg
Views: 223
Size:  60.8 KB

he's got a 17x10.5 +20, but he has coilovers and modified fenders so its probably of limited use to you.
Gancherov is offline
Old 07-11-2013, 05:08 PM
  #21
Registered User
iTrader: (9)

02RS25's Avatar

Join Date: Sep 2011
Location: Los Altos, CA
Posts: 3,037
Car Info: 2002 Impreza RS, 2005 Impreza RS-20K
Originally Posted by Gancherov View Post
I'm so sorry that this is the state of i-club today.

Getting back to your original question, I'm not 100% sure what you can fit under your fender but you will be ~10mm from hitting the strut/spring perch with a 265mm wide (stack height) tire on a 17x7 +53 wheel with no spacer. If you want to stop by and try these wheels and tires and take some measurements you are welcome to PM me.

I also have some 15s with rally tires and 16s with oversize (27") street tires handy to test fit/measure if you'd like.

Here is my favorite forester build thread:
ForeSTAR


he's got a 17x10.5 +20, but he has coilovers and modified fenders so its probably of limited use to you.
that is one sexy looking fozzy. OP. get urs to look like that!
02RS25 is offline
Old 07-16-2013, 12:45 PM
  #22
If in doubt, FLAT OUT
iTrader: (32)

04GG's Avatar

Join Date: Oct 2010
Location: Nor Cal SJ
Posts: 6,792
Car Info: 04GGB again! and a blue car

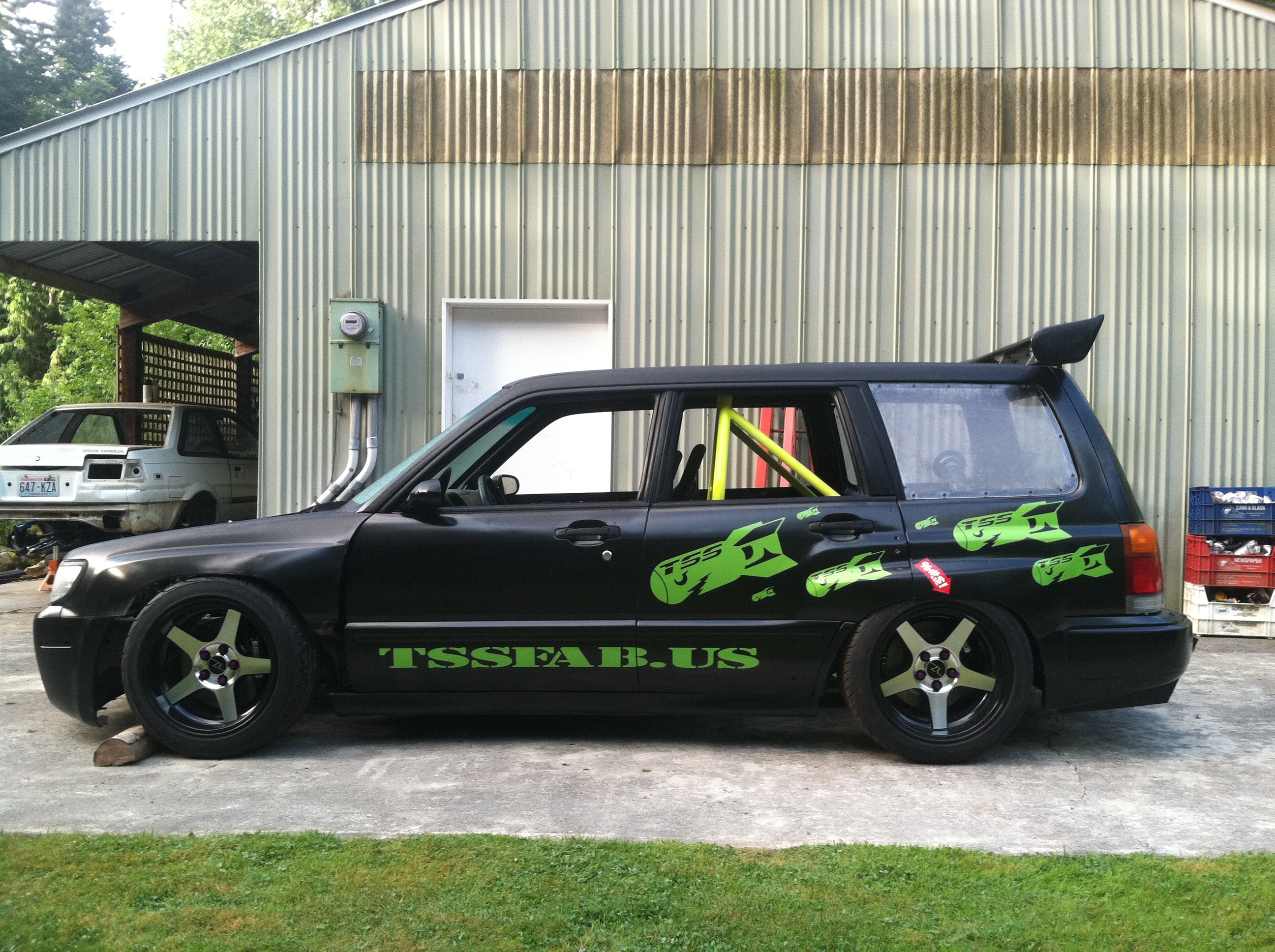

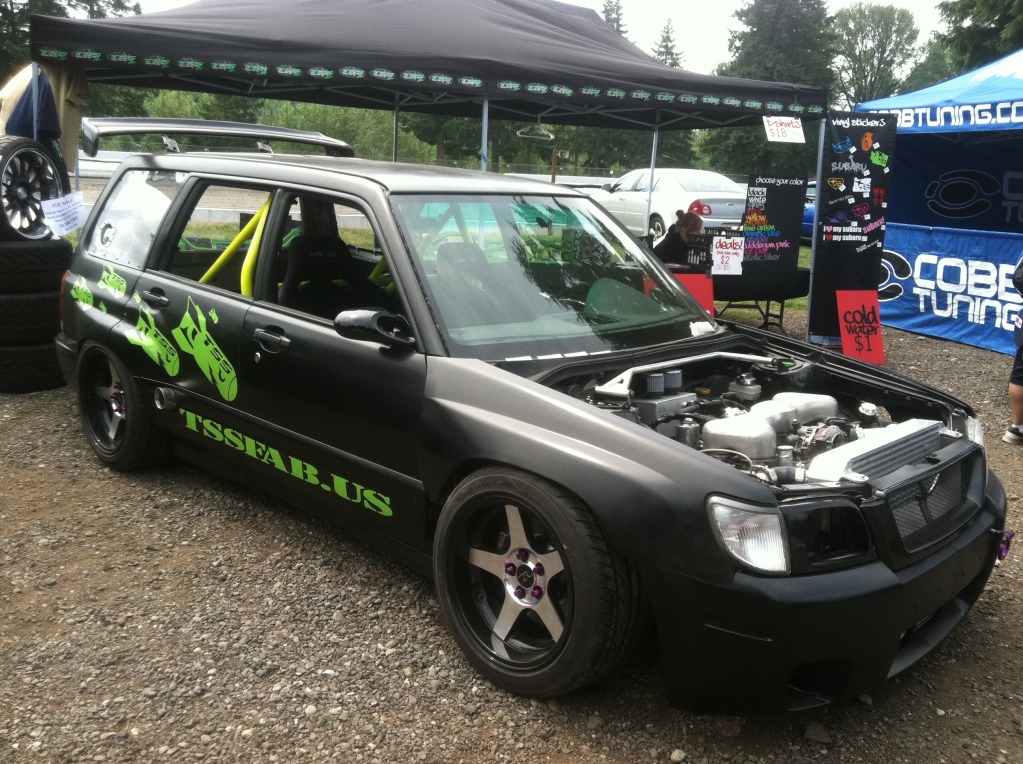

That car is definitely not using "normal" suspension He pretty much fabricated it himself.

Name:  Forester269.jpg
Views: 343
Size:  287.5 KB
Name:  Fozzy03.jpg
Views: 177
Size:  14.36 MB

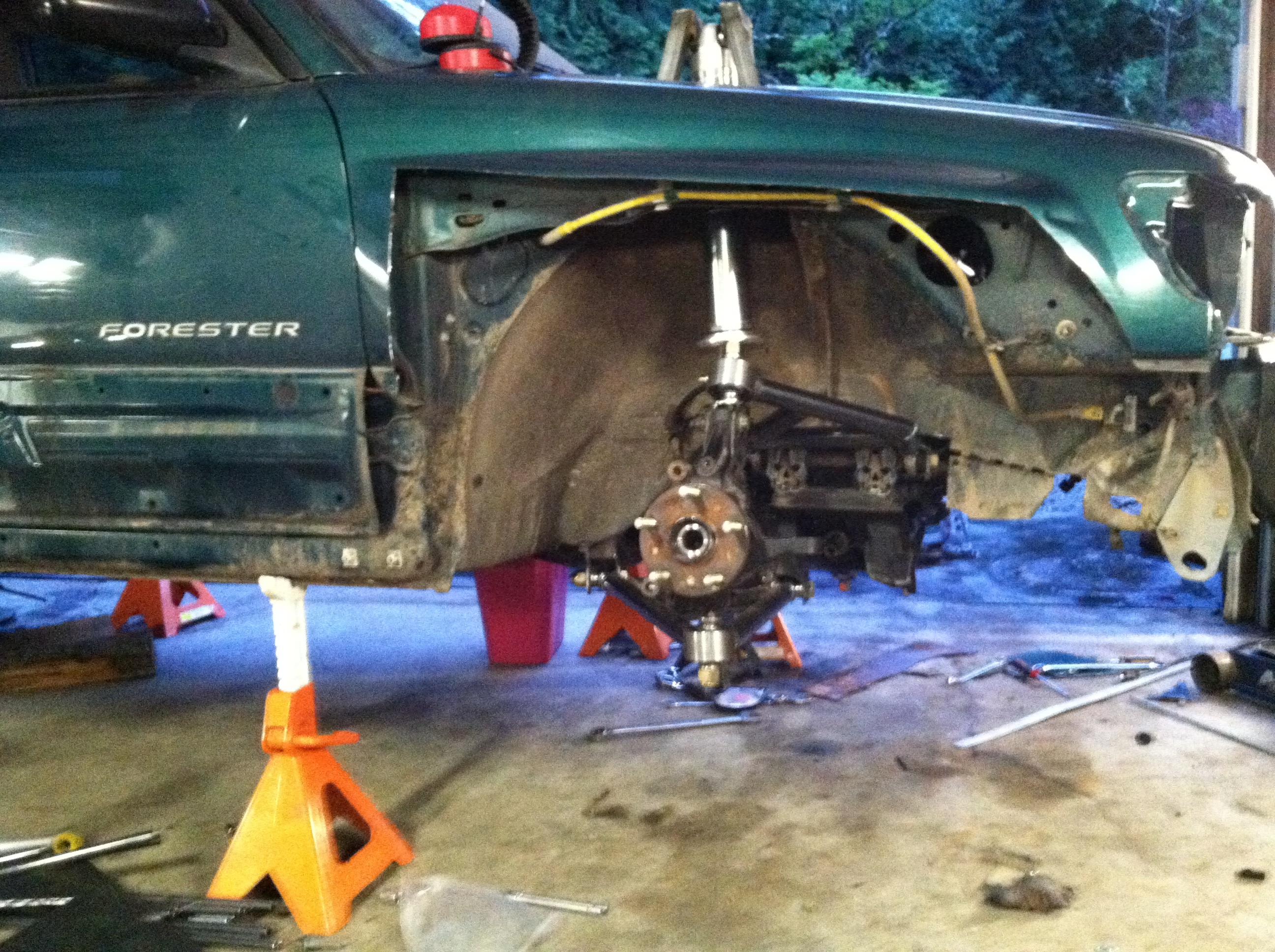

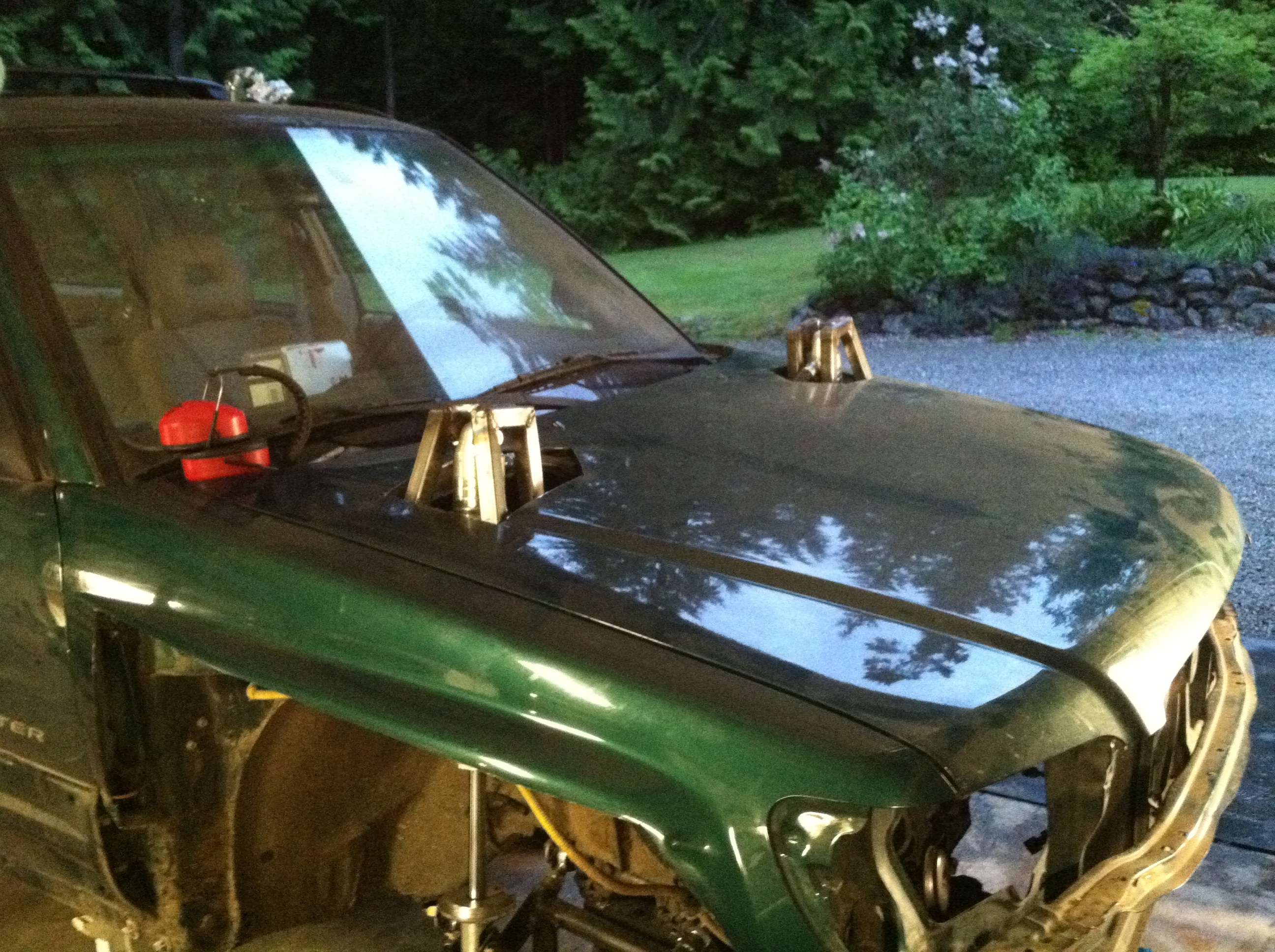

Stage 2 with the next one
Name:  image_zpse885ae1a.jpg
Views: 132
Size:  1.95 MB
Name:  image_zps0693a92c.jpg
Views: 124
Size:  1.78 MB

Last edited by 04GG; 07-16-2013 at 12:51 PM.
04GG is offline
