2006 fog light kit
has anyone bought/ installed the fog light kit on there 2006 2.5i's ?
https://www.subarugenuineparts.com/p...roducts_id=934
and would it be good to get it from sgp ^ or somewhere else ?
https://www.subarugenuineparts.com/p...roducts_id=934
and would it be good to get it from sgp ^ or somewhere else ?
VIP Member
iTrader: (4)
Joined: Jul 2004
Posts: 4,143
From: Yokohama, Japan
Car Info: Ver IV STi Wagon
Should be pretty simple. If you take off the foglight covers there is a wiring harness right there. I am assuming it is for the foglights.
As far as the switch inside the caar...I would imagine it is already there too.
As far as the switch inside the caar...I would imagine it is already there too.
I bought the kit from SGP. Very easy to install. Just have to pull back liner from under bumper too install 2 bolts too lights. Oem wireing connectors already there(taped into harness near opening. Pull out dummy plug from left side dash where switch would be if it came with fogs(far left) attached to this dummy plug, is your switch connector, just have to plug in relay which is beside fuse box under steering wheel. Instructions are very detailed, the covers just pop out by prying out at slot at bottom of fog light covers. Pop in new covers. Best bang for your buck is with SGP
Registered User
iTrader: (2)
Joined: Feb 2006
Posts: 1,900
From: Baja Oregon
Car Info: '05 Impreza Outback Sport ~ "WTF! Two-Toned?"
Originally Posted by J-Chow
Selective Yellow from DSL is the way!

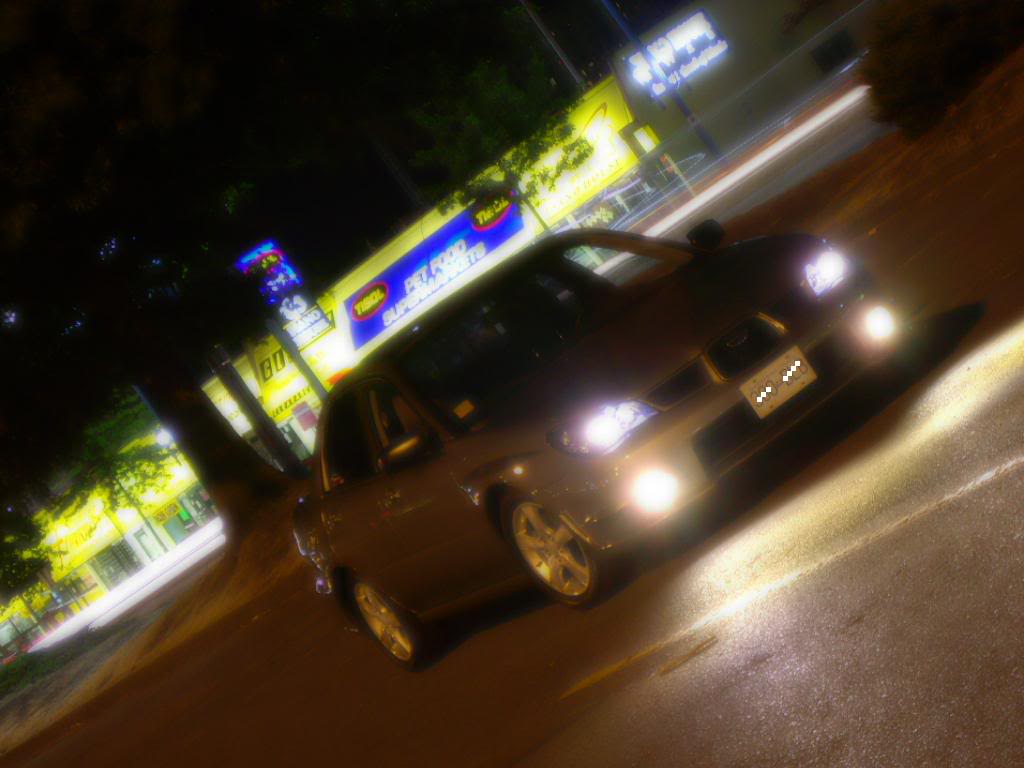

not the best pics, but oh wells:


Low beams - Osram silverstars
Parking lights - white LED
High beams - not shown - stock
Foglights - 55W Tungsram Gold (produces selective-yellow light)
I'll try to get better pics with a better camera


Low beams - Osram silverstars
Parking lights - white LED
High beams - not shown - stock
Foglights - 55W Tungsram Gold (produces selective-yellow light)
I'll try to get better pics with a better camera
Not sure if you're still in the market but...This is a super easy install. The toughest part was getting under the mounting location for the fogs in order to get a ratchet on the attaching bolt. Its really a plug-n-play sort of thing. Plus they look sweet and are extremely functional.
Last edited by mdungelman; Oct 28, 2006 at 12:56 PM. Reason: wrong freakin' link.
