fmic and creative intake
12-14-2004, 10:15 PM
#4
Yeah, You've Probably Never Heard Of Me.
iTrader: (21)
Join Date: Sep 2003
Location: in a glass case of emotion.
Posts: 17,962
Car Info: 345/30/19s
Originally Posted by marko
water will go in the intake
best thing to do is try to get the filter poking into the fender well then seal the other holes, I just did this last weekend
12-14-2004, 11:16 PM
#5
Guest
Posts: n/a
Originally Posted by marko
water will go in the intake
I realize i'm sort of a WRC freak, but does anyone know how they do it? And why?
12-14-2004, 11:27 PM
#6
Registered User
iTrader: (12)
Join Date: Nov 2002
Location: Reno, NV
Posts: 18,369
Car Info: 1993/2000/2001 GF4 mostly red
The hood scoop on the WRC car is there only to make the car look like the production car. The actual intake is in the fender, like everybody has been suggesting you do.
12-14-2004, 11:40 PM
#8
Yeah, You've Probably Never Heard Of Me.
iTrader: (21)
Join Date: Sep 2003
Location: in a glass case of emotion.
Posts: 17,962
Car Info: 345/30/19s
Originally Posted by dnegreiro
i guess so. I was just wondering if there was any new bright ideas.
Theres alot of cars that incorporate ram air induciton from the factory effectivly and they're not all littering the sides of the highways during rainstorms from hydrlock
though if you do try to make this kind of setup I would suggest incorporating a low point before the filter with a small hole in the bottom were moisture can run out. Let us how it goes!
12-15-2004, 12:03 AM
#9
Guest
Posts: n/a
look at the picture of the WRC engine. I don't know if it'd work for practical uses, but i just think this setup is genious, and i was wondering how much we can incorporate into the WRX
http://forums.nasioc.com/forums/showthread.php?t=681786
http://forums.nasioc.com/forums/showthread.php?t=681786
12-15-2004, 12:08 AM
#10
Registered User
iTrader: (2)
Join Date: May 2003
Location: Mountain View, CA
Posts: 627
Car Info: '07 FXT Sport / '96 STiL
Originally Posted by BAN SUVS
The hood scoop on the WRC car is there only to make the car look like the production car. The actual intake is in the fender, like everybody has been suggesting you do.
See the thread/pics linked by the previous post. That's one bigass air filter!
12-15-2004, 12:17 AM
#11
Guest
Posts: n/a
i noticed the mistake and it made me ask does "staff member" have any meaning? i'm extremly new to the site. Are staff members supposed to be the most knowledgeable, i understand this is a simple mistake either way, but i took the advice fairly weighted simply because it said "staff member"
On another note, maybe an intake that way, if using an aps fmic, but maybe some sort of way to design it so it it could force the air into a filter box then to the turbo, just a thought, i mean it would seem to make some sense, unless there's no space.
On another note, maybe an intake that way, if using an aps fmic, but maybe some sort of way to design it so it it could force the air into a filter box then to the turbo, just a thought, i mean it would seem to make some sense, unless there's no space.
12-15-2004, 12:27 AM
#12
Registered User
iTrader: (2)
Join Date: May 2003
Location: Mountain View, CA
Posts: 627
Car Info: '07 FXT Sport / '96 STiL
Originally Posted by dnegreiro
i noticed the mistake and it made me ask does "staff member" have any meaning? i'm extremly new to the site. Are staff members supposed to be the most knowledgeable, i understand this is a simple mistake either way, but i took the advice fairly weighted simply because it said "staff member"
On another note, maybe an intake that way, if using an aps fmic, but maybe some sort of way to design it so it it could force the air into a filter box then to the turbo, just a thought, i mean it would seem to make some sense, unless there's no space.
On another note, maybe an intake that way, if using an aps fmic, but maybe some sort of way to design it so it it could force the air into a filter box then to the turbo, just a thought, i mean it would seem to make some sense, unless there's no space.
12-15-2004, 12:52 AM
#13
Yeah, You've Probably Never Heard Of Me.
iTrader: (21)
Join Date: Sep 2003
Location: in a glass case of emotion.
Posts: 17,962
Car Info: 345/30/19s
Originally Posted by dnegreiro
i noticed the mistake and it made me ask does "staff member" have any meaning? i'm extremly new to the site. Are staff members supposed to be the most knowledgeable, i understand this is a simple mistake either way, but i took the advice fairly weighted simply because it said "staff member"
no, not even
You must not only be extremly new to this site, but extremly new to forums in general if think that people become moderators by being the smartest people on the site
That said, I too do not belive that actuall WRC cars use the scoop for an intake, lets google it shall we!
12-15-2004, 01:03 AM
#14
Yeah, You've Probably Never Heard Of Me.
iTrader: (21)
Join Date: Sep 2003
Location: in a glass case of emotion.
Posts: 17,962
Car Info: 345/30/19s

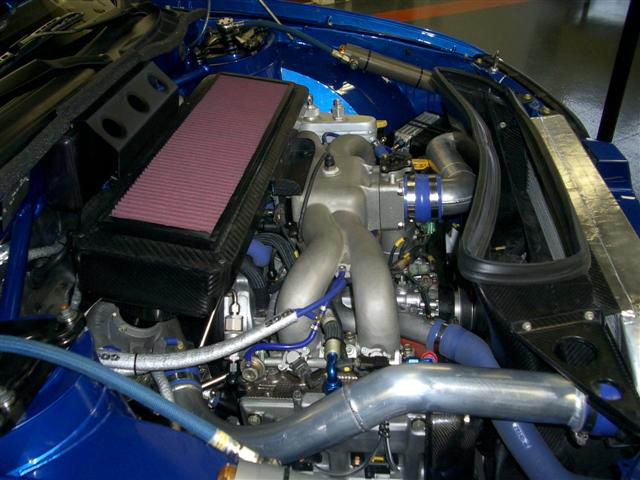

well heres your answer, BAN was correct, the scoop on the WRC is NOT functional, here you can see the carbon fiber ducting is actually going to the hood reverse scoop, and this is to pull air up through the front of the intercooler and to act as a secondary air dam for increased downforce, hope that clears it up
