avc-r pic and invida downpipe

hi all i have some install pic's of downpipe and apexi avcr. i do not no how to post a pic so could i email them to someone and thay post them for me or show me how to do it myself. i will get into the downpipe once i post the piscs. thanks

Apr 20, 2003 | 10:58 PM

Irok_1_wrx

Guest

Posts: n/a

testing pic

Attached Thumbnails

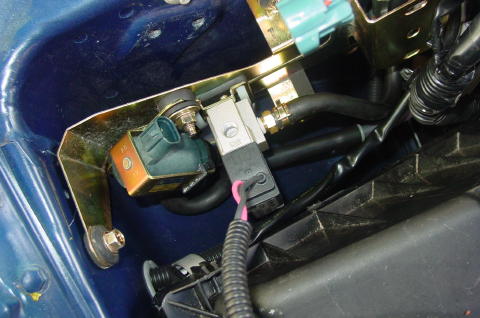

avc-r pic and invida downpipe-bc-loc.jpg

Apr 20, 2003 | 11:03 PM

Irok_1_wrx

Guest

Posts: n/a

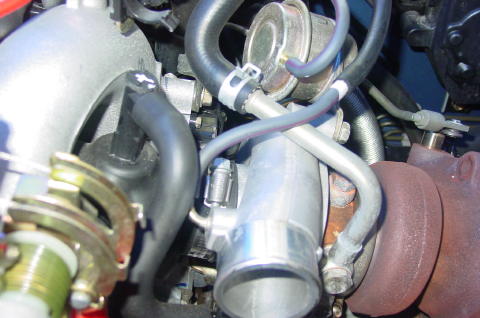

is this the right place to hook up a avcr to wrx the one of the gold piece is to com the other it to on

Attached Thumbnails

Apr 22, 2003 | 07:24 PM

EtchyLives

VIP Member

iTrader: (1)

Joined: Nov 2002

Posts: 2,518

From: Plymouth, MN

Car Info: 94 T-Leg Sedan and a 00 M5

Irok_1_wrx I've got some nice, labelled pics of the AVC-R install. However, they're too big to post. email me and I'll send them too you. You'll need to have enough room for 1-2MB of pics.
-Etch

Apr 22, 2003 | 07:27 PM

EtchyLives

VIP Member

iTrader: (1)

Joined: Nov 2002

Posts: 2,518

From: Plymouth, MN

Car Info: 94 T-Leg Sedan and a 00 M5

Quote:

Originally posted by Irok_1_wrx
is this the right place to hook up a avcr to wrx the one of the gold piece is to com the other it to on

BTW, that is right. The wastegate (gold piece) goes to the COM, and the turbo inlet goes to the NO.

Also, make sure you reconnect the factory boost solenoid. Make a loop with vac hose from one side to the other, and plug it in. If yoiu don't you will get a CEL.

May 1, 2003 | 11:18 PM

itsallgookx51

Registered User

iTrader: (1)

Joined: Dec 2002

Posts: 284

hey where did u mount the avcr? i just got mine today and i have no clue on where to put it. thanx for any info

chris

itsallgook@hotmail.com

May 2, 2003 | 12:21 AM

EtchyLives

VIP Member

iTrader: (1)

Joined: Nov 2002

Posts: 2,518

From: Plymouth, MN

Car Info: 94 T-Leg Sedan and a 00 M5

Quote:

Originally posted by itsallgookx51
hey where did u mount the avcr? i just got mine today and i have no clue on where to put it. thanx for any info

chris

itsallgook@hotmail.com

You can put it wherever you want

. I had mine in front of the cigarette lighter. (Not good) Others put theirs up on the dash. If you have an aftermarket CD Deck you can put it in the empty DIN underneath the new head unit. You can buy a guage pod and modify it to hold the AVC-R, too. It just depends on how visible you want it for you, and for anybody scoping out your car.
-Etch
