Need a little help putting (a 2000 RS project car) back together
#1
Need a little help putting back together
So i bought this 2000 RS as a project car. the kid ripped the damn thing apart because he was turning it into a "drag" car. pulled out the gas tank, stripped the interior, motor swap....anyways, i need some help figuring out where some stuff goes.

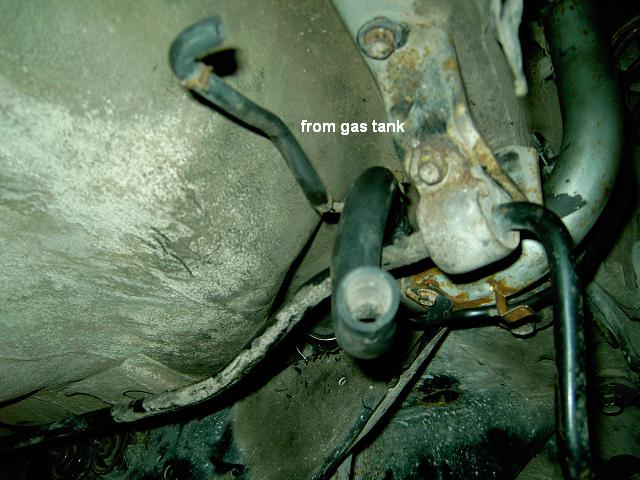

i got the gas tank back in but there are a couple lines that i haven't a clue where they go.... picture one is from the pass. side rear wheel well. there is a big line that comes off the tank and runs to the rear to the charcoal canister i think...but i dont know where the little line goes.....it comes off of the big one.
picture 2...there is a second line that i dont know where to hook up. it is to the right (passenger) side of the gas tank....i think it has a selonoid hooked up to it. but i cant find where to hook it up.
picture 3... its a EJ20H engine and each side over the valve cover has this black thing with a hose that come off of it.
sorry for all the noob questions. any help is greatly apreciated.
thanks again!
i got the gas tank back in but there are a couple lines that i haven't a clue where they go.... picture one is from the pass. side rear wheel well. there is a big line that comes off the tank and runs to the rear to the charcoal canister i think...but i dont know where the little line goes.....it comes off of the big one.
picture 2...there is a second line that i dont know where to hook up. it is to the right (passenger) side of the gas tank....i think it has a selonoid hooked up to it. but i cant find where to hook it up.
picture 3... its a EJ20H engine and each side over the valve cover has this black thing with a hose that come off of it.
sorry for all the noob questions. any help is greatly apreciated.
thanks again!
#3
VIP Member
iTrader: (3)
Join Date: Nov 2002
Location: Lastweek Lane - Watertown, NY
Posts: 10,133
Car Info: 02WRXpseudoSTiWannabeWagon
http://gpatmac.com/SubaruPics/manual...ister.diag.jpg
http://gpatmac.com/SubaruPics/manual...iller.diag.jpg
http://gpatmac.com/SubaruPics/manual...lines.diag.jpg
http://gpatmac.com/SubaruPics/manual/fuel.pump.diag.jpg
http://gpatmac.com/SubaruPics/manual...nsors.diag.jpg
http://gpatmac.com/SubaruPics/manual/fuel.tank.diad.jpg
3rd pic is a part of your PCV system. It generallly routes back into the intake, but the PCV is T'd in in order to add vacuum.
I'll snap a pic of where mine is routed to later on. I could tell you if it were wrx, but I haven't played around in my rs at all.
Manuals: http://www.ken-gilbert.com/wrx/impreza_manuals.htm
http://gpatmac.com/SubaruPics/manual...iller.diag.jpg
http://gpatmac.com/SubaruPics/manual...lines.diag.jpg
http://gpatmac.com/SubaruPics/manual/fuel.pump.diag.jpg
http://gpatmac.com/SubaruPics/manual...nsors.diag.jpg
http://gpatmac.com/SubaruPics/manual/fuel.tank.diad.jpg
3rd pic is a part of your PCV system. It generallly routes back into the intake, but the PCV is T'd in in order to add vacuum.
I'll snap a pic of where mine is routed to later on. I could tell you if it were wrx, but I haven't played around in my rs at all.
Manuals: http://www.ken-gilbert.com/wrx/impreza_manuals.htm
Last edited by gpatmac; 02-13-2006 at 05:31 AM.
