well i've finally started revamping my '02 rex interior.
it's not really original but none-the-less it looks good so far. i'm doing red and i figured i'd post pics along the way.. if anyone needs help feel free to PM me rather then post since there are some good posts and a really good sticky by Salty on this subject (you can also check out nasioc.com - they have some good posts on this subject matter).
so far i've only recieved the bulb covers which i used for my buddy's sti (i/c spray and light level selector switch) as well as on my fog light switch and cruise control. i painted the driver side window controls but they're too dim to really see - i might wire in some 12v led's under the switches to brighten them up, but they're really the least of my concerns. tomorrow or the next day i should have my bulbs to do hvac, radio, cluster and i'll paint the glass onmy clock red with glass paint - so i'll be sure to post pics of my work.
but so far here ya go:


peace - dub.



got my led's today.. i'll have pics tonight of the radio and hvac for sure possibly the cluster, just depends on if i decide to spend the extra time on it or not!
oh and btw my pic's quality is pretty bad due to i'm snappin' pics with my cell.
peace, dub.

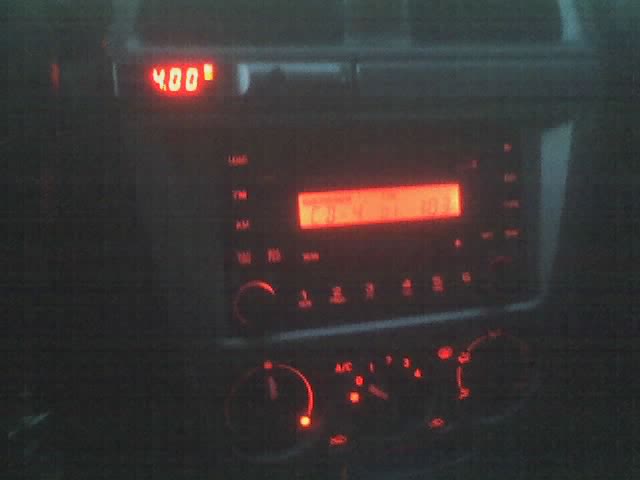

here's my radio and hvac that is done. unfortunately i couldn't shave enuff plastic off of the super bright 194 led's to fit in the hvac, so i used #74's in red. there is a little bit of dimming to either end (right & left) of the hvac so i painted the stockers and i'll put them in tomorrow when they dry..
peace, dub.
here's the pic -



pretty cool. did you have to open up the radio and hvac??? and where did you get the bulbs for it??? i know you can do it for the cluster i am very curious how you did this? thanks



the radio you have to basically disassemble. the hvac comes out when the radio is removed and there are two bulbs behind it. i used a combination of bulb covers .10" (www.partsexpress.com) and red led's for the hvac found at (www.superbrightleds.com)
the cluster can be done, i forgo'ed doing mine b/c i'm selling/ trading the car for an '05 sti. you have to complete remove the cluster, sand all the green film off behind the cluster it self and cover all 6 (i believe) bulbs with covers.
most important!! there are many stickies on i-club as well as nasioc about this subject. all with detailed instructions and pictures provided to make it as easy as can be - which i might add it is really easy to do this mod.
good luck!



i know there is threads on this...... but its times out(like a dead link).... so i was hoping you can send me a another link of the disassembly. thanks



yo ej20boost here ya go:
http://forums.nasioc.com/forums/showthread.php?t=690333
that should be it.. it also has other links to changing the lighting of other parts as well.
-dub.
