Torque Specs
Anyone know the torque specs for the valve cover bolts? Im gonna be replacing the gasket to hopefully stop my oil leak on friday and I want to make sure im torquing them properly. Its on a 2002 WRX motor.
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)

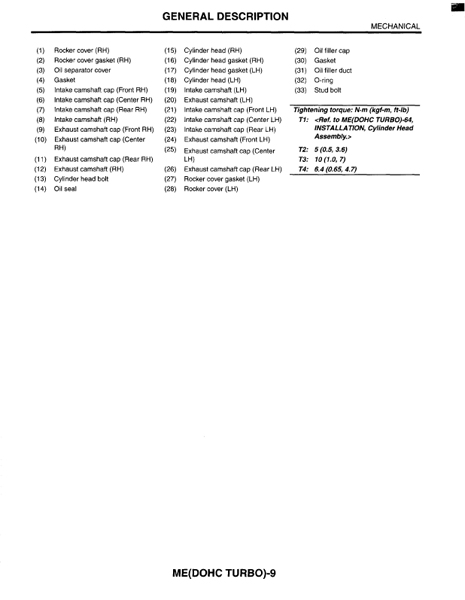

according to the 2002-2003 Subaru FSM it is supposed to be:
T2 (valve cover bolts) 5 N•m (0.5kgf-m, 3.6 ft.lbs)
please see attached
Jon
T2 (valve cover bolts) 5 N•m (0.5kgf-m, 3.6 ft.lbs)
please see attached
Jon
Last edited by iNfEk; Aug 31, 2005 at 04:56 PM.
VIP Member
iTrader: (23)
Joined: Feb 2004
Posts: 4,128
From: Driving the Green Beast
Car Info: Version 7.5 2002 STi
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
no the STI ones are tighter. There was actually a recall notice for 2004 STI models that state that the valve cover bolts were not tightened down enough causing oil to leak out of the seal.

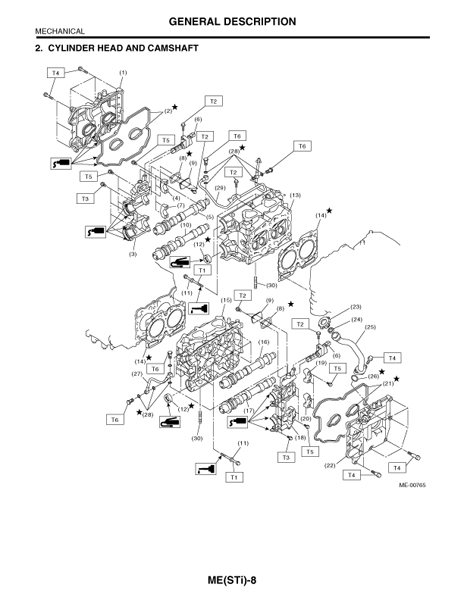

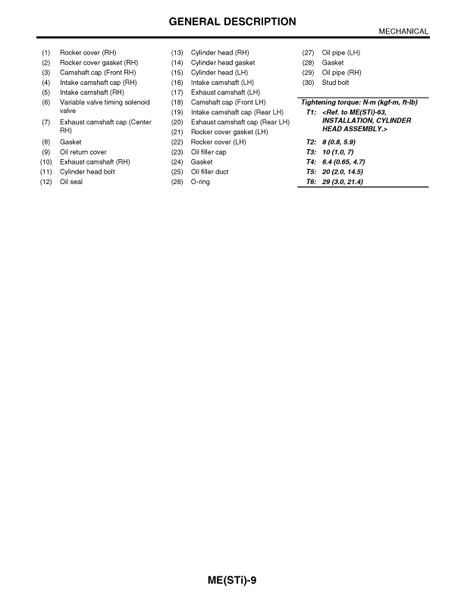

According to the STI manual the torque specs should be:
T4 (Valve Cover Bolts): 6.4 N•m (0.65 kgf-m, 4.7 ft. lbs)
Jon
2004 Subaru Impreza WRX STi NHTSA Recall ID Number: 04V473000
Recall Date: OCT 01, 2004
Component: ENGINE AND ENGINE COOLING
Potential Units Affected: 26
Summary: ON CERTAIN PASSENGER AND SPORT UTILITY VEHICLES, THE COVER BOLTS FOR THE ENGINE OIL CONTROL VALVE MAY NOT BE SUFFICIENTLY TIGHTENED, ALLOWING OIL TO LEAK FROM AROUND THE COVER GASKET.
Consequence: IF LEAKING OIL CONTACTS COMPONENTS OPERATING AT HIGH TEMPERATURES, A FIRE COULD RESULT IN THE ENGINE COMPARTMENT.
Remedy: DEALERS WILL INSPECT AND RETIGHTEN THE OIL-FLOW CONTROL VALVE COVER BOLTS. THE RECALL BEGAN ON OCTOBER 8, 2004. OWNERS SHOULD CONTACT SUBARU AT 1-800-782-2783.
Notes: SUBARU OF AMERICA, INC., WWU-05
Recall Date: OCT 01, 2004
Component: ENGINE AND ENGINE COOLING
Potential Units Affected: 26
Summary: ON CERTAIN PASSENGER AND SPORT UTILITY VEHICLES, THE COVER BOLTS FOR THE ENGINE OIL CONTROL VALVE MAY NOT BE SUFFICIENTLY TIGHTENED, ALLOWING OIL TO LEAK FROM AROUND THE COVER GASKET.
Consequence: IF LEAKING OIL CONTACTS COMPONENTS OPERATING AT HIGH TEMPERATURES, A FIRE COULD RESULT IN THE ENGINE COMPARTMENT.
Remedy: DEALERS WILL INSPECT AND RETIGHTEN THE OIL-FLOW CONTROL VALVE COVER BOLTS. THE RECALL BEGAN ON OCTOBER 8, 2004. OWNERS SHOULD CONTACT SUBARU AT 1-800-782-2783.
Notes: SUBARU OF AMERICA, INC., WWU-05
T4 (Valve Cover Bolts): 6.4 N•m (0.65 kgf-m, 4.7 ft. lbs)
Jon
Last edited by iNfEk; Aug 31, 2005 at 05:08 PM.
