Originally posted by boloheadrat

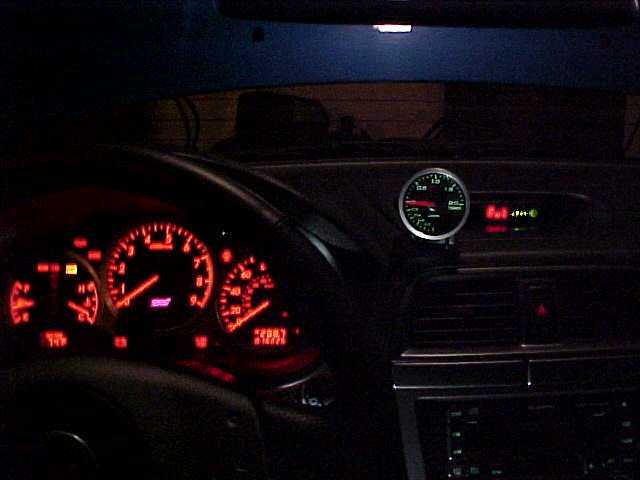

The STi Genome boost gauge has a control unit to drive the gauge and provide peak and recording function. It is supposedly plug and play, it comes with a plug that connects to an existing harness. Apparently The USDM WRX doesn't have this harness... It's just for power and ground and stuff, but we didn't want to misidentify any wires. Now we know, so let's finish it. It must suck looking at a dark, limp gauge
The STi Genome boost gauge has a control unit to drive the gauge and provide peak and recording function. It is supposedly plug and play, it comes with a plug that connects to an existing harness. Apparently The USDM WRX doesn't have this harness... It's just for power and ground and stuff, but we didn't want to misidentify any wires. Now we know, so let's finish it. It must suck looking at a dark, limp gauge
What did you did with the white and orange wires?
Registered User
iTrader: (33)
Joined: Nov 2002
Posts: 10,455
From: Boostin' troubles away - 4EAT Memories 12.87@103.2
Car Info: 51E LHD V7 STI (2.0)
This might help! This is the same image that I posted earlier that is now a red X
Jon
this is what's in the small text in the picture
RED WIRE: POWER
ORANGE WIRE: IGNITION
WHITE WIRE: ILLUMINATION
BLACK WIRE: GROUND
hope this helps!
Jon
this is what's in the small text in the picture
RED WIRE: POWER
ORANGE WIRE: IGNITION
WHITE WIRE: ILLUMINATION
BLACK WIRE: GROUND
hope this helps!
