Dual Boost Control setup

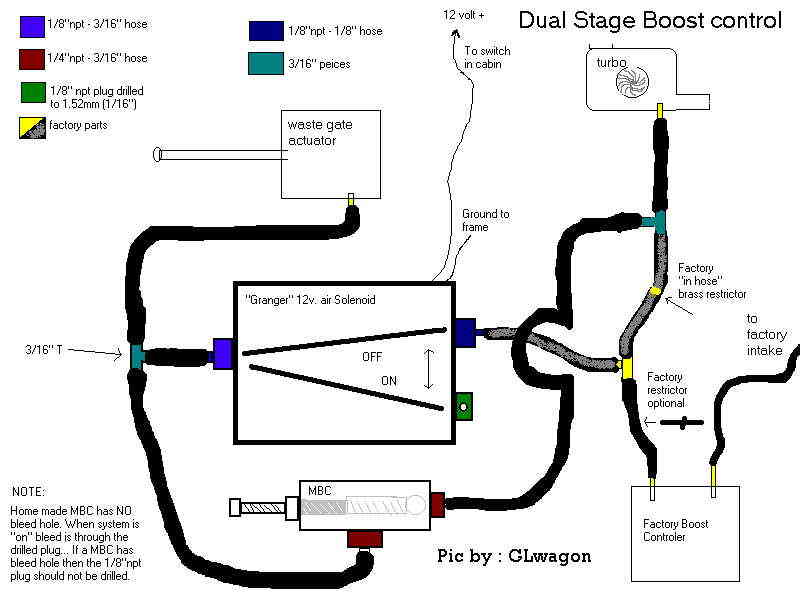

I'm trapped at the in-laws for the holiday's,
so I had some fun with the "paint" program...
This set up has little to no MBC spike, holds very strong to redline & works very well; however, in factory boost mode the MBC seems to be either leaking or the setup needs to be reworked... I am usually maxxed st 0.075 mpa. No biggy though... one flick of the switch & BAM!!! 0.1025 mpa in 4th gear.
**this setup is NOT recomended if you have a factory uppipe w/catalytic converter**

Attached Thumbnails

Dual Boost Control setup-dual-boost-control-lq.jpg

Last edited by GLwagon; 11-24-2002 at 02:54 PM.

11-23-2002, 08:55 AM

GLwagon

Guest

Posts: n/a

boy that pic looks like poo... darn it...

11-23-2002, 09:50 AM

bamfwrx

Registered User

Join Date: Nov 2002

Location: South Carolina

Posts: 221

Car Info: 02 WRX

The things that inlaws drive you to

11-24-2002, 09:20 AM

GLwagon

Guest

Posts: n/a

Here are some of the part numbers for a dual boost controller

Ingersoll-Rand / ARO #P251SS-012-D <---Mfg. part number

Grainger's part number #6JJ52 price $20.27
http://www.grainger.com/Grainger/wwg/homepage.jsp
(sorry they don't sell to consumers)

Some of the Factory parts if ever needed...
-Tiny brass "orfice" in the hose #22326KA120
-Lower "grey" hose #09535A100
-black 1/8" restrictor #22314KA040 <--- this is the one people loose with the 3/16"mod
-steel spring hose clamps #805908070 for one clamp.

Last edited by GLwagon; 01-19-2003 at 11:13 AM.

11-24-2002, 02:15 PM

collin

Guest

Posts: n/a

that seems like a good, cheap setup.
why the warning about stock uppipe?

11-24-2002, 02:43 PM

GLwagon

Guest

Posts: n/a

If people get too happy with a MBC the first cat has been reported to melt or breakup into the turbo & destroy it...

11-24-2002, 05:14 PM

Impreziv

Guest

Posts: n/a

Quote:

Originally posted by GLwagon
If people get too happy with a MBC the first cat has been reported to melt or breakup into the turbo & destroy it...

I would recommend a catless up pipe regardless of how crazy you wanna get, because as GLwagon stated, if the precat breaks up and the turbo sucks it in, your gonna be pretty pissed.

Pete

11-24-2002, 06:18 PM

Lobster Man

Guest

Posts: n/a

Quote:

Originally posted by IMPREZIV
I would recommend a catless up pipe regardless of how crazy you wanna get, because as GLwagon stated, if the precat breaks up and the turbo sucks it in, your gonna be pretty pissed.

Pete

I didn't know you had boost Pete.

01-19-2003, 11:07 AM

GLwagon

Guest

Posts: n/a

Update Dual Boost Controller

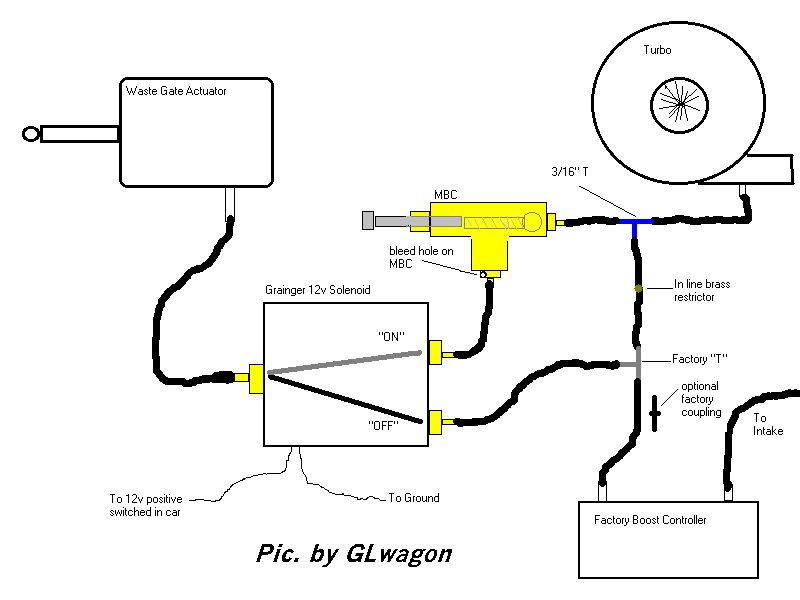

I'm sure this isn't new, but I finally got sick of my existing setup on my dual boost control maxxing at .075mpa so I re-drew this & will be testing it soon...
I'm fearing that I may get some increased spiking in MBC mode, but I'll have to see...

Attached Thumbnails

Dual Boost Control setup-dual-boost-v2.jpg

Last edited by GLwagon; 01-19-2003 at 11:16 AM.

01-19-2003, 11:21 AM

#10

GLwagon

Guest

Posts: n/a

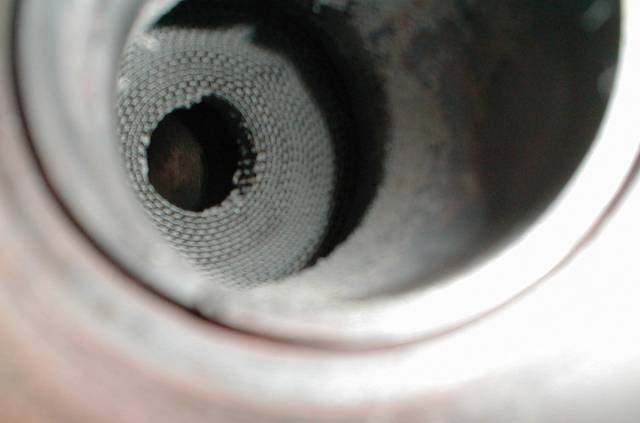

Here is a pic. I found a while ago...
I cant take credit it's not mine, but this did destroy the turbo from the story I heard...

01-19-2003, 11:22 AM

#11

GLwagon

Guest

Posts: n/a

here it is...

Attached Thumbnails

Dual Boost Control setup-brokencat20k.jpg

02-26-2003, 05:24 PM

#12

GLwagon

Guest

Posts: n/a

This second setup works well, the factory boost controller can waver some times, but is minimal.

04-08-2003, 05:12 PM

#13

GLwagon

Guest

Posts: n/a

Update !!!
In the second picture, I rotated the "Factory T" so it is a strait shot between the "Grainger solenoid" & "in line brass restrictor"...

The leg of the "T" should go towards the "Factory boost controller"

Note: try to keep extra hoses as short as posible with out kinking.
It is working better than ever...
