Ongoing Projects Want to share your ongoing Subaru project with the rest of Subaru Community? Tell us what you did, how you did it and what else are you going to do.

Project Bugeye stroker

Thread Tools

Search this Thread

Old 03-13-2016, 07:44 PM
  #1
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Project Bugeye stroker
Name: IMG_1112.jpg Views: 316 Size: 179.7 KB
Update
Name: IMG_2119.jpg Views: 282 Size: 179.1 KB
Name: IMG_2127_2.jpg Views: 221 Size: 153.5 KB
2nd block
manley piston 92.5
h-tuff rods manley
sti crank
king bearings
arp head bolts
assembled by Adam@aamotorworks

heads
s20 head port and polish
sti cams .
manley spring and titanium retainers
supertech nitraded intake and inconel exhaust
gsc valve stem seal

v9 6speed with mapdccd
act 6puck
fp green htz turbo
engine tranny mount and shifter bushing
borla exhaust
grimspeed ebc
grimmspeed upipe
gruppe-s uel headers
ks tech 73mm
perrin fuel rail
perrin turbo inlet
perrin crank pulley
dw300
turbo smart dual port bov
ets fmic
Attached Thumbnails Project Bugeye stroker-img_2561.png
Last edited by lugnuts; 04-05-2018 at 01:55 AM. Reason: update
lugnuts is offline
Reply
Old 04-25-2016, 11:58 PM
  #2
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
sti rods
Name: IMG_1350.jpg Views: 226 Size: 198.2 KB
arp rod bolts
Name: IMG_1349.jpg Views: 221 Size: 174.3 KB
lugnuts is offline
Reply
Old 04-26-2016, 10:49 AM
  #3
Call me Pebbles
iTrader: (11)

Rev. Rob Large's Avatar

Join Date: Nov 2011
Location: I do all my own physics.
Posts: 5,908
Car Info: Moist
Those headlights.



Why a stroker and not a 2.5 swap?
Rev. Rob Large is offline
Reply
Old 04-26-2016, 11:20 AM
  #4
VIP Member
iTrader: (24)

de_engineered's Avatar

Join Date: Sep 2012
Location: San Jose
Posts: 1,642
Car Info: 2000 Legacy GT, 2000 Echo 1989 Camry All-Trac
Originally Posted by Rev. Rob Large
Why a stroker and not a 2.5 swap?
I'm curious too, inasmuch as I've considered it (better spool, still decent mileage). Know a lot of folks just go 2.5 or bigger if they're gonna stroke anything.
de_engineered is offline
Reply
Old 04-26-2016, 11:17 PM
  #5
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Why a stroker and not a 2.5 swap?[/QUOTE]

I'm not shooting for big power and I'm never fan of hybrid set up.
this how the old block look like.

Name: IMG_1212.jpg Views: 217 Size: 90.1 KB
lugnuts is offline
Reply
Old 04-26-2016, 11:29 PM
  #6
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Done with the v9 sti 6 speed swap .
Name: IMG_1374.jpg Views: 206 Size: 117.8 KB
and this is how a JDM shifter looks like . lol , i guess it got damaged from shipping. took me 2 hours just to straighten up the shifter .Vendor is giving me a free brand new shift ****..
lugnuts is offline
Reply
Old 04-28-2016, 12:55 AM
  #7
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
I'm not using the sleeved block anymore .main journal need to get align hone. got another block from Robs auto machine shop at Hayward . He did all the machining , clearance and assembly. updated (rod bearings spun. its possible from the grind crank )

Name: IMG_1357.jpg Views: 223 Size: 131.0 KB
Name: IMG_1356.jpg Views: 223 Size: 234.1 KB
Last edited by lugnuts; 04-05-2018 at 01:57 AM.
lugnuts is offline
Reply
Old 05-05-2016, 08:13 PM
  #8
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
got my shift **** today.
lugnuts is offline
Reply
Old 05-08-2016, 03:44 PM
  #9
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Ordered mapdccd controller for the 6 speed tranny.
lugnuts is offline
Reply
Old 05-12-2016, 09:41 PM
  #10
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
installed new dowel pins and arp head studs

Name: IMG_1399.jpg Views: 229 Size: 141.1 KB
lugnuts is offline
Reply
Old 05-14-2016, 01:04 PM
  #11
9 to 5 mod
iTrader: (6)

sigma pi's Avatar

Join Date: Jan 2003
Location: Chavez Ravine
Posts: 57,386
Car Info: 03 Impreza WRX
Nice!
sigma pi is offline
Reply
Old 05-14-2016, 06:57 PM
  #12
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
Originally Posted by sigma pi
Nice!
thanks
lugnuts is offline
Reply
Old 05-16-2016, 09:09 PM
  #13
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
got this today. Ill try to install it tomorrow.
Name: IMG_1404.jpg Views: 221 Size: 137.1 KB
lugnuts is offline
Reply
Old 05-17-2016, 09:46 PM
  #14
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx

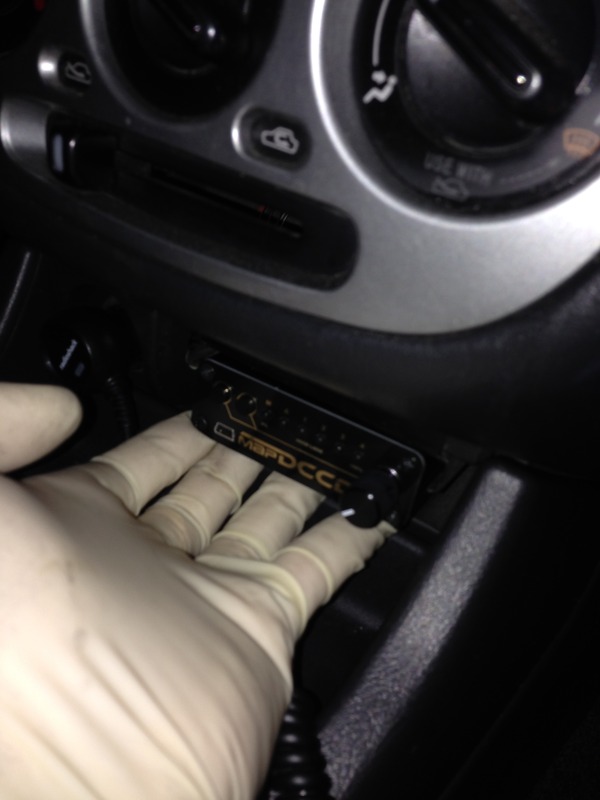

Got the maddccd installed
dccd wire from transmission
Name: IMG_1418.jpg Views: 214 Size: 258.1 KB
I used 3m quick splice with double blade for better connection.
Name: IMG_1408.jpg Views: 220 Size: 111.1 KB
Name: IMG_1407.jpg Views: 210 Size: 79.5 KB
Name: IMG_1406.jpg Views: 210 Size: 132.8 KB
i made a pin diagram for mapdccd . 02-03 wrx.
Name: IMG_1417.jpg Views: 274 Size: 208.1 KB
lugnuts is offline
Reply
Old 05-17-2016, 09:51 PM
  #15
Registered User
Thread Starter
iTrader: (4)

lugnuts's Avatar

Join Date: Jul 2014
Location: san jose
Posts: 128
Car Info: 2002 wrx
fp green htz . thanks to perterislazy
Name: IMG_1420.jpg Views: 220 Size: 113.5 KB
fp green and pe1818 comparison.
Name: IMG_1419.jpg Views: 261 Size: 107.3 KB
